Product Description
Specifications
Manufacturer: Advantech Co., Ltd
Manufacturer Part Number: EKI-7710E-2CPI-AE
Manufacturer Website Address: http://www.advantech.com
Brand Name: Advantech

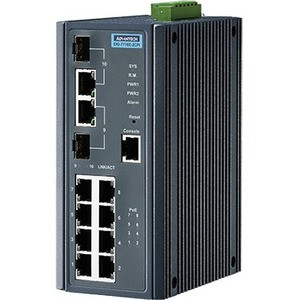

Product Model: EKI-7710E-2CPI
Product Name: Ethernet Device, 8FE + 2G Combo Managed POE+ Switch w/Wide Temp
Marketing Information: The EKI-7710E-2CP/2CPI support 8 PoE ports and 2 Gigabit combo ports. They can provide up to 30 W per port for high-power-consumption powered devices. They also features Advantech's IXM function, which can benefit users with fast deployment and can save considerably on engineering time and cost. The series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, they are equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms, thus ensuring network stability.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 8
Uplink Port: No
Modular: Yes
Stack Port: No
Port/Expansion Slot Details:
Media & Performance
Media Type Supported:
Ethernet Technology:
Network Technology:
I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP (mini-GBIC)
Shared SFP Slot: Yes
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Physical Characteristics
Form Factor: DIN Rail Mountable
Height: 6"
Width: 2.9"
Depth: 4.1"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
Manufacturer: Advantech Co., Ltd
Manufacturer Part Number: EKI-7710E-2CPI-AE
Manufacturer Website Address: http://www.advantech.com
Brand Name: Advantech
Product Model: EKI-7710E-2CPI
Product Name: Ethernet Device, 8FE + 2G Combo Managed POE+ Switch w/Wide Temp
Marketing Information: The EKI-7710E-2CP/2CPI support 8 PoE ports and 2 Gigabit combo ports. They can provide up to 30 W per port for high-power-consumption powered devices. They also features Advantech's IXM function, which can benefit users with fast deployment and can save considerably on engineering time and cost. The series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, they are equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms, thus ensuring network stability.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 8
Uplink Port: No
Modular: Yes
Stack Port: No
Port/Expansion Slot Details:
- 8 x Fast Ethernet Network
- 2 x Gigabit Ethernet Network
- 2 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Ethernet Technology:
- Fast Ethernet
- Gigabit Ethernet
Network Technology:
- 10/100Base-TX
- 1000Base-X
- 1000Base-T
I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP (mini-GBIC)
Shared SFP Slot: Yes
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Physical Characteristics
Form Factor: DIN Rail Mountable
Height: 6"
Width: 2.9"
Depth: 4.1"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
