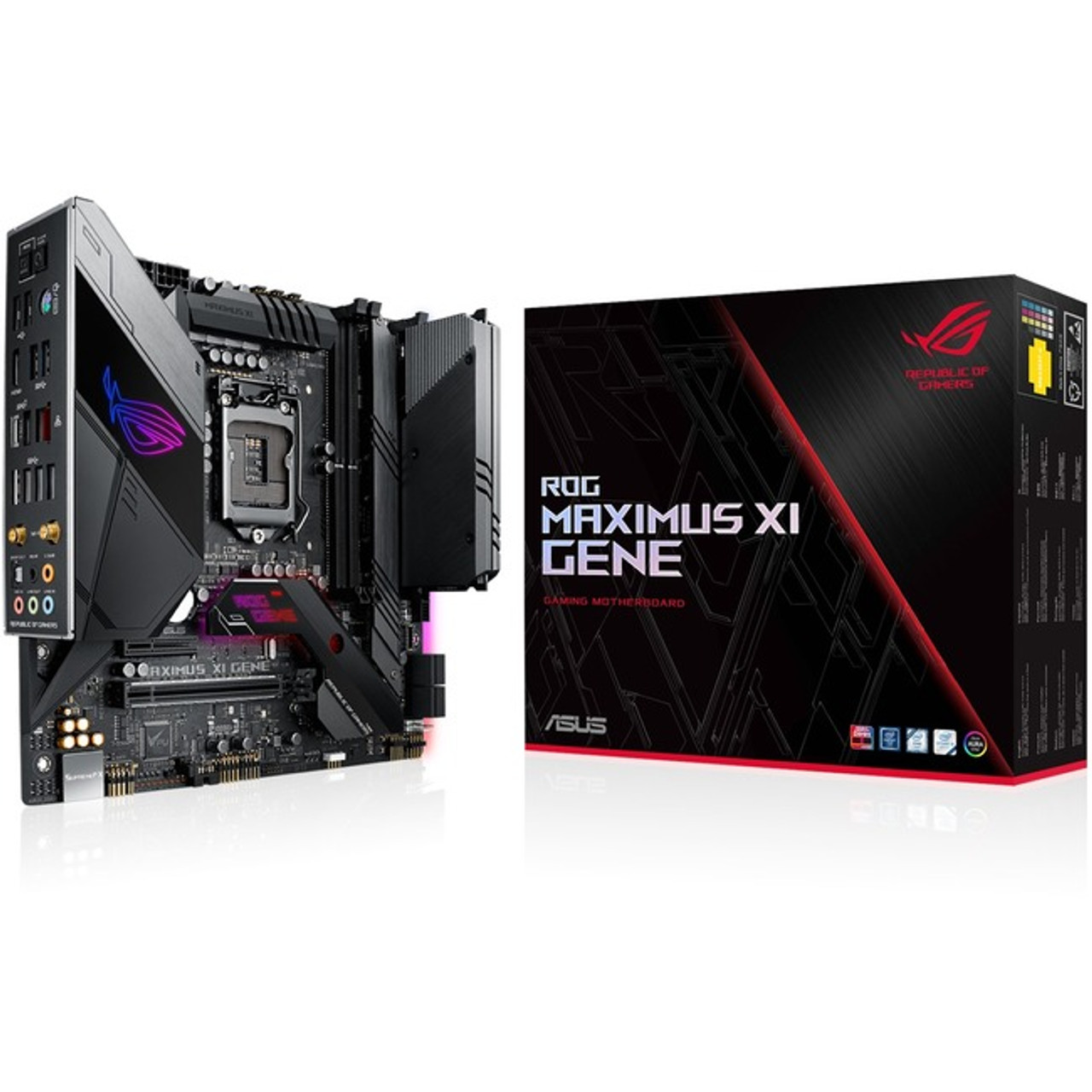

Asus ROG MAXIMUS XI GENE Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 - 90MB10E0-M0AAY0

Specifications
Manufacturer: ASUS Computer International
Manufacturer Part Number: 90MB10E0-M0AAY0
Manufacturer Website Address: http://usa.asus.com
Brand Name: Asus ROG
Product Model: MAXIMUS XI GENE
Product Name: MAXIMUS XI GENE Desktop Motherboard
Marketing Information:

Intel Z390 mATX gaming motherboard with 802.11ac Wi-Fi, double-capacity DIMM support, ROG DIMM.2 dual M.2 expansion card, Aura Sync RGB LED, DDR4 4800MHz, four M.2, SATA 6Gbps, HDMI and USB 3.1 Gen 2

• LGA1151 socket: Ready for 9th/8th Generation Intel® Core™ desktop processors.
• Double-capacity DIMM: Optimized memory trace layout for dual 32GB DIMM support.
• Perfected cooling: Dedicated water-cooling zones, M.2 heatsink and flexible fan controls.
• ROG DIMM.2: Vertically-installed dual-M.2 expansion card with heatsink for maximum cooling and performance.
• Overclocker's toolkit: Hardware-level controls to aid with subzero overclocking.
• 5-Way Optimization: Automated system-wide tuning, providing AI overclocking and cooling profiles tailor-made for your rig.
• Gaming connectivity: Intel Gigabit Ethernet, four M.2, USB 3.1 Gen 2, and CNVi 2x2 802.11ac Intel integrated Wi-Fi with MU-MIMO support for lightning-fast data transfers.
• Gaming audio: High-fidelity sonics that draw you deeper into the action, with SupremeFX and Sonic Studio III.
• Synchronized RGB lighting technology: Works with a vast portfolio of Aura Sync-capable PC gear and includes support for Philips Hue.
• Gaming durability: ASUS SafeSlot, patented pre-mounted I/O shield and premium components for maximum durability

Unleash your inner power

The long wait for the ultimate small form factor motherboard is over. With Maximus XI Gene, We completely rethought our approach to mATX and created a board with support for extreme overclocking, double-capacity DIMMs and next-generation storage that delivers revolutionary performance rivaling high-end ATX systems. Maximus XI Gene is crafted to be a natural fit for showcase PC builds for gaming and style-conscious enthusiasts - where pure adrenaline meets pure style through the best performance.

THRILLING PERFORMANCE

With industry-first support for double-capacity DDR4 memory, comprehensive cooling and four M.2 slots for unthrottled SSD RAID storage, Maximus XI Gene lets you maximize the power of your SFF rig to achieve the performance of high-end ATX systems in a much more compact package.

CONTROL YOUR RIG

ROG provides the best firmware and utilities to give you complete control of your system. With powerful overclocking via the acclaimed UEFI BIOS or automatic 5-Way Optimization, audio profile tweaking and intuitive tools to optimize storage and networking performance, Maximus XI Gene comes with everything you need to customize your experience exactly how you want.

PERSONALIZED FOR YOU

ROG works extensively with industry partners and performs extensive testing to ensure Maximus XI Gene provides seamless compatibility with a wide range of graphics cards, DRAM modules, coolers, cases and other components and peripherals. Together with AURA RGB lighting that synchronizes with a vast ecosystem of compatible products, Maximus XI Gene is primed for endless personalization.

THE POWER OF INTEL

Ready for Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors

This motherboard supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.

Product Type: Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported:

• Core i3
• Core i5
• Core i7
• Core i9
• Celeron
• Pentium Gold

Memory
Number of Memory Slots: 2
Memory Form Factor:

• DIMM
• UDIMM

Maximum Memory: 64 GB
Memory Speed Supported:

• 4.80 GHz (O.C.)
• 4.70 GHz (O.C.)
• 4.60 GHz (O.C.)
• 4.50 GHz (O.C.)
• 4.40 GHz (O.C.)
• 4.27 GHz (O.C.)
• 4.13 GHz (O.C.)
• 4 GHz (O.C.)
• 3.87 GHz (O.C.)
• 3.60 GHz (O.C.)
• 3.47 GHz (O.C.)
• 3.40 GHz (O.C.)
• 3.33 GHz (O.C.)
• 3.30 GHz (O.C.)
• 3.20 GHz (O.C.)
• 3 GHz (O.C.)
• 2.93 GHz (O.C.)
• 2.80 GHz (O.C.)
• 2.67 GHz
• 2.40 GHz (O.C.)
• 2.13 GHz (O.C.)

Memory Technology: DDR4 SDRAM
Intel Optane Memory Ready: Yes
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 0
• 1
• 5
• 10

Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11a/b/g/n/ac
I/O Expansions
Number of Total Expansion Slots: 2
Total Number of PCI Express Slots: 2
Number of PCI Express x4 Slots: 1
Number of PCI Express x16 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 12
Number of USB 2.0 Ports: 2
Number of USB 3.1 Ports: 10
S/PDIF: Yes
HDMI: Yes
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.1 Ports: 3
Physical Characteristics
Form Factor: Micro ATX
Width: 9.6"
Depth: 8.9"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
