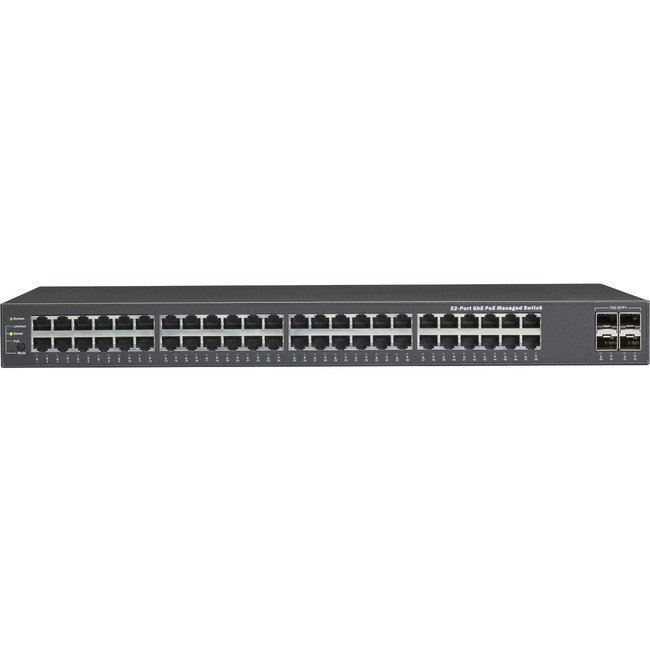

Black Box - Gigabit PoE+ Managed Ethernet Switch - 52-Port - LPB2952A

Specifications
Manufacturer: Black Box Corporation
Manufacturer Part Number: LPB2952A
Manufacturer Website Address: http://www.blackbox.com
Brand Name: Black Box
Product Name: Gigabit PoE+ Managed Ethernet Switch - 52-Port
Marketing Information:

The Gigabit Ethernet Managed Switch adds 10 high-speed ports-including two dual-media ports-while offering the management and security features your enterprise network needs.

Provides (48) 10/100/1000BASE-T UTP ports, (4) 1G/10G SFP+ ports. Provides up to 370 Watts of power for POE applications.

Fully manageable
The switch is fully managed, supporting SNMP version 1, 2c, and 3. The embedded RMON software agents support RMON groups 1 (history), 2 (statistics), 3 (alarms), and 9 (events).

The integral Web server enables Web-based management via Web browser. This GUI interface enables switch configuration, system dashboard, maintenance, and monitoring.

The wide range of management and support features also includes dual image, port mirroring, LLDP, sFlow®, UPnP®, IPv6, SSH, RADIUS, DHCP Client/DHCPv6 Client, SNTP, cable diagnostics, ping, syslog, and Telnet client with SSH security.

Support for VLAN and QoS
Support for up to four simultaneous VLANs enables you to segment traffic with port-based, 802.1Q tag-based, or MAC-based VLANs. VoIP traffic is automatically assigned to a voice-specific VLAN to maintain quality. 802.1p Layer 2 quality of service (QoS) enables prioritization of time-sensitive applications such as VoIP and video.

Secure
You get enterprise-class security features, too. 802.1X port-based network access control authenticates devices connecting to your network. The switch also supports SNMPv3 cryptographic security, SSH, and SSL. Plus, you can set up a guest VLAN that enables visitors to access the Internet without also giving them access to the corporate network.

Green
The PoE+ Gigabit Managed Switch Eco features IEEE 802.3az energy-efficient Ethernet, which scales down power consumption during periods of low data activity. This feature adds up to energy savings of up to 50%.

Cable length detection adjusts signal strength to the cable length, reducing power consumption on shorter cable runs.

Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 48
Modular: Yes
Port/Expansion Slot Details:

• 48 x Gigabit Ethernet Network
• 4 x 10 Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Ethernet Technology:

• Gigabit Ethernet
• 10 Gigabit Ethernet

Network Technology:

• 10GBase-X
• 10/100/1000Base-T

I/O Expansions
Number of Total Expansion Slots: 4
Expansion Slot Type: SFP+
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 5.5"
Width: 18.6"
Length: 21"
Weight (Approximate): 12.76 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:

• RoHS
• WEEE

Country of Origin: Taiwan
TAA Compliant: Yes
