Product Description
Specifications
Manufacturer: Zhejiang Dahua Technology Co., Ltd.
Manufacturer Part Number: DH-IPC-HCBW8442N
Manufacturer Website Address: http://www.dahuasecurity.com
Brand Name: Dahua
Product Line: Special
Product Model: DH-IPC-HCBW8442N

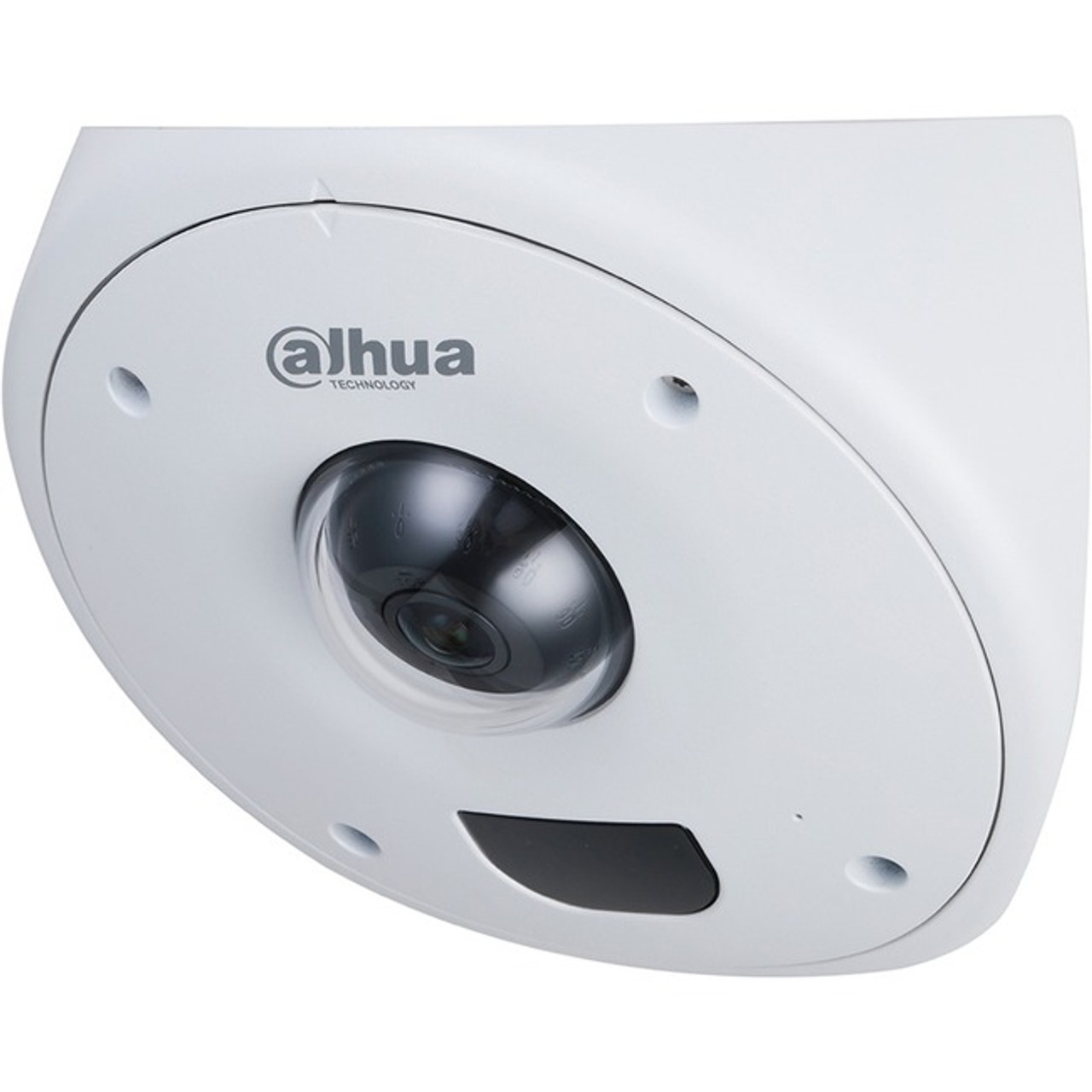

Product Name: 4MP WDR IR Corner Network Camera
Marketing Information: With advanced H.265 encoding technology, Dahua corner network camera has efficient encoding capacity, which helps to save bandwidth and storage space. The camera adopts starlight technology, intelligent IR technology, and intelligent image analysis technology; and has waterproof function, dust-proof function and vandal-proof function, complying to the standards of IP67 and IK10+50J.
Functions
Smart ( H.265+ & H.264+ )
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Starlight
Dahua Starlight technology mainly applies to the environment of low illuminance, and it can provide clear colorful video. Even in the environment of ultra-low illuminance, the technology can guarantee the good image effect.
Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.
Distortion Correction
With advanced distortion correction algorithm, Dahua Distortion Correction corrects the image distortion in both horizontal and vertical directions to be consistent with the actual situation.
Invisible IR LED Illuminator ( 940 nm )
With 940 nm IR LED, the IR LED Illuminator of the camera is invisible to naked eyes.
Protection (IP67, IK10, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes.
IK10: The enclosure passes strict vandal-proof test, and it can stand the punch of 50J impact energy.
Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Product Type: Network Camera
Technical Information
HD Recording: Yes
Night Vision Distance: 32.81 ft
Number of IR LEDs: 2
Display & Graphics
Image Sensor Type: CMOS
Color Supported: Color
Effective Camera Resolution: 4 Megapixel
Video
Video Formats:
Maximum Video Resolution: 2688 x 1520
Lens
Maximum Focal Length: 2.50 mm
Network & Communication
Connectivity Technology: Cable
Remote Management: Yes
Interfaces/Ports
Network (RJ-45): Yes
Physical Characteristics
Placement: Corner Mount
Height: 4.1"
Width: 8.3"
Length: 8.2"
Weight (Approximate): 3.01 lb
Manufacturer: Zhejiang Dahua Technology Co., Ltd.
Manufacturer Part Number: DH-IPC-HCBW8442N
Manufacturer Website Address: http://www.dahuasecurity.com
Brand Name: Dahua
Product Line: Special
Product Model: DH-IPC-HCBW8442N
Product Name: 4MP WDR IR Corner Network Camera
Marketing Information: With advanced H.265 encoding technology, Dahua corner network camera has efficient encoding capacity, which helps to save bandwidth and storage space. The camera adopts starlight technology, intelligent IR technology, and intelligent image analysis technology; and has waterproof function, dust-proof function and vandal-proof function, complying to the standards of IP67 and IK10+50J.
Functions
Smart ( H.265+ & H.264+ )
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Starlight
Dahua Starlight technology mainly applies to the environment of low illuminance, and it can provide clear colorful video. Even in the environment of ultra-low illuminance, the technology can guarantee the good image effect.
Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.
Distortion Correction
With advanced distortion correction algorithm, Dahua Distortion Correction corrects the image distortion in both horizontal and vertical directions to be consistent with the actual situation.
Invisible IR LED Illuminator ( 940 nm )
With 940 nm IR LED, the IR LED Illuminator of the camera is invisible to naked eyes.
Protection (IP67, IK10, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes.
IK10: The enclosure passes strict vandal-proof test, and it can stand the punch of 50J impact energy.
Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Product Type: Network Camera
Technical Information
HD Recording: Yes
Night Vision Distance: 32.81 ft
Number of IR LEDs: 2
Display & Graphics
Image Sensor Type: CMOS
Color Supported: Color
Effective Camera Resolution: 4 Megapixel
Video
Video Formats:
- H.265
- H.264
- H.264H
- H.264B
- Motion JPEG
- H.265+
- H.264+
Maximum Video Resolution: 2688 x 1520
Lens
Maximum Focal Length: 2.50 mm
Network & Communication
Connectivity Technology: Cable
Remote Management: Yes
Interfaces/Ports
Network (RJ-45): Yes
Physical Characteristics
Placement: Corner Mount
Height: 4.1"
Width: 8.3"
Length: 8.2"
Weight (Approximate): 3.01 lb
