Product Description
Specifications
Manufacturer: GIGABYTE Technology, Inc
Manufacturer Part Number: MZ32-AR0
Manufacturer Website Address: http://www.gigabyte.us
Brand Name: Gigabyte
Product Model: MZ32-AR0

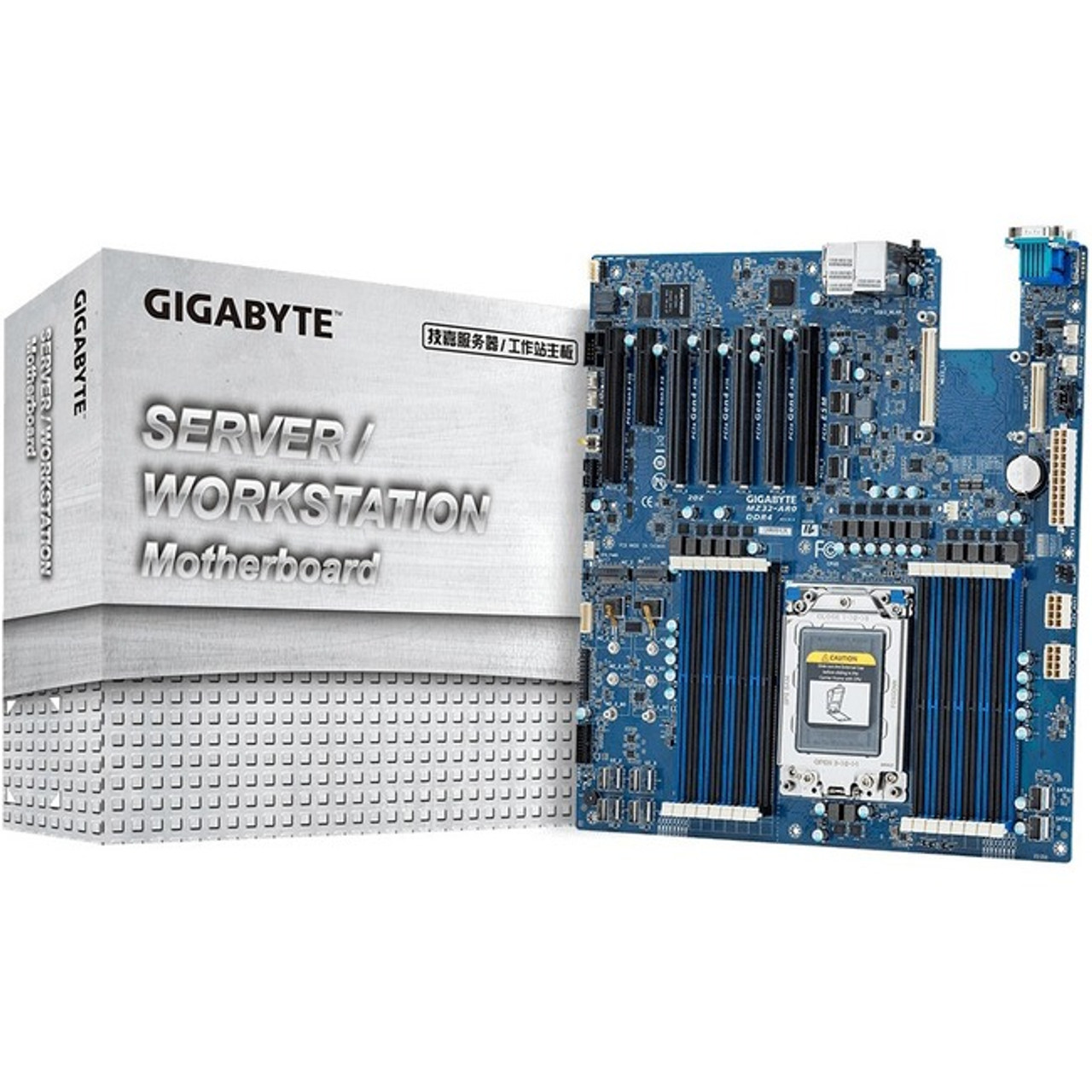

Product Name: MZ32-AR0 (Rev. 1.0) Server Motherboard
Product Type: Server Motherboard
Processor & Chipset
Chipset Manufacturer: AMD
Total Processor Supported: 1
Processor Socket: Socket SP3
Processor Supported: EPYC
Memory
Number of Memory Slots: 16
Memory Form Factor:
Maximum Memory: 128 GB
Memory Speed Supported:
Memory Technology: DDR4 SDRAM
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: No
Video
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2500
Audio
Audio Channels: No
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 7
Total Number of PCI Express Slots: 7
Number of PCI Express x8 Slots: 1
Number of PCI Express x16 Slots: 6
Interfaces/Ports
Total Number of USB Ports: 3
Number of USB 3.0 Ports: 3
VGA: Yes
Number of Network (RJ-45) Ports: 3
Onboard Interfaces
Number of SATA Interfaces: 8
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 4
Number of Onboard USB 2.0 Ports: 2
Number of Onboard USB 3.0 Ports: 2
Number of NVMe Ports: 4
Physical Characteristics
Form Factor: Extended ATX
Width: 12"
Depth: 13"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
Country of Origin: Taiwan
Manufacturer: GIGABYTE Technology, Inc
Manufacturer Part Number: MZ32-AR0
Manufacturer Website Address: http://www.gigabyte.us
Brand Name: Gigabyte
Product Model: MZ32-AR0
Product Name: MZ32-AR0 (Rev. 1.0) Server Motherboard
Product Type: Server Motherboard
Processor & Chipset
Chipset Manufacturer: AMD
Total Processor Supported: 1
Processor Socket: Socket SP3
Processor Supported: EPYC
Memory
Number of Memory Slots: 16
Memory Form Factor:
- RDIMM
- LRDIMM
- DIMM
Maximum Memory: 128 GB
Memory Speed Supported:
- 3.20 GHz
- 2.93 GHz
Memory Technology: DDR4 SDRAM
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: No
Video
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2500
Audio
Audio Channels: No
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 7
Total Number of PCI Express Slots: 7
Number of PCI Express x8 Slots: 1
Number of PCI Express x16 Slots: 6
Interfaces/Ports
Total Number of USB Ports: 3
Number of USB 3.0 Ports: 3
VGA: Yes
Number of Network (RJ-45) Ports: 3
Onboard Interfaces
Number of SATA Interfaces: 8
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 4
Number of Onboard USB 2.0 Ports: 2
Number of Onboard USB 3.0 Ports: 2
Number of NVMe Ports: 4
Physical Characteristics
Form Factor: Extended ATX
Width: 12"
Depth: 13"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
- China RoHS
- WEEE
- RoHS
Country of Origin: Taiwan
