Product Description
Specifications
Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 7159C2X
Manufacturer Website Address: http://www.lenovo.com/us/en/
Brand Name: Lenovo
Product Model: 7159-HD6

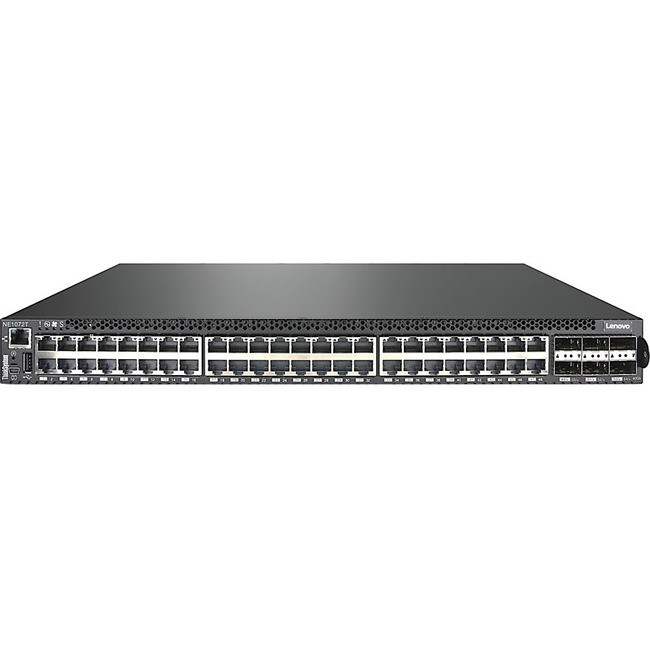

Product Name: ThinkSystem NE1072T RackSwitch (Front to Rear)
Marketing Information: The Lenovo ThinkSystem NE1072T RackSwitch that uses 10GBASE-T and 40 Gb QSFP+ Ethernet technology is specifically designed for the data center. It is ideal for today's big data, cloud, and enterprise workload solutions. It is an enterprise class Layer 2 and Layer 3 full featured switch that delivers line-rate, high-bandwidth switching, filtering, and traffic queuing without delaying data. Large data center-grade buffers help keep traffic moving, while the hot-swap redundant power supplies and fans (along with numerous high-availability features) help provide high availability for business sensitive traffic.
The NE1072T RackSwitch has 48x 1/10 Gb Ethernet (RJ-45) fixed ports and 6x QSFP+ ports that support 40 GbE optical transceivers, active optical cables (AOCs), and direct attach copper (DAC) cables. The QSFP+ ports can also be split out into four 10 GbE ports by using QSFP+ to 4x SFP+ DAC or active optical breakout cables.
The switch is ideal for latency sensitive applications, such as high-performance computing clusters and financial applications.
Product Type: Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports: 48
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details:
Media & Performance
Media Type Supported:
Ethernet Technology:
Network Technology:
I/O Expansions
Number of Total Expansion Slots: 6
Expansion Slot Type: QSFP+
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7"
Width: 17.4"
Depth: 19.2"
Weight (Approximate): 25.35 lb
Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 7159C2X
Manufacturer Website Address: http://www.lenovo.com/us/en/
Brand Name: Lenovo
Product Model: 7159-HD6
Product Name: ThinkSystem NE1072T RackSwitch (Front to Rear)
Marketing Information: The Lenovo ThinkSystem NE1072T RackSwitch that uses 10GBASE-T and 40 Gb QSFP+ Ethernet technology is specifically designed for the data center. It is ideal for today's big data, cloud, and enterprise workload solutions. It is an enterprise class Layer 2 and Layer 3 full featured switch that delivers line-rate, high-bandwidth switching, filtering, and traffic queuing without delaying data. Large data center-grade buffers help keep traffic moving, while the hot-swap redundant power supplies and fans (along with numerous high-availability features) help provide high availability for business sensitive traffic.
The NE1072T RackSwitch has 48x 1/10 Gb Ethernet (RJ-45) fixed ports and 6x QSFP+ ports that support 40 GbE optical transceivers, active optical cables (AOCs), and direct attach copper (DAC) cables. The QSFP+ ports can also be split out into four 10 GbE ports by using QSFP+ to 4x SFP+ DAC or active optical breakout cables.
The switch is ideal for latency sensitive applications, such as high-performance computing clusters and financial applications.
Product Type: Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports: 48
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details:
- 48 x 10 Gigabit Ethernet Network
- 6 x 40 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Ethernet Technology:
- 40 Gigabit Ethernet
- 10 Gigabit Ethernet
Network Technology:
- 40GBase-X
- 10GBase-T
I/O Expansions
Number of Total Expansion Slots: 6
Expansion Slot Type: QSFP+
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7"
Width: 17.4"
Depth: 19.2"
Weight (Approximate): 25.35 lb
