Product Description
Manufacturer: Legrand Group
Manufacturer Part Number: SNE24H-2442-A1
Manufacturer Website Address: http://www.legrand.us
Brand Name: Middle Atlantic
Product Series: SNE
Product Model: SNE24H-2442-A1

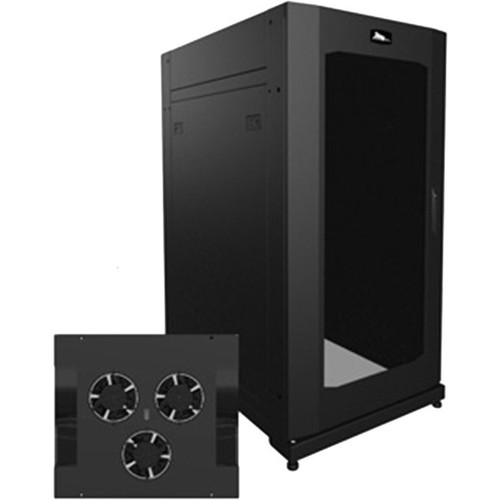

Product Name: SNE Series Rack, SNE24H-2442-A1
Marketing Information:
The SNE Series Hybrid is configured for hybrid security systems consisting of a mix of analog and digital equipment and cabling. Accommodates small devices including encoders, power supplies and access control systems on the patented Zero-U Tool-Free Lever Lock™ system. Fully configured Security Network Enclosure w/active ventilation for equipment rooms o 70% open area vented front door o Pair of split flush mount locking side panels o (2) vertical 10" wide Lever Lock™ accessory mounting plate o (1) 6" wide vertical wire grid lace o 24" width o 42" overall depth o 24 rackspace o 2 pair of tapped 10-32 adjustable rail o 4 space cage-nut adapter (pair) SNE Series Hybrid with Top Active Ventilation Fan top with proportional speed thermostatic control provides 660 CFM ventilation Solid split door
- Lever Lock™ compatible
- UTL/ETL listed and seismic certified
- Includes 2 vertical 10" wide Lever Lock accessory mounting plates
- Configured for top active ventilation
- Includes 660 CFM fan top with proportional thermostatic controller
- Includes 70% open front door and solid split rear door
- Includes one piece of 6" wide vertical wire grid lace
- Includes pair of split flush mount locking side panels
- Includes 2 pair of adjustable 10-32 tapped rackrail
- Includes four-space cage-nut adaptor (pair)
- Includes 4 leveling feet
- Includes 4 casters
Product Type: Rack Cabinet
Technical Information
Application/Usage:
- Patch Panel
- LAN Switch
- Server
Physical Characteristics
Form Factor: Floor Standing
Color: Black Powder Coat
Material:
- Steel
- Steel Rail
Dynamic/Rolling Weight Capacity: 1600 lb
Static/Stationary Weight Capacity: 12000 lb
Height: 48"
Width: 24"
Depth: 43.2"
Rack Height: 24U
Rack Width: 19"
Rack Depth: 38.48"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
- RoHS
- LEED
- ECO PASSPORT
- GREENGUARD Gold
