Product Description
Specifications
Manufacturer: Legrand Group
Manufacturer Part Number: PX3-5530V
Manufacturer Website Address: http://www.legrand.us
Brand Name: Raritan
Product Line: Dominion
Product Series: PX3
Product Model: PX3-5530V

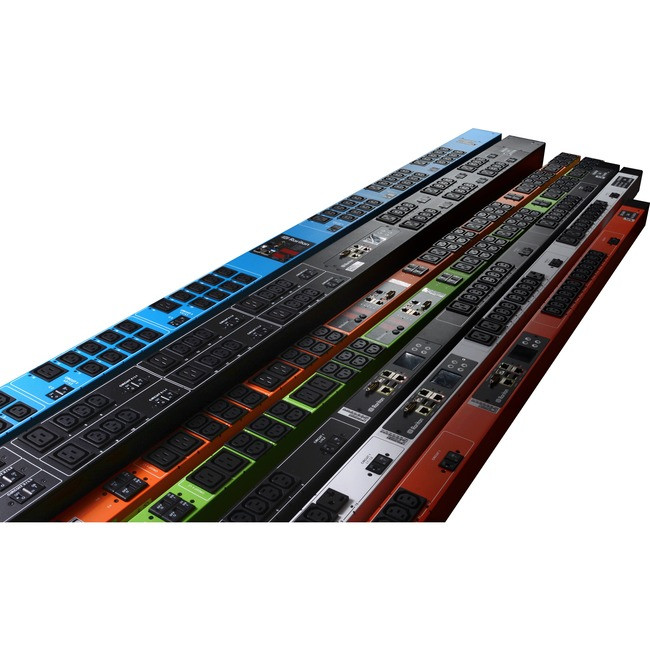

Product Name: Dominion PX3-5530V 24-Outlets PDU
Marketing Information: Rack Power Distribution Units (PDUs)
Product Type: PDU
Technical Information
Input Receptacles: IEC 60309 3P+N+E
Output Receptacles:
Protection Type: Overload Protection
Power Description
Input Voltage Range: 400 V AC
Output Voltage: 230 V AC
Power Rating (VA): 23 kVA
Input Current: 32 A
Interfaces/Ports
Network (RJ-45): Yes
Physical Characteristics
Placement: Rack
Rack Height: 0U
Height: 70.1"
Width: 2.1"
Depth: 2.6"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
Manufacturer: Legrand Group
Manufacturer Part Number: PX3-5530V
Manufacturer Website Address: http://www.legrand.us
Brand Name: Raritan
Product Line: Dominion
Product Series: PX3
Product Model: PX3-5530V
Product Name: Dominion PX3-5530V 24-Outlets PDU
Marketing Information: Rack Power Distribution Units (PDUs)
The Raritan PX family of high-quality, intelligent rack power distribution units (iPDUs) offers real-time remote power monitoring of current (amps), voltage, power (kVA, kW) and energy consumption (kWh) with +/- 1% billing-grade accuracy, even at individual outlets.
The PX series offers hundreds of models to meet all your data center applications, including models with remote outlet switching, individual outlet metering, high-power for blade servers and high-density applications, and 400V power distribution.
Product Type: PDU
Technical Information
Input Receptacles: IEC 60309 3P+N+E
Output Receptacles:
- 3 x IEC 60320 C19
- 21 x IEC 60320 C13
Protection Type: Overload Protection
Power Description
Input Voltage Range: 400 V AC
Output Voltage: 230 V AC
Power Rating (VA): 23 kVA
Input Current: 32 A
Interfaces/Ports
Network (RJ-45): Yes
Physical Characteristics
Placement: Rack
Rack Height: 0U
Height: 70.1"
Width: 2.1"
Depth: 2.6"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
