Product Description
Manufacturer: Sans Digital
Manufacturer Part Number: KT-ES224X6+BS
Manufacturer Website Address: http://www.sansdigital.com
Brand Name: Sans Digital
Product Line: EliteSTOR
Product Model: ES224X6+BS

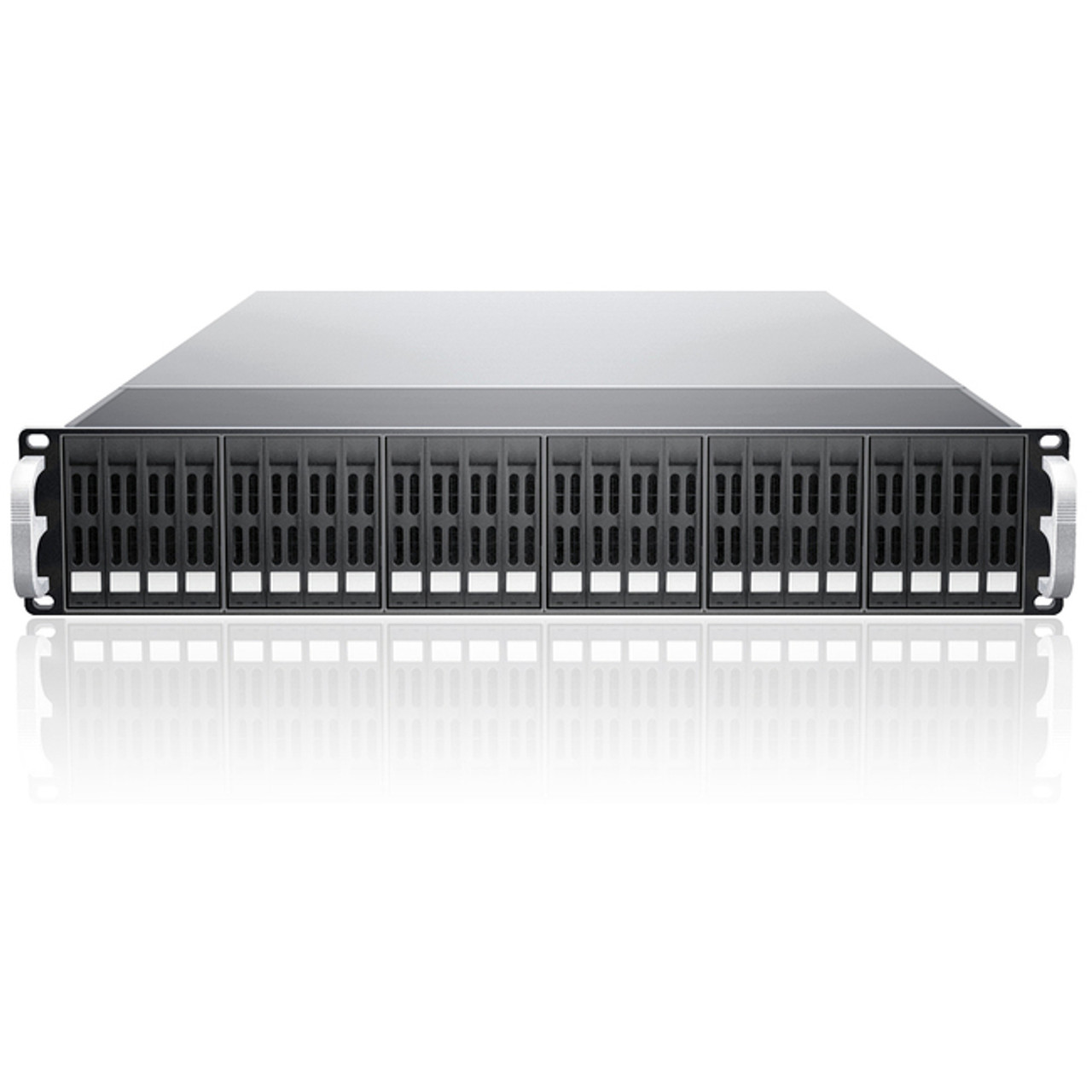

Product Name: EliteSTOR ES224X6+BS DAS Array
Marketing Information:
The EliteSTOR ES224X6+BS is a 2U SAS 6G JBOD rackmount for high capacity storage solution, with 2.5" form factor. Utilizing the latest 6G SAS expander technology, the ES224X6+BS provides over 24 Gb/s or 2400MB/s of bandwidth to fulfill the most demanding application. The ES224X6+BS supports 2.5" SATA or SAS 6Gbps hard drives or SSD and is backward compatible to 3Gbps SAS & SATA hard drives. By utilizing the latest SAS expander technology, the ES224X6+BS supports up to 24 2.5" SAS or SATA drives using only one mini-SAS cable. A built-in SAS expansion port enables the system to connect up to 5 units or 120 HDD drives daisy-chained together. With a high performance RAID controller card such as Areca ARC-1882X or LSI 9285-8E, the ES224X6+BS is capable of delivering over 1700MB/s in read and 1500MB/s write performance, doubling the existing 3G SAS expander bandwidth. System status information is provided by the LED, including hard drives, power supply and cooling fan status. All necessary hardware comes standard including mini-SAS cable, hard drives tray modules and built-in mounting rail. The ES224X6+BS is an ideal storage expansion solution for servers or high performance video editing workstations.
Product Type: DAS Storage System
Storage
Number of Hard Drives Supported: 24
Total Hard Drive Capacity Supported: 24 TB
Number of Solid State Drive Supported: 24
Total Solid State Drive Capacity Supported: 24 TB
I/O Expansions
Number of Total Expansion Bays: 24
Number of 2.5" Bays: 24
Controllers
RAID Supported: Yes
RAID Levels: JBOD
Interfaces/Ports
Drive Interface:
- Serial ATA/600
- 6Gb/s SAS
Host Interface:
- 6Gb/s SAS
- Mini-SAS
Power Description
Maximum Power Supply Wattage: 460 W
Physical Characteristics
Height: 3.5"
Width: 19"
Depth: 23"
Form Factor: Rack-mountable
Rack Height: 2U
Weight (Approximate): 35 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
