Product Description
Specifications
Manufacturer: SIIG, Inc
Manufacturer Part Number: JJ-E40011-S5
Manufacturer Website Address: http://www.siig.com
Brand Name: SIIG

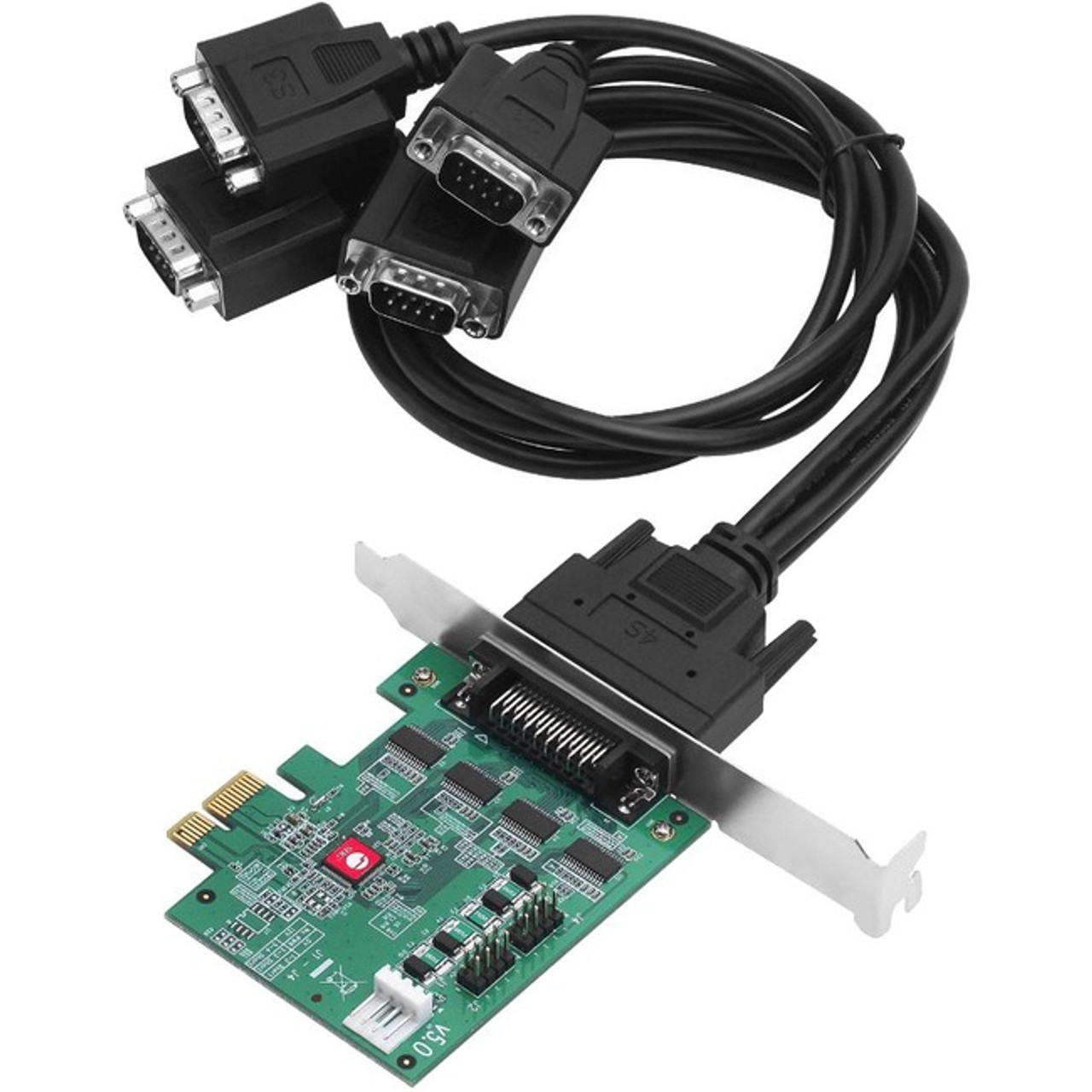

Product Name: DP CyberSerial 4S PCIe Board
Marketing Information:
Product Type: Multiport Serial Adapter
Technical Information
Host Interface: PCI Express 2.0 x1
Maximum Data Transfer Rate: 921 kbit/s
Interfaces/Ports
Ports Expandability: 4 x DB-9 RS-232 - Serial, Via Cable
Physical Characteristics
Form Factor: Plug-in Card
Card Length: Full-length
Height: 0.9"
Width: 3.7"
Thickness: 4.7"
Weight (Approximate): 1.60 oz
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
TAA Compliant: Yes
Country of Origin: Taiwan
Manufacturer: SIIG, Inc
Manufacturer Part Number: JJ-E40011-S5
Manufacturer Website Address: http://www.siig.com
Brand Name: SIIG
Product Name: DP CyberSerial 4S PCIe Board
Marketing Information:
Adds four RS-232 serial ports to PCI Express enabled computer systems. Replaces part # JJ-E40011-S4
Note: Replaces part # JJ-E40011-S4
- Easily adds four RS232 DB9 serial ports through an available PCI Express slot
- PCI Express 1-lane (x1) adapter works with any width PCI Express slot
- Four high-speed 16550 UART RS-232 serial ports support asynchronous baud rates up to 921Kbps
- Built-in 256-byte FIFO buffers dramatically increase data transmit/receive speed, especially under Windows multitasking environment
- Works as standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.) Power is configurable via jumpers with silk-screened settings on PCB for easy identification and setup
- Supports hardware and software flow control, 5, 6, 7, 8 and 9-bit serial format
- Onboard power connector provides reliable power source for devices that require power
- Dual-profile PCB design fits full size and low-profile system form factor with included full and low profile brackets
Product Type: Multiport Serial Adapter
Technical Information
Host Interface: PCI Express 2.0 x1
Maximum Data Transfer Rate: 921 kbit/s
Interfaces/Ports
Ports Expandability: 4 x DB-9 RS-232 - Serial, Via Cable
Physical Characteristics
Form Factor: Plug-in Card
Card Length: Full-length
Height: 0.9"
Width: 3.7"
Thickness: 4.7"
Weight (Approximate): 1.60 oz
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
- WEEE
- RoHS
TAA Compliant: Yes
Country of Origin: Taiwan
