Product Description
Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: EC2S952
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Model: 16C950

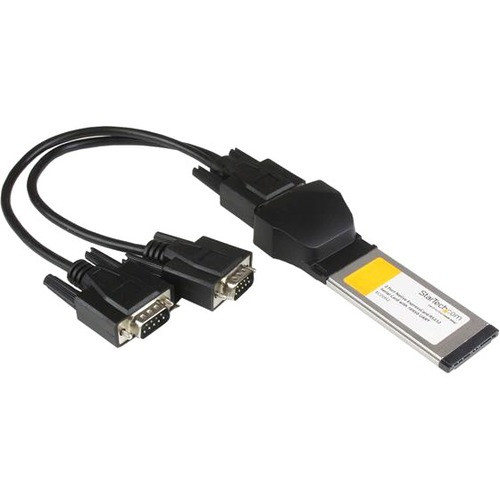

Product Name: 2 Port Native ExpressCard RS232 Serial Adapter Card with 16950 UART
Marketing Information: This 2 Port ExpressCard-based Serial Card lets you add 2 RS232 serial ports to your laptop or ExpressCard equipped desktop computer, using an available ExpressCard slot.
Featuring 128-byte FIFO communication, and a high performance 16C950 UART, the ExpressCard Serial Adapter card offers baud rates up to 115.2Kbps, which ensures peak communication with your serial peripheral devices.
The serial card is designed based on a single-chip architecture (as opposed to cards that use a ""bridge chip""), providing native PCI Express communication for greater performance and reliability, as well as reduced power consumption and CPU load.
Compatible with ExpressCard /34mm and ExpressCard 54mm card slots, the 2 Port Serial ExpressCard includes a slot spacer for greater security while installed in 54mm slots.
Product Type: Multiport Serial Adapter
Technical Information
Host Interface: ExpressCard/34
Maximum Data Transfer Rate: 3.59 Mbit/s
Interfaces/Ports
Ports Expandability: 2 x DB-9 RS-232 - Serial, Via Cable (Optional)
Physical Characteristics
Form Factor: Plug-in Module
Height: 0.8"
Width: 1.8"
Thickness: 4.5"
Weight (Approximate): 1.30 oz
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
TAA Compliant: Yes
Manufacturer: StarTech.com
Manufacturer Part Number: EC2S952
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Model: 16C950
Product Name: 2 Port Native ExpressCard RS232 Serial Adapter Card with 16950 UART
Marketing Information: This 2 Port ExpressCard-based Serial Card lets you add 2 RS232 serial ports to your laptop or ExpressCard equipped desktop computer, using an available ExpressCard slot.
Featuring 128-byte FIFO communication, and a high performance 16C950 UART, the ExpressCard Serial Adapter card offers baud rates up to 115.2Kbps, which ensures peak communication with your serial peripheral devices.
The serial card is designed based on a single-chip architecture (as opposed to cards that use a ""bridge chip""), providing native PCI Express communication for greater performance and reliability, as well as reduced power consumption and CPU load.
Compatible with ExpressCard /34mm and ExpressCard 54mm card slots, the 2 Port Serial ExpressCard includes a slot spacer for greater security while installed in 54mm slots.
Product Type: Multiport Serial Adapter
Technical Information
Host Interface: ExpressCard/34
Maximum Data Transfer Rate: 3.59 Mbit/s
Interfaces/Ports
Ports Expandability: 2 x DB-9 RS-232 - Serial, Via Cable (Optional)
Physical Characteristics
Form Factor: Plug-in Module
Height: 0.8"
Width: 1.8"
Thickness: 4.5"
Weight (Approximate): 1.30 oz
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
- RoHS
- WEEE
TAA Compliant: Yes
