Product Description
Specifications
Manufacturer: Supermicro Computer, Inc
Manufacturer Part Number: MBD-A2SDV-16C-TLN5F-O
Manufacturer Website Address: http://www.supermicro.com
Brand Name: Supermicro
Product Model: A2SDV-16C-TLN5F

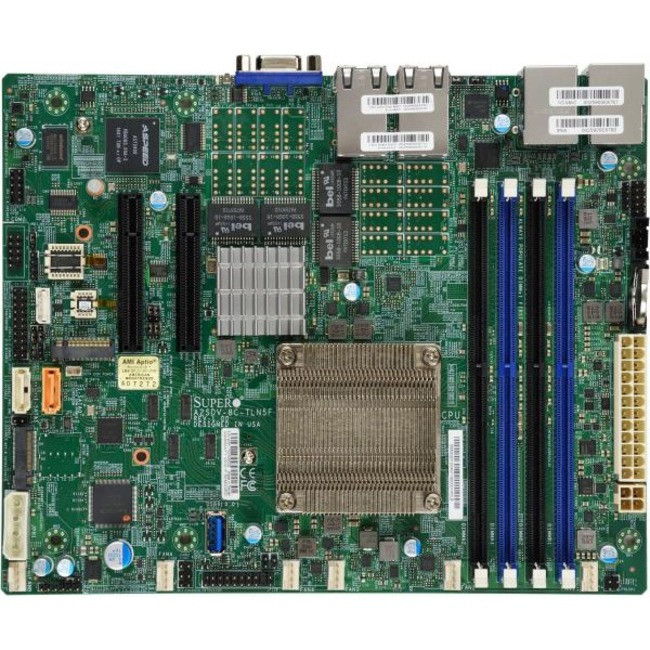

Product Name: A2SDV-16C-TLN5F Server Motherboard
Marketing Information:
Product Type: Server Motherboard
Processor & Chipset
Processor Socket: Socket BGA-1310
Integrated Processor
Integrated Processor Manufacturer: Intel
Integrated Processor Type: Atom
Integrated Processor Model: C3958
Integrated Processor Core: Hexadeca-core (16 Core)
Memory
Number of Memory Slots: 4
Memory Form Factor:
Maximum Memory: 256 GB
Memory Speed Supported:
Memory Technology: DDR4 SDRAM
I/O Controller
Controller Type: Serial ATA/600
Video
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2400
Network & Communication
Gigabit Ethernet: Yes
10Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 1
Total Number of PCI Express Slots: 1
Number of PCI Express x8 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 4
VGA: Yes
Number of Network (RJ-45) Ports: 5
Onboard Interfaces
Number of SATA Interfaces: 2
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 3
Number of Onboard USB 3.0 Ports: 1
Physical Characteristics
Form Factor: Flex ATX
Width: 9"
Depth: 7.3"
Miscellaneous
Compatibility:
Environmentally Friendly: Yes
Environmental Certification: RoHS
Manufacturer: Supermicro Computer, Inc
Manufacturer Part Number: MBD-A2SDV-16C-TLN5F-O
Manufacturer Website Address: http://www.supermicro.com
Brand Name: Supermicro
Product Model: A2SDV-16C-TLN5F
Product Name: A2SDV-16C-TLN5F Server Motherboard
Marketing Information:
C3000 Series BOARDS (System-on-Chip)
Supermicro's motherboards based on Intel® Atom® processor C3000 series System-on-Chip (formerly Denverton) are well-suited for entry-level server platforms and embedded IPC market.
Product Type: Server Motherboard
Processor & Chipset
Processor Socket: Socket BGA-1310
Integrated Processor
Integrated Processor Manufacturer: Intel
Integrated Processor Type: Atom
Integrated Processor Model: C3958
Integrated Processor Core: Hexadeca-core (16 Core)
Memory
Number of Memory Slots: 4
Memory Form Factor:
- DIMM
- UDIMM
Maximum Memory: 256 GB
Memory Speed Supported:
- 2.40 GHz
- 2.13 GHz
- 1.87 GHz
- 1.60 GHz
Memory Technology: DDR4 SDRAM
I/O Controller
Controller Type: Serial ATA/600
Video
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2400
Network & Communication
Gigabit Ethernet: Yes
10Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 1
Total Number of PCI Express Slots: 1
Number of PCI Express x8 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 4
VGA: Yes
Number of Network (RJ-45) Ports: 5
Onboard Interfaces
Number of SATA Interfaces: 2
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 3
Number of Onboard USB 3.0 Ports: 1
Physical Characteristics
Form Factor: Flex ATX
Width: 9"
Depth: 7.3"
Miscellaneous
Compatibility:
Chassis:
- SCE300
- SC504-203B
- SC505-203B
Environmentally Friendly: Yes
Environmental Certification: RoHS
