Product Description
Specifications
Manufacturer: Supermicro Computer, Inc
Manufacturer Part Number: MBD-X11SSH-CTF-B
Manufacturer Website Address: http://www.supermicro.com
Brand Name: Supermicro
Product Model: X11SSH-CTF

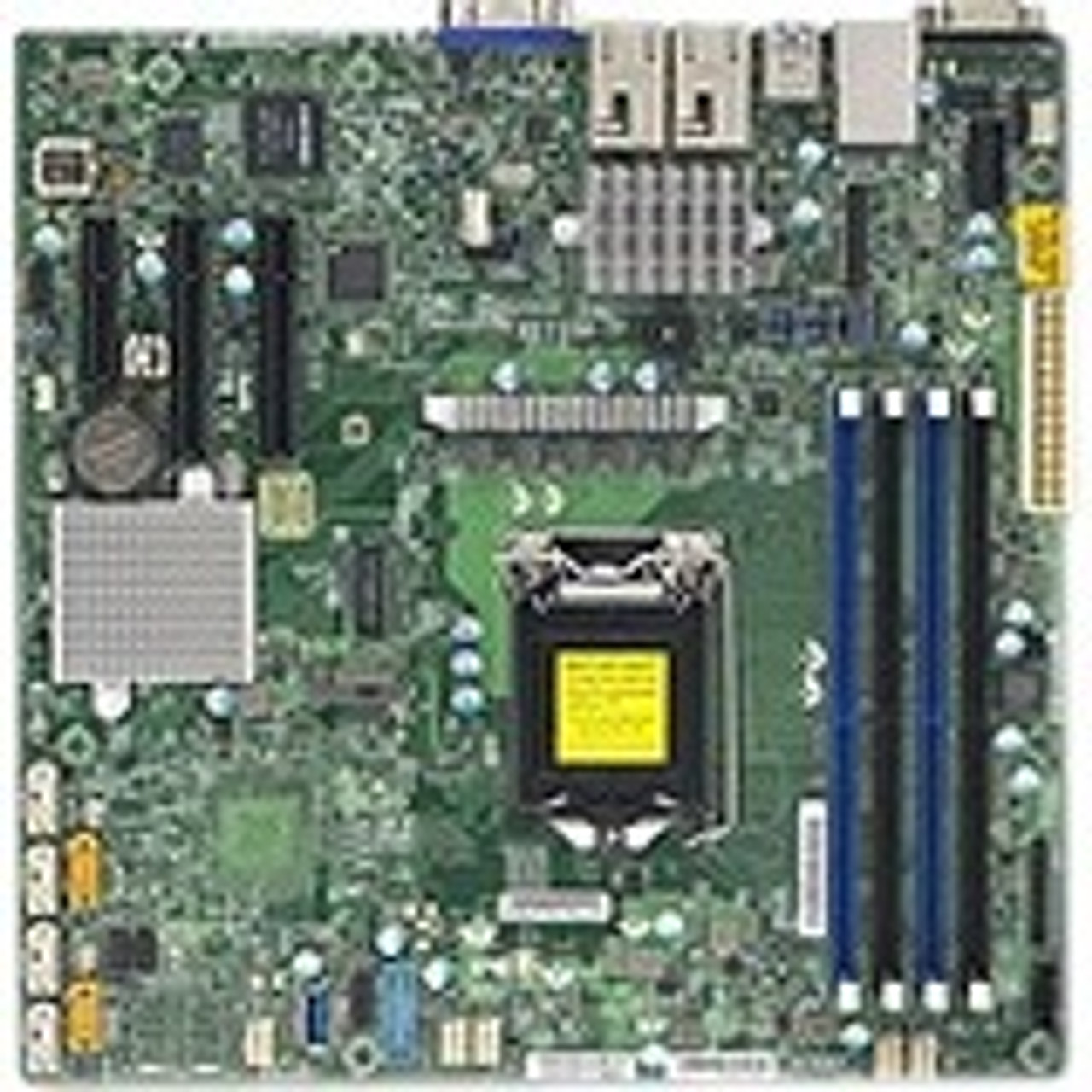

Product Name: X11SSH-CTF Server Motherboard
Marketing Information: Xeon® E3-1200 v5 Family Boards / Socket H4 (LGA 1151)
Supermicro's single processor Socket H4 designs feature the Intel® C236/C232 chipset which support the Intel® Xeon E3-1200 v5 processor family and Intel® 6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0/USB 3.1, PCI-E 3.0 M.2 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, and DVI ports. Designed with performance, reliability, manageability and long life in mind, Supermicro's single processor motherboards are the perfect solution for a variety of server, workstation and embedded applications.
Product Type: Server Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported:
Memory
Number of Memory Slots: 4
Memory Form Factor:
Maximum Memory: 64 GB
Memory Speed Supported:
Memory Technology: DDR4 SDRAM
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:
Video
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2400
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x4 Slots: 2
Number of PCI Express x8 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 2
VGA: Yes
Onboard Interfaces
Number of SATA Interfaces: 8
Number of SAS Interfaces: 8
Total Number of Onboard USB Ports: 7
Number of Onboard USB 3.0 Ports: 3
Physical Characteristics
Form Factor: Micro ATX
Width: 9.6"
Depth: 9.6"
Miscellaneous
Compatibility: Supermicro SuperChassis
1U Chassis:
Manufacturer: Supermicro Computer, Inc
Manufacturer Part Number: MBD-X11SSH-CTF-B
Manufacturer Website Address: http://www.supermicro.com
Brand Name: Supermicro
Product Model: X11SSH-CTF
Product Name: X11SSH-CTF Server Motherboard
Marketing Information: Xeon® E3-1200 v5 Family Boards / Socket H4 (LGA 1151)
Supermicro's single processor Socket H4 designs feature the Intel® C236/C232 chipset which support the Intel® Xeon E3-1200 v5 processor family and Intel® 6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0/USB 3.1, PCI-E 3.0 M.2 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, and DVI ports. Designed with performance, reliability, manageability and long life in mind, Supermicro's single processor motherboards are the perfect solution for a variety of server, workstation and embedded applications.
Product Type: Server Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported:
- Core i3
- Celeron
- Pentium
- Xeon
Memory
Number of Memory Slots: 4
Memory Form Factor:
- DIMM
- UDIMM
Maximum Memory: 64 GB
Memory Speed Supported:
- 2.13 GHz
- 1.87 GHz
- 1.60 GHz
Memory Technology: DDR4 SDRAM
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:
- 0
- 1
- 5
- 10
Video
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2400
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x4 Slots: 2
Number of PCI Express x8 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 2
VGA: Yes
Onboard Interfaces
Number of SATA Interfaces: 8
Number of SAS Interfaces: 8
Total Number of Onboard USB Ports: 7
Number of Onboard USB 3.0 Ports: 3
Physical Characteristics
Form Factor: Micro ATX
Width: 9.6"
Depth: 9.6"
Miscellaneous
Compatibility: Supermicro SuperChassis
1U Chassis:
- SC813MFTQC-505CB
- SC113MFAC2-341CB
- SC113MFAC2-R606CB
- SC813MFTQ-R400CB
- SC512F-350B
- SC813MTQ-350CB
- SC813MFTQC-350CB
- SC213LT-600LPB
- SC825TQ-R720LPB
- SC823TQ-653LPB
- SC833T-653B
- SC732I-500B
- SC731i-300B
- SC842TQ-665B
- SC842i-500B
