Product Description
Manufacturer: TRENDnet
Manufacturer Part Number: TFC-PGSFP
Manufacturer Website Address: http://www.trendnet.com
Brand Name: TRENDnet
Product Model: TFC-PGSFP

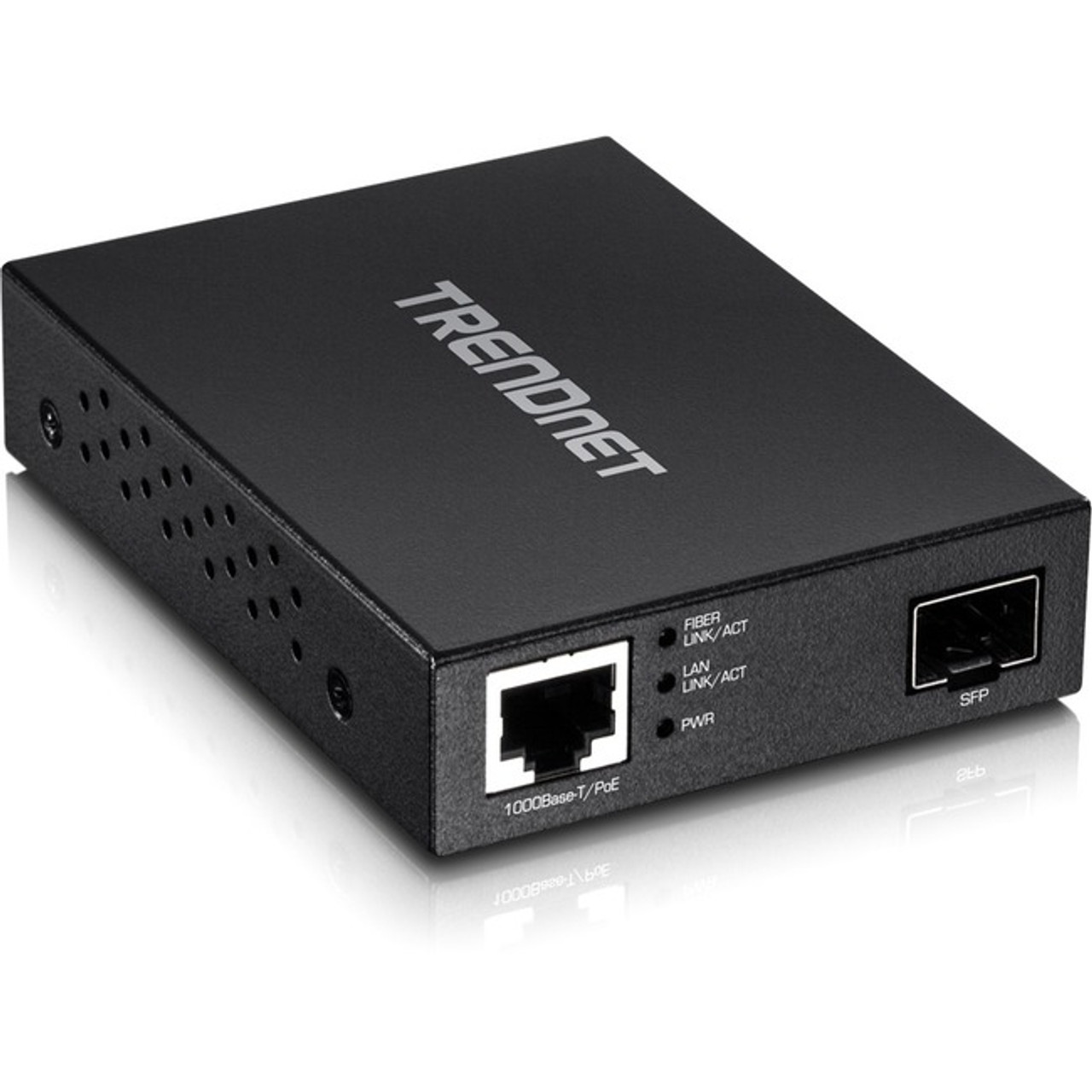

Product Name: Gigabit PoE PD SFP Fiber Media Converter
Marketing Information:
TRENDnet's Gigabit PoE PD SFP Fiber Media Converter, model TFC-PGSFP, converts 100/1000BASE-T copper Ethernet to 1000BASE-SX/LX Fiber SFP media and vice versa. The TFC-PGSFP is conveniently powered via PoE switch or injector, no power adapter is required. It features one gigabit PoE input port for power and data, plus one SFP slot that supports both multimode (SX) or single-mode (LX) SFP modules. The SFP slot accommodates both Fast Ethernet and Gigabit SFP modules providing further installation flexibility.
Dual Speed SFP Slot
Dual-speed SFP slot supports both 100Mbps and 1000Mbps SFP modules for multimode or single-mode fiber applications.
PoE Powered
No power adapter required-this fiber SFP converter is powered via an 802.3af/at PoE switch or injector at distances up to 100m (328 ft.).
Compact
Small and compact metal housing design provides greater installation flexibility.
Ports
1 x 100/1000BASE-T RJ-45 PoE input port, 1 x 100/1000BASE-SX/LX SFP slot
PoE Powered
No power adapter required-this fiber SFP converter is powered via an 802.3af/at PoE switch or injector at distances up to 100m (328 ft.)
Dual Speed SFP Slot
Dual-speed SFP slot supports both 100Mbps and 1000Mbps SFP modules
Jumbo Frame
Sends larger packets, or jumbo frames (up to 9KB), for increased performance
Product Type: Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports: 1
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Fiber Mode Supported:
- Single-mode
- Multi-mode
Maximum Distance Supported: 328.08 ft
I/O Expansions
Number of Total Expansion Slots: 1
Expansion Slot Type: SFP (mini-GBIC)
Number of SFP Slots: 1
Network & Communication
Ethernet Technology: Gigabit Ethernet
Network Technology:
- 1000Base-T
- 1000Base-SX/LX
Power Description
Power Source: PoE
Physical Characteristics
Height: 0.9"
Width: 4"
Depth: 3"
Weight (Approximate): 7.05 oz
