Product Description
Specifications
Manufacturer: Tripp Lite
Manufacturer Part Number: N390-02M-8LC-AP
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Model: N390-02M-8LC-AP

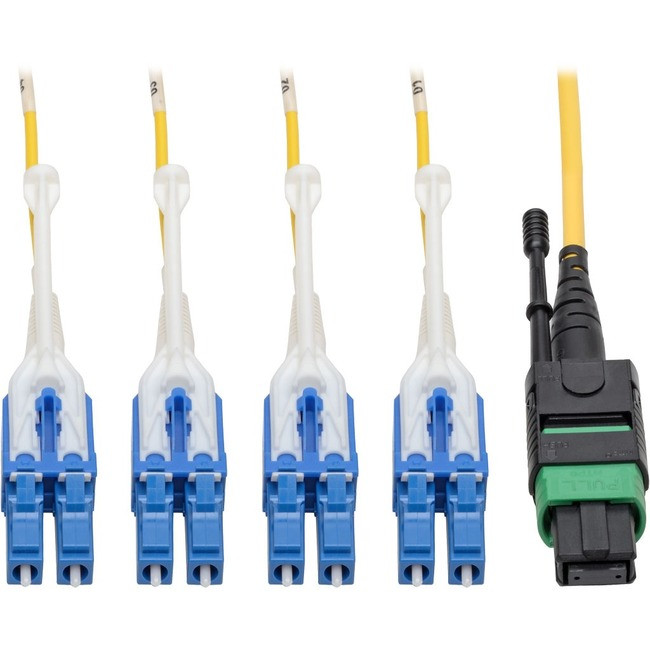

Product Name: N390-02M-8LC-AP MTP/MPO to 8xLC Singlemode Breakout Patch Cable, Yellow, 2 m
Marketing Information: The N390-02M-8LC-AP MTP/MPO to 8xLC Singlemode Breakout Patch Cable supports 40/100 Gb Ethernet speeds and is designed for high-density fiber patching between data center MDFs (main distribution frames) and IDFs (intermediate distribution frames) in enterprise installations. It's optimized for QSFP+ 40GBASE-PLR4 and QSFP28 100GBASE-PSM4 networks. Its plenum-rated jacket makes it ideal for connecting switches, hubs, routers and other high-speed network components in ceilings, walls and ducts.
The 12-fiber MTP/MPO connector is about the same size as an SC connector, but is 12 times denser, freeing up rack space for other cables. The APC connector is angled to prevent infrared light entering the fiber from bouncing back into the laser. The N390-02M-8LC-AP is tested for low insertion loss and back reflection on every connector and attenuation loss that meets or exceeds current standards.
The N390-02M-8LC-AP uses eight fibers to fully transmit 40GBASE-PLR4 with four fibers transmitting at 10 Gbps in each direction. Its slim, space-saving uniboot design allows easier cable management. The LC UPC connector's premium-grade ceramic ferrule is designed for fast applications of 10 GbE and higher.
The singlemode cable is colored yellow for instant identification in a crowded switch or patch panel. Push/pull tab connectors are easily accessible in high-density data center environments and make the plug-and-play cable easy to install and remove with one hand.
Product Type: Network Cable
Technical Information
Cable Type: Fiber Optic
Cable Characteristic: Patch Cable
Fiber Optic Mode: Single-mode
Core/Cladding Diameter: 8.3/125 µm
Cable Length: 6.60 ft
Connector on First End: 1 x MTP/MPO Female Network
Connector on Second End: 8 x LC Male Network
Features:
Device Supported:
Data Transfer Rate: 100 Gbit/s
Physical Characteristics
Color: Yellow
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
Manufacturer: Tripp Lite
Manufacturer Part Number: N390-02M-8LC-AP
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Model: N390-02M-8LC-AP
Product Name: N390-02M-8LC-AP MTP/MPO to 8xLC Singlemode Breakout Patch Cable, Yellow, 2 m
Marketing Information: The N390-02M-8LC-AP MTP/MPO to 8xLC Singlemode Breakout Patch Cable supports 40/100 Gb Ethernet speeds and is designed for high-density fiber patching between data center MDFs (main distribution frames) and IDFs (intermediate distribution frames) in enterprise installations. It's optimized for QSFP+ 40GBASE-PLR4 and QSFP28 100GBASE-PSM4 networks. Its plenum-rated jacket makes it ideal for connecting switches, hubs, routers and other high-speed network components in ceilings, walls and ducts.
The 12-fiber MTP/MPO connector is about the same size as an SC connector, but is 12 times denser, freeing up rack space for other cables. The APC connector is angled to prevent infrared light entering the fiber from bouncing back into the laser. The N390-02M-8LC-AP is tested for low insertion loss and back reflection on every connector and attenuation loss that meets or exceeds current standards.
The N390-02M-8LC-AP uses eight fibers to fully transmit 40GBASE-PLR4 with four fibers transmitting at 10 Gbps in each direction. Its slim, space-saving uniboot design allows easier cable management. The LC UPC connector's premium-grade ceramic ferrule is designed for fast applications of 10 GbE and higher.
The singlemode cable is colored yellow for instant identification in a crowded switch or patch panel. Push/pull tab connectors are easily accessible in high-density data center environments and make the plug-and-play cable easy to install and remove with one hand.
Product Type: Network Cable
Technical Information
Cable Type: Fiber Optic
Cable Characteristic: Patch Cable
Fiber Optic Mode: Single-mode
Core/Cladding Diameter: 8.3/125 µm
Cable Length: 6.60 ft
Connector on First End: 1 x MTP/MPO Female Network
Connector on Second End: 8 x LC Male Network
Features:
- Angled Connector
- Slimline
- Uniboot Connector
Device Supported:
- Network Device
- Switch
- Hub
- Router
Data Transfer Rate: 100 Gbit/s
Physical Characteristics
Color: Yellow
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
