Product Description
Manufacturer: Tripp Lite
Manufacturer Part Number: SU20K3/3XR5
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Line: SmartOnline
Product Model: SU20K3/3XR5

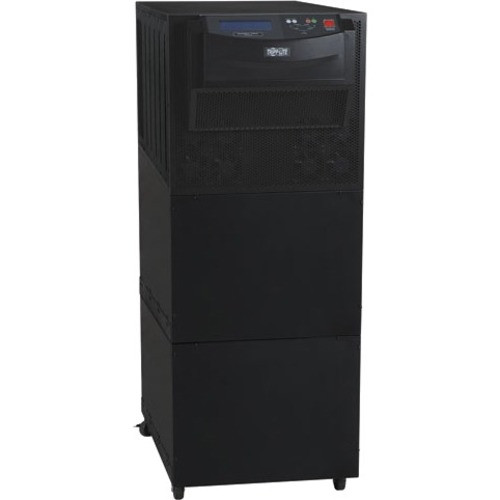

Product Name: SmartOnline SU20K3/3XR5 20kVA Tower UPS
Marketing Information:
Tripp Lite's SU20K3/3XR5 20kVA SmartOnline 3-Phase Intelligent, True On-Line Extended Runtime UPS System has been redesigned to save valuable space and simplify runtime scalability. Power and battery components are combined into a single, small-footprint module (the smallest in its class). A robust internal battery runtime capability can be easily extended by installing additional optional internal battery packs through the convenient front panel access door. The SU20K3/3XR5 features a large internal battery compartment that contains more internal batteries than the equivalent standard-run model (SU20K3/3) and more space to add additional optional internal battery packs to extend runtime.The SU20K3/3XR5 provides mission-critical equipment with the highest level of power protection available. Large capacity 20,000VA/16,000 watt UPS continually converts incoming AC power into filtered DC power, and then resynthesizes it back into AC power with a pure sine wave. Perfectly regulated, continuous sine wave output with zero transfer time offers compatibility with all equipment types. IGBT inverter technology produces output power with <3% THD (total harmonic distortion), allowing connected equipment to perform at its peak. A 3:1 crest factor safely supports a variety of equipment, even those with wildly-fluctuating power demands. Extremely efficient
Product Type: Dual Conversion Online UPS
Technical Information
Plug/Connector Type: Hardwired
Receptacles: Hardwired
Power Description
Load Capacity: 20 kVA/16 kW
Input Voltage:
- 120 V AC
- 208 V AC
Output Voltage:
- 120 V AC
- 208 V AC
Management
Network Management: SNMP Manageable
Battery Information
Backup/Run Time (Full Load): 17 Minute
Backup/Run Time (Half Load): 42 Minute
Typical Battery Recharge Time: 4 Hour
Physical Characteristics
Form Factor: Tower
Height: 48.5"
Width: 19.3"
Depth: 36"
Weight (Approximate): 935 lb
