Product Description
Specifications
Manufacturer: Tyan Computer Corp
Manufacturer Part Number: S32272NR-C338
Manufacturer Website Address: http://www.tyan.com
Brand Name: Tyan
Product Model: S3227

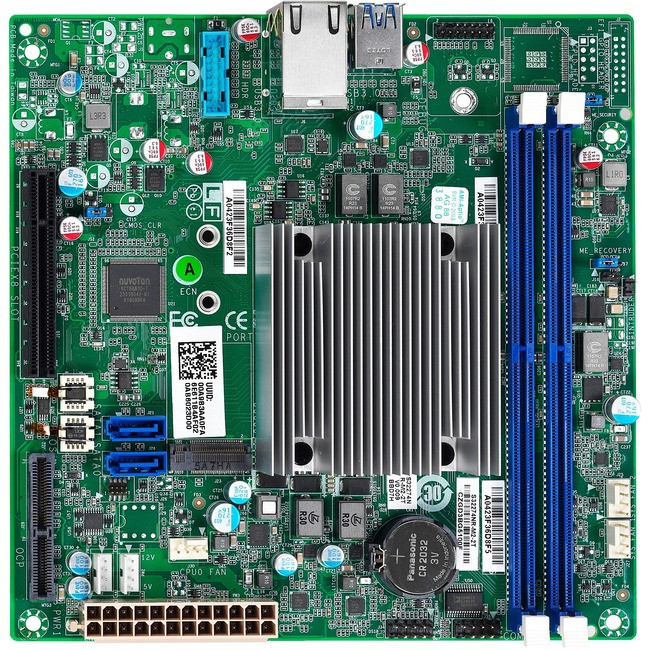

Product Name: S3227 Desktop Motherboard
Product Type: Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Integrated Processor
Integrated Processor Manufacturer: Intel
Integrated Processor Type: Atom
Integrated Processor Model: C3338
Integrated Processor Speed: 1.50 GHz
Integrated Processor Core: Dual-core (2 Core)
Memory
Number of Memory Slots: 1
Memory Form Factor:
Maximum Memory: 32 GB
Memory Speed Supported: 1.87 GHz
Memory Technology: DDR4 SDRAM
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: No
Video
Onboard Video: No
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 2
Total Number of PCI Express Slots: 1
Number of PCI Express x8 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 2
Number of USB 3.0 Ports: 2
Onboard Interfaces
Number of SATA Interfaces: 2
Number of M.2 Interfaces: 1
Physical Characteristics
Form Factor: Mini ITX
Width: 6.7"
Depth: 6.7"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
Country of Origin: Taiwan
Manufacturer: Tyan Computer Corp
Manufacturer Part Number: S32272NR-C338
Manufacturer Website Address: http://www.tyan.com
Brand Name: Tyan
Product Model: S3227
Product Name: S3227 Desktop Motherboard
Product Type: Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Integrated Processor
Integrated Processor Manufacturer: Intel
Integrated Processor Type: Atom
Integrated Processor Model: C3338
Integrated Processor Speed: 1.50 GHz
Integrated Processor Core: Dual-core (2 Core)
Memory
Number of Memory Slots: 1
Memory Form Factor:
- DIMM
- UDIMM
- RDIMM
Maximum Memory: 32 GB
Memory Speed Supported: 1.87 GHz
Memory Technology: DDR4 SDRAM
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: No
Video
Onboard Video: No
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 2
Total Number of PCI Express Slots: 1
Number of PCI Express x8 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 2
Number of USB 3.0 Ports: 2
Onboard Interfaces
Number of SATA Interfaces: 2
Number of M.2 Interfaces: 1
Physical Characteristics
Form Factor: Mini ITX
Width: 6.7"
Depth: 6.7"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
- RoHS-6
- China RoHS
Country of Origin: Taiwan
