Product Description
Specifications
Manufacturer: Tyan Computer Corp
Manufacturer Part Number: S5180AG2N
Manufacturer Website Address: http://www.tyan.com
Brand Name: Tyan
Product Line: Toledo
Product Series: i965R (S5180)
Product Model: S5180AG2N

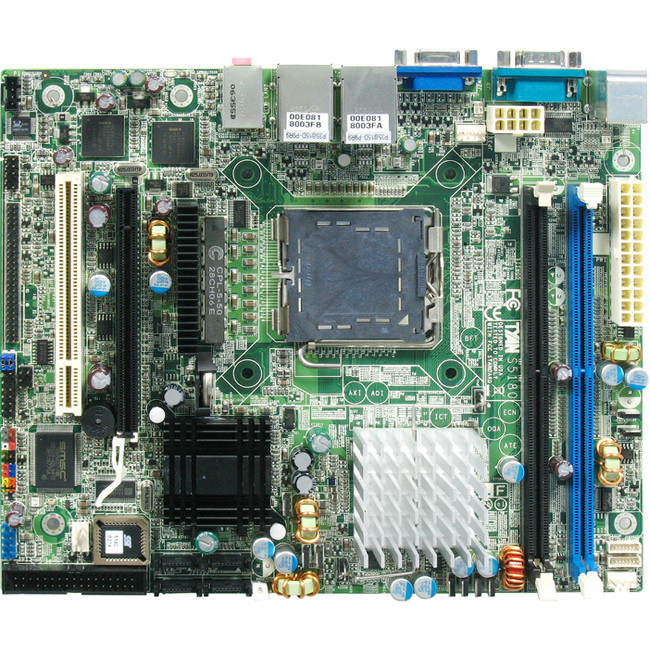

Product Name: Toledo i965R (S5180) S5180AG2N Workstation Motherboard
Marketing Information:
Product Type: Workstation Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket T LGA-775
Processor Supported:
Memory
Number of Memory Slots: 2
Memory Form Factor: DIMM
Maximum Memory: 4 GB
Memory Speed Supported:
Memory Standard:
Memory Technology: DDR2 SDRAM
I/O Controller
Controller Type:
Video
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: Intel
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 2
Total Number of PCI Express Slots: 1
Number of PCI Express x16 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 4
VGA: Yes
Number of Network (RJ-45) Ports: 2
Onboard Interfaces
Number of SATA Interfaces: 4
Total Number of Onboard USB Ports: 2
Number of Onboard USB 2.0 Ports: 2
Physical Characteristics
Form Factor: Flex ATX
Width: 9"
Depth: 7.5"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
Manufacturer: Tyan Computer Corp
Manufacturer Part Number: S5180AG2N
Manufacturer Website Address: http://www.tyan.com
Brand Name: Tyan
Product Line: Toledo
Product Series: i965R (S5180)
Product Model: S5180AG2N
Product Name: Toledo i965R (S5180) S5180AG2N Workstation Motherboard
Marketing Information:
One of the most powerful Intel processor solutions, Toledo i965R (S5180AG2N). The i965R S5180AG2N is a flexible Intel platform for multiple applications, based on the Intel Q965 "Broadwater" MCH+ICH8 chipsets. It is designed to support Intel Pentium 4, Pentium D and Core 2 Duo processors: Cedar Mill/Presler/Conroe Processors and up to 4GB DDR2-533/667/800 DIMM. This motherboard features 1 FLEX-ATX form factor, 6 USB ports, 2 Gigabit LAN ports, and 4 SATA-II ports. The S5180 offers exceptional performance and versatility for all your server platform needs.
Product Type: Workstation Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket T LGA-775
Processor Supported:
- Pentium 4
- Pentium D
- Core 2 Duo
- Xeon
Memory
Number of Memory Slots: 2
Memory Form Factor: DIMM
Maximum Memory: 4 GB
Memory Speed Supported:
- 800 MHz
- 667 MHz
- 533 MHz
Memory Standard:
- DDR2-800/PC2-6400
- DDR2-667/PC2-5300
- DDR2-533/PC2-4200
Memory Technology: DDR2 SDRAM
I/O Controller
Controller Type:
- Floppy Controller
- Serial ATA/300
Video
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: Intel
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 2
Total Number of PCI Express Slots: 1
Number of PCI Express x16 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 4
VGA: Yes
Number of Network (RJ-45) Ports: 2
Onboard Interfaces
Number of SATA Interfaces: 4
Total Number of Onboard USB Ports: 2
Number of Onboard USB 2.0 Ports: 2
Physical Characteristics
Form Factor: Flex ATX
Width: 9"
Depth: 7.5"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
