Product Description
Manufacturer: Eaton Corporation
Manufacturer Part Number: EMA341-10
Manufacturer Website Address: http://www.eaton.com
Brand Name: Eaton
Product Line: ePDU
Product Series: Managed
Product Model: EMA341-10

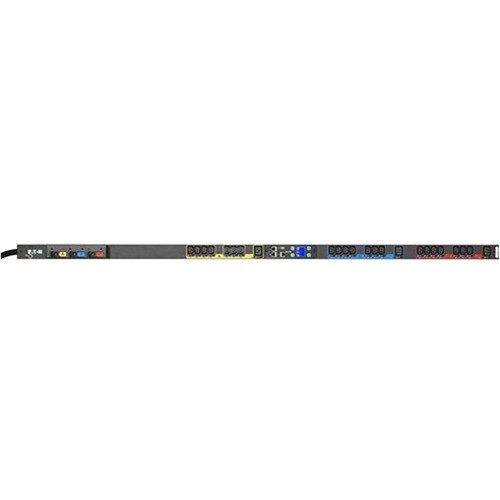

Product Name: ePDU Managed EMA341-10 24-Outlets PDU
Marketing Information: Eaton ePDU G3 Managed technology provides a best-in-class design featuring billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Outlet switching allows for on, off or reboot of individual outlets, which reduces the cost of managing remote or local IT data center environments. The robust design is UL rated to operate at 140 degrees F (60 degrees C) ambient operating temperature for containment and high temperature environments.
- Outlet switching for on, off and reboot control to reduce management costs
- Outlet level metering to +/- 1% billing grade accuracy for customer billing or level 3 PUE calculations
- LCD pixel display with hot-swap capability enables load balancing and local setup of key parameters such as IP address and display orientation
- High operating temperature (140 degrees F / 60 degrees C) for containment or hot network closet environments
- Daisy chain of IP addresses allows four devices to share one network connection to reduce network install costs by up to 75%
- IEC outlet grip plug retention secures plugs in place using standard cables
Product Type: PDU
Technical Information
Input Receptacles: 1 x NEMA L15-30P
Output Receptacles:
- 3 x IEC 60320 C19
- 21 x IEC 60320 C13
Power Description
Input Voltage: 230 V AC
Output Voltage: 230 V AC
Power Rating (Watt): 8640 W
Input Current: 24 A
Interfaces/Ports
Network (RJ-45): Yes
Physical Characteristics
Mounting Orientation: Vertical
Placement: Rack
Rack Height: 38U
Height: 66.5"
Width: 2.1"
Depth: 2.1"
