Product Description
Specifications

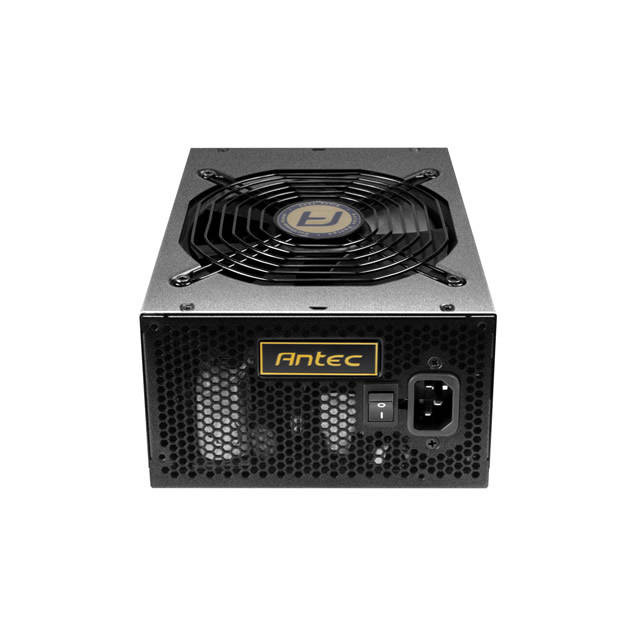

- Mfr Part Number: HCP-1000 PLATINUM
- Features:
- 1000W Continuous Power - Guaranteed 1000W of Continuous Power from Antec
- 80 PLUS PLATINUM certified - up to 94% efficient, to reduce your electricity bill by up to 25%
- AQ7 -Â Antec Quality 7 year warranty and lifetime global 24/7 support
- 16-pin Socket - Industry-leading 16-pin sockets double the modular connectivity by supporting 2 different 8-pin cables per socket and allow for future connector changes
- 28(20+8)-pin MBU socket - World's first socket for possibe future MBU connectors
- 135 mm DBB Silence - Whisper-quiet high-quality double ball bearing fan with long lifetime
- Thermal Manager - An advanced low voltage fan control for optimal heat & noise management
- High Current Rails - 4 High Current +12V rails with high load capabilities ensure maximum CPU & GPU compatibility
- 100% +12V - Output for maximum CPU & GPU support
- Multi PCI-E - 6 PCI-E connectors for multiple GPU support
- CircuitShield - Full suite of industrial grade protections:
- Over Current Protection (OCP)
- Over Voltage Protection (OVP)
- Under Voltage Protection (UVP)
- Short Circuit Protection (SCP)
- Over Power Protection (OPP)
- Over Temperature Protection (OTP)
- Surge & Inrush Protecion (SIP)
- No Load Operation (NLO) & Brown-Out Protection (BOP)
- All Japanese Heavy-Duty Caps - All high-performance Japanese capacitors ensure tightest DC stability and regulation
- ErP Lot 6: 2013 - Compliant to the toughest energy standard available
- PhaseWave Design - A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
- Stealth Wires - All wires darkened for minimal visibility in chassis
- Maximum Power: 1000W
- Input: 100 - 240VAC ~ ±10% (Active PFC), 50 - 60Hz, 13A - 6.5A
- Output: +5V @ 25A; +3.3V @ 25A; +12V1 @ 40A; +12V2 @ 40A; +12V3 @ 40A; +12V4 @ 40A; -12V @ 0.5A; +5Vsb @ 3A
- Fan: 1x 135 mm Double Ball Bearing Fan
- Connectors: 1x 24 pin Main Connector; 1x 8(4+4) pin ATX12V/EPS12V CPU Connector; 1x 8 Pin EPS12V connector; 6x 8(6+2) pin PCI-Express Connectors; 9x SATA Connectors; 6x Molex Connectors; 1x Floppy Connector
- Safety Approval: UL, cUL, CE, CB, FCC, TÃœV, C-Tick, CCC, BSMI, KCC
- Dimensions (WxDxH): 5.9 x 7.5 x 3.4 inch / 150.0 x 190.0 x 86.0 mm
- Weight:Â 4.7 lbs / 2.2 kg
- RoHS Compliant
