Product Description
Specifications

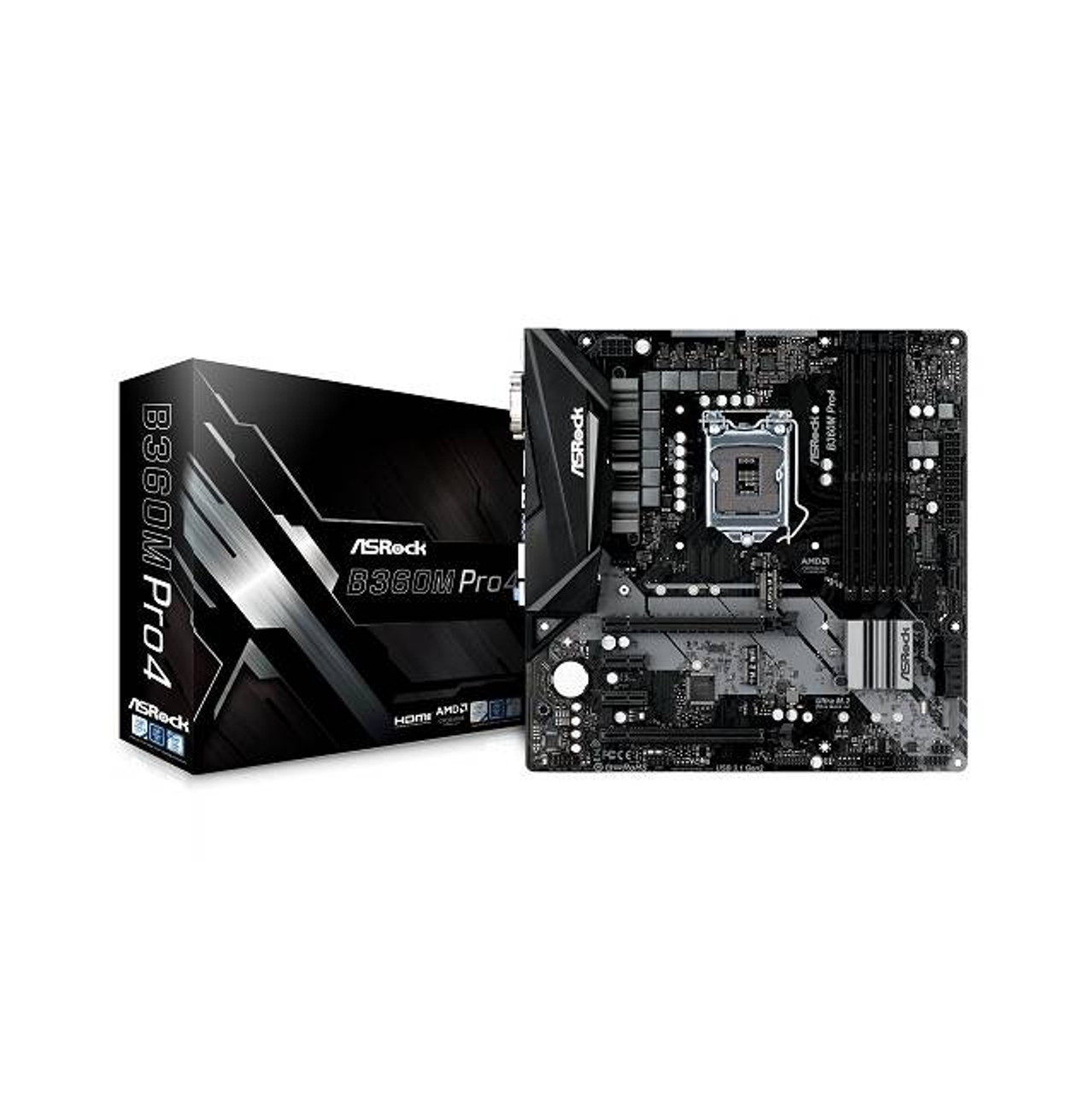

- Mfr Part Number: B360M PRO4
- CPU: LGA1151
- Supports 8th Generation Intel Core Processors
- Supports CPU up to 95W
- Digi Power design
- 10 Power Phase design
- Supports Intel Turbo Boost 2.0 Technology
- Chipset: Intel B360
- Memory: 4x DDR4-2666/ 2400/ 2133 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB
- Slots: 2x PCI-Express 3.0 x16 Slots (single at x16, dual at x16/ x4), 2x PCI-Express 3.0 x1 Slots (Flexible PCI-Express), 1x M.2 Socket (Key E)
- Multi-Graphics: Supports AMD Quad CrossFireX, CrossFireX Technology
- Storage:
- SATA: 6x SATA3 Ports, Support NCQ, AHCI and Hot Plug
- M.2: 1x Ultra M.2 Port, supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s), 1x M.2 Port, supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x1 (8 Gb/s)
- Audio: Realtek ALC892 7.1-Channel High Definition Audio CODEC
- LAN: Giga PHY Intel I219V Gigabit Ethernet Controller
- Ports: 2x USB 3.1 Gen2 Ports (1 Type-A rear, 1 Type-C rear), 4x USB 3.1 Gen1 Ports (2 rear, 2 via header), 5x USB 2.0 Ports (2 rear, 3 via headers), 1x PS/2 Mouse Port, 1x PS/2 Keyboard Port,, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port w/ LED, Audio I/O Jacks
- Power Connector: 1x 24pin ATX Power Connector, 1x 8pin 12V Power Connector
- Form Factor: MicroATX, 9.6 x 9.6 inch / 24.4 x 24.4 cm
