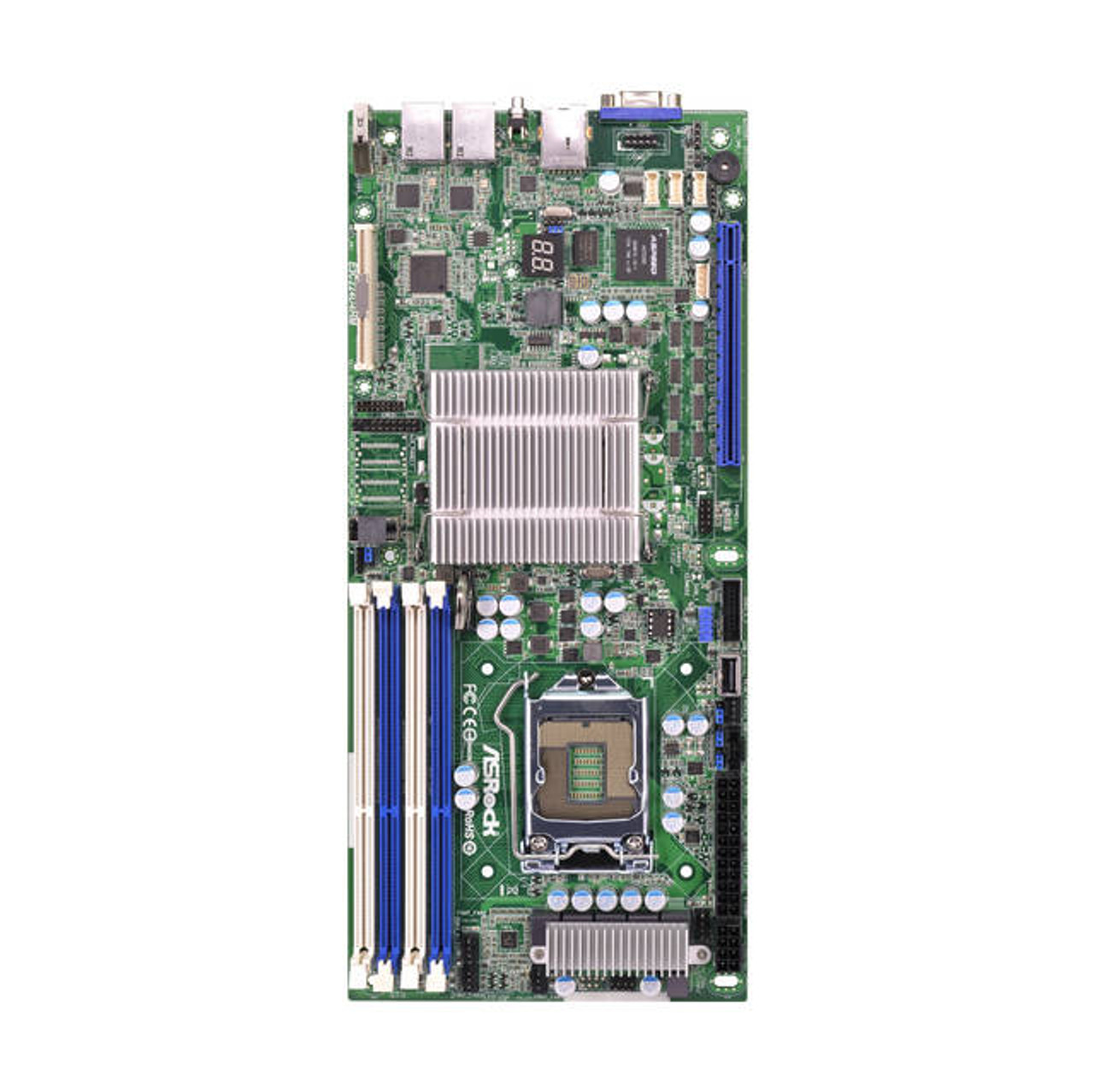

Product Description
Specifications
- Mfr Part Number: E3C224D4HM
- CPU: LGA1150
- Supports Intel Xeon E3-1200 v3/v4 Series & 5th/ 4th Generation Core i3/Pentium/Celeron Processors
- Supports Hyper-Threading Technology
- Chipset: Intel C224
- Memory: 4x 240pin DDR3-1600/1333 DIMM Slots, Dual Channel, ECC, Unbuffered, Max Capacity of 32GB
- Slots: 1x PCI-Express 3.0 x16 Slot
- SATA: 4x SATA3 Ports, Support RAID 0, 1, 5, 10 and Intel Rapid Storage
- Video: Aspeed AST2300 Graphics w/ 16MB DDR3 VRAM Video Memory
- LAN: 2x Intel i210 Gigabit Ethernet Controllers, 1x Realtek RTL8211E for Dedicated Management LAN
- Ports: 3x USB 3.0 Ports (1 rear, 2 via header), 3x USB 2.0 Ports (2 via header, 1 Type A), 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
- Power Connector: 1x 24pin ATX Power Connector, 1x 8pin ATX Power Connector
- Form Factor: Half Width, 13.00 x 5.96 inch / 33.0 x 15.1 cm
