Product Description
Specifications

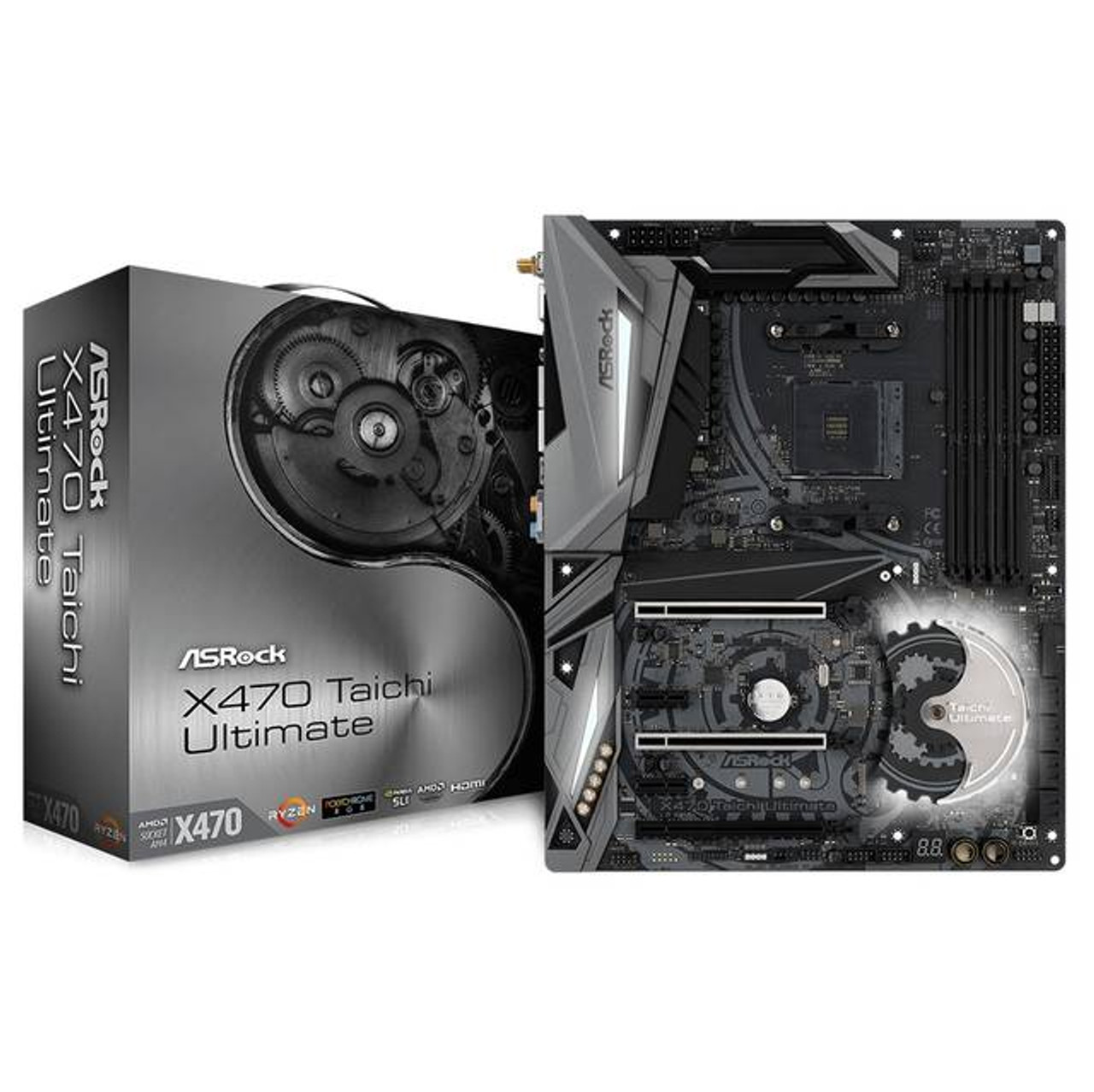

- Mfr Part Number: X470 TAICHI ULTIMATE
- CPU: Socket AM4
- Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge)
- IR Digital PWM
- 16 Power Phase design
- Supports 300W EX OC
- Supports ASRock Hyper BCLK Engine II
- Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge)
- Chipset: AMD Promontory X470
- Memory: 4x DDR4-3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 64GB (Pinnacle Ridge); 4x DDR4-3466+(OC)/ 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133 DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 64GB (Summit Ridge); 4x DDR4-3466+(OC)/ 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB (Raven Ridge)
- Slots: 2x PCI-Express 3.0 x16 Slots (single at x16; dual at x8/ x8),1x PCI Express 2.0 x16 Slot (runs at x4), 2x PCI-Express 2.0 x1 Slots (Flexible PCIe)
- Multi-Graphics: Supports AMD Quad CrossFireX, CrossFireX and NVIDIA Quad SLI, SLI Technology
- Storage:
- SATA: 6x SATA3 Ports, Support RAID 0, 1, 10, NCQ, AHCI and Hot Plug; 2x SATA3 by ASMedia ASM1061,Support NCQ, AHCI and Hot Plug
- M.2: 1x Ultra M.2 Port (M Key) supports type 2260/ 2280/ 22110 M.2 SATA3 and M.2 PCI-Express 3.0 x4 (32 Gb/s); 1x M.2 Port (M Key) supports type 2230/ 2242/ 2260/ 2280 M.2 SATA3 and M.2 PCI-Express 2.0 x4 (20 Gb/s)
- Audio: Realtek ALC1220 7.1-Channel High Definition Audio CODEC
- LAN: Intel I211AT Gigabit Ethernet Controller, AQUANTIA AQC107 10 Gigabit LAN;Dual-Band IEEE 802.11a/b/g/n/ac Wireless LAN (2.4/5GHz); Bluetooth 4.2/ 3.0 + High speed class II
- Ports: 3x USB 3.1 Gen 2 Ports (1 Type-A rear, 1 Type-C rear, 1 Type-C front), 10x USB 3.1 Gen 1 Ports (6 rear, 4 front), 4x USB 2.0 Ports (via headers), 2x Antenna Ports, 1x PS/2 Mouse/Keyboard Port, 1x HDMI Port, 1x Optical SPDIF Out Port, 2x RJ-45 LAN Ports with LED, Audio I/O Jacks
- Power Connector: 1x 24-pin ATX Power Connector, 1x 8-pin 12V Power Connector, 1x 4-pin 12V Power Connector
- Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
