Product Description
Specifications

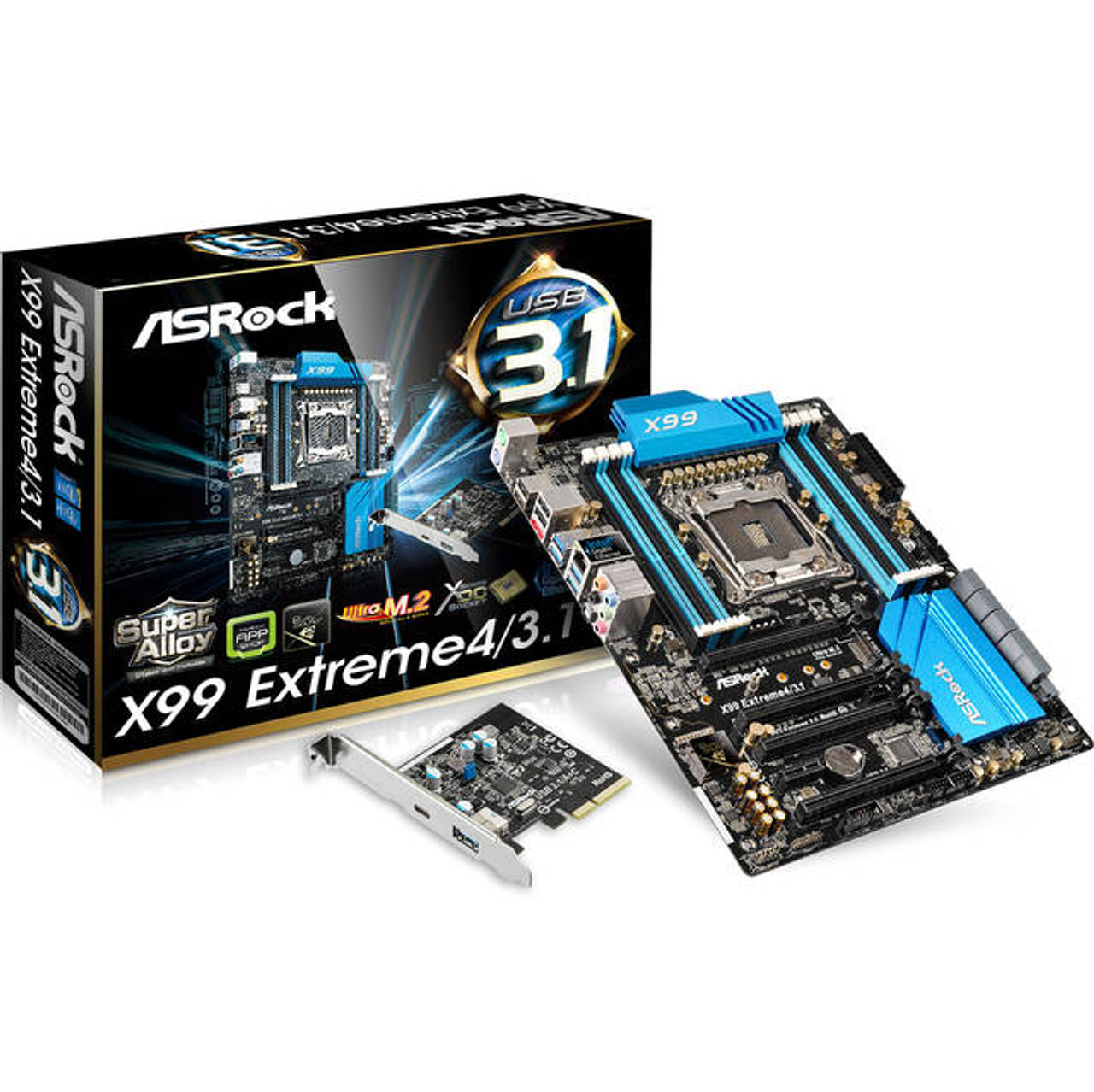

- Mfr Part Number: X99 EXTREME4/3.1
- CPU: LGA 2011-v3
- Support Intel Core i7 and Xeon 18-Core Processors
- Digi Power Design
- 12 Power Phase Design
- Supports Intel Turbo Boost 2.0 Technology
- Supports Untied Overclocking Technology
- Chipset: Intel X99
- Memory: 8x DDR4-3200+(OC)/2933(OC)/2800(OC)/2400(OC)/2133, Quad-Channel, Non-ECC, Unbuffered, Max Capacity up to 128GB
- Slots: 3x PCI-Express 3.0 x16 Slots (one runs at x8), 1x PCI-Express 2.0 x16 Slot (runs at x4), 1x PCI-Express 2.0 x1 Slot
- Multi-Graphics: Supports AMD Quad CrossFireX, 3-Way CrossFireX, CrossFireX and NVIDIA Quad SLI, 3-Way SLI, SLI Technology
- Storage:
- SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10 & Intel Rapid Storage 13; 1x SATA Express 10 Gb/s Connector
- M.2: 1x Ultra M.2 Socket, supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to 3.0 x4 (32 Gb/s)
- Audio: Realtek ALC1150 7.1-Channel High Definition Audio CODEC; Supports Premium Blu-ray Audio
- LAN: Intel I218V Gigabit Ethernet Controller
- Ports: 2x USB 3.1 Ports (1 Type-A, 1 Type-C); 6x USB 3.0 Ports (4 rear, 2 via header); 8x USB 2.0 Ports (4 rear, 4 via headers); 1x PS/2 Mouse Port, 1x PS/2 Keyboard Port, 1x Optical S/PDIF Out, 1x eSATA Port, 1x RJ45 LAN Port, Audio I/O Jacks
- Power Connector: 1x 24pin ATX Power Connector, 1x 8pin 12V Power Connector
- Form Factor: ATX
