Product Description
Specifications

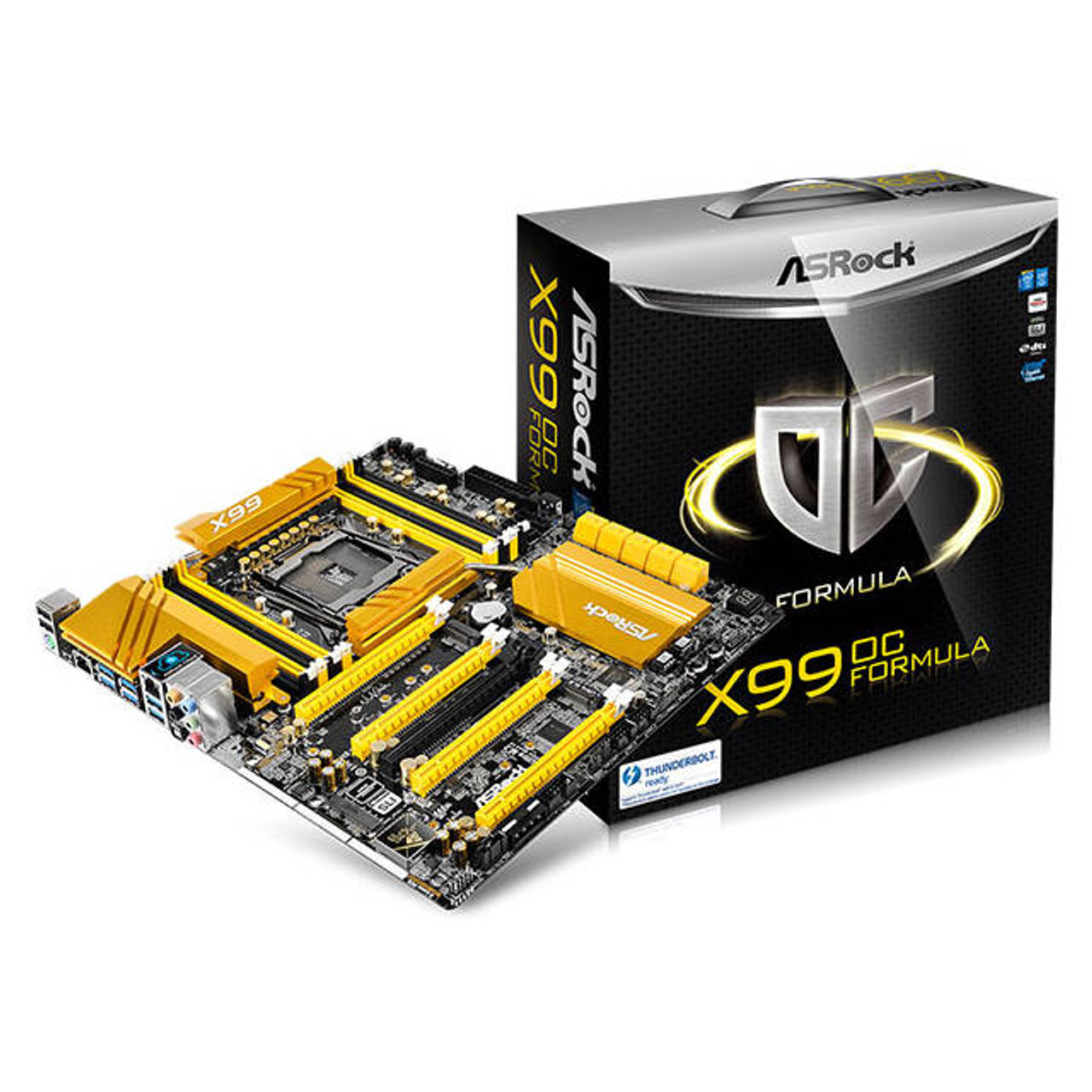

- Mfr Part Number: X99 OC FORMULA
- CPU: LGA 2011-v3
- Supports Intel Core i7 and Xeon 18-Core Processors
- Digi Power Design
- 12 Power Phase Design
- Supports Intel Turbo Boost 2.0 Technology
- Supports Untied Overclocking Technology
- Chipset: Intel X99
- Memory: 8x DDR4-3400+(OC)/ 2933(OC)/ 2800(OC)/ 2400(OC)/ 2133/ 1866 DIMM Slots, Quad-Channel, Non-ECC, Unbuffered, Max Capacity up to 128GB; Supports DDR4 ECC x8 (8 bit) RDIMM/x8 (8 bit) UDIMM with Intel Xeon Processors E5 Series in the LGA 2011-v3
- Slots: 5x PCI-Express 3.0 x16 Slots (single at x16, dual at x16/x16, triple at x8/x8/x16, quad at x8/x8/x8/x8), 1 x Half Mini-PCI Express Slot
- Multi-Graphics: Supports AMD Quad CrossFireX, 4-Way CrossFireX, 3-Way CrossFireX, CrossFireX and NVIDIA Quad SLI, 4-Way SLI, 3-Way SLI, SLI Technology
- Storage:
- SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
- M.2: 1x Ultra M.2 Port, Supports M.2 PCI-Express 3.0 x4 (32 Gb/s); 1x M.2 (NGFF) Port, Support M.2 SATA3 & M.2 PCI-Express 2.0 x4 (20 Gb/s)
- Audio: Realtek ALC1150 7.1-Channel High Definition Audio CODEC, Supports Premium Blu-ray Audio
- LAN: Qualcomm Atheros AR8171 PCI-Express x1 and Intel I218-V Gigabit Ethernet Controllers
- Ports: 11x USB 3.0 Ports (6 rear, 4 via headers, 1 Vertical Type A), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x PS/2 Keyboard/Mouse Port, 1x Optical S/PDIF Out, 2x RJ45 LAN Ports, Audio I/O Jacks
- Power Connector: 1x 24pin ATX Power Connector, 1x 8pin 12V Power Connector, 1x 4pin 12V Power Connector, 1 x PCI-Express Power Connector
- Form Factor: EATX
