Product Description
Specifications

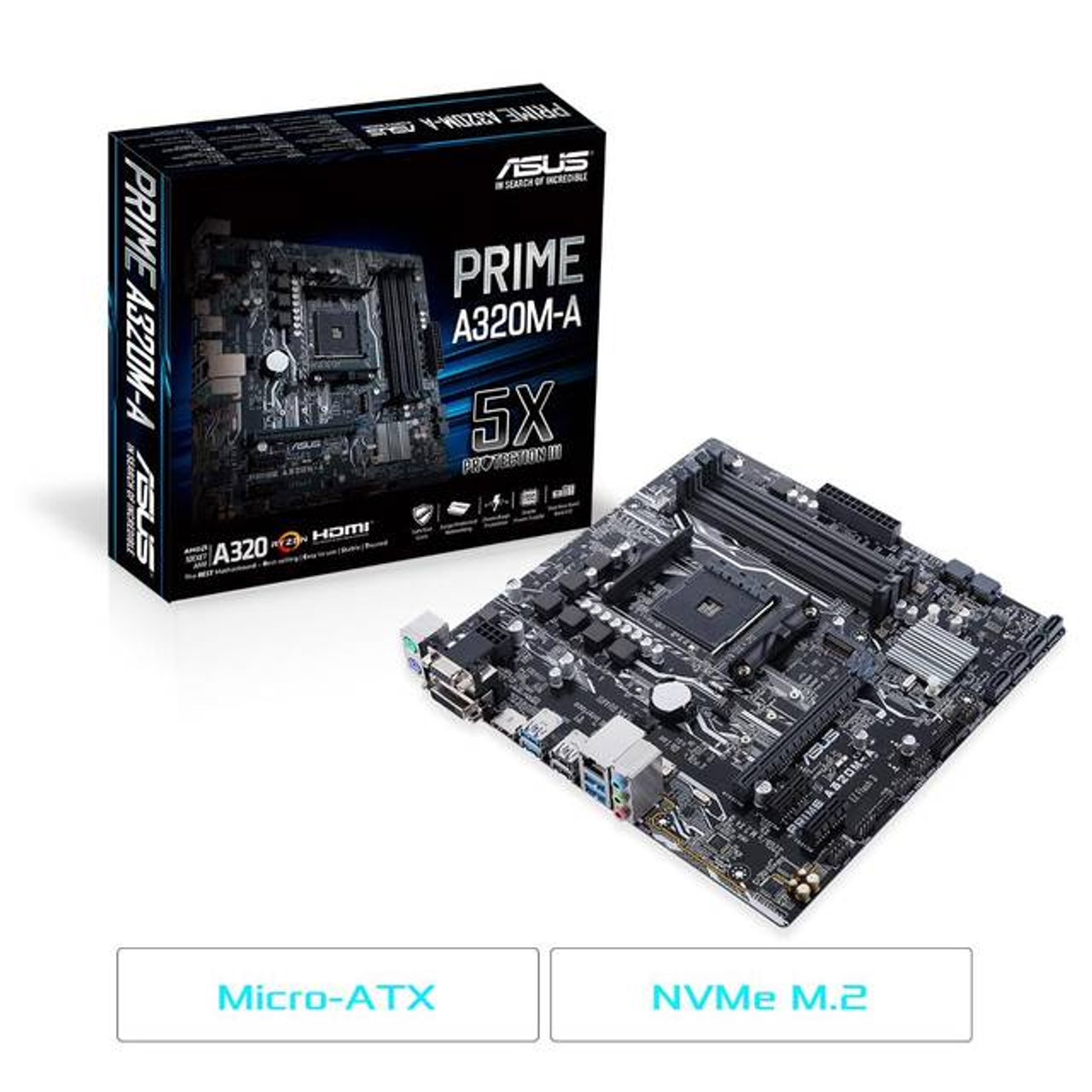

- Mfr Part Number: PRIME A320M-A
- CPU: Socket AM4
- Supports AMD Ryzen/7th Generation A-series/Athlon Processors
- Supports CPU up to 8 Cores
- Chipset: AMD A320
- Memory: 4x DDR4-2666/ 2400/ 2133 MHz DIMM Slots, ECC/Non-ECC, Un-buffered, Max Capacity of 64GB (AMD Ryzen Processors); 4x DDR4-2400/ 2133 MHz DIMM Slots, Dual Channel, Non-ECC, Un-buffered, Max Capacity of 64GB (AMD 7th Generation A-series/Athlon Processors)
- Slots: 2x PCI-Express 3.0/2.0 x16 Slots (one runs at x8), 2x PCI-Express 2.0 x1 Slots
- Storage:
- SATA: 6x SATA3 Ports
- M.2: 2x M.2 Ports (w/ M Key), one supports type 2242/ 2260/ 2280 PCIE 3.0 x4 and SATA mode, one supports type 2242/ 2260/ 2280 PCIE 3.0 x2 and SATA mode
- Audio: Realtek ALC 887-VD2 8-Channel High Definition Audio CODEC
- LAN: Realtek 8111H Gigabit LAN Controller
- Ports: 6x USB 3.1 Gen 1 Ports (4 rear, 2 at mid-board), 6x USB 2.0/1.1 Ports (2 rear, 4 at mid-board), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port, 3x Audio jacks support 8-channel audio output
- Power Connector: 1x 24-pin EATX Power Connector, 1x 8-pin ATX 12V Power Connector
- Form Factor: MicroATX,ÌâåÊ9.60 x 9.45 inch /ÌâåÊ24.4 x 24.0 cm
