Product Description
Specifications

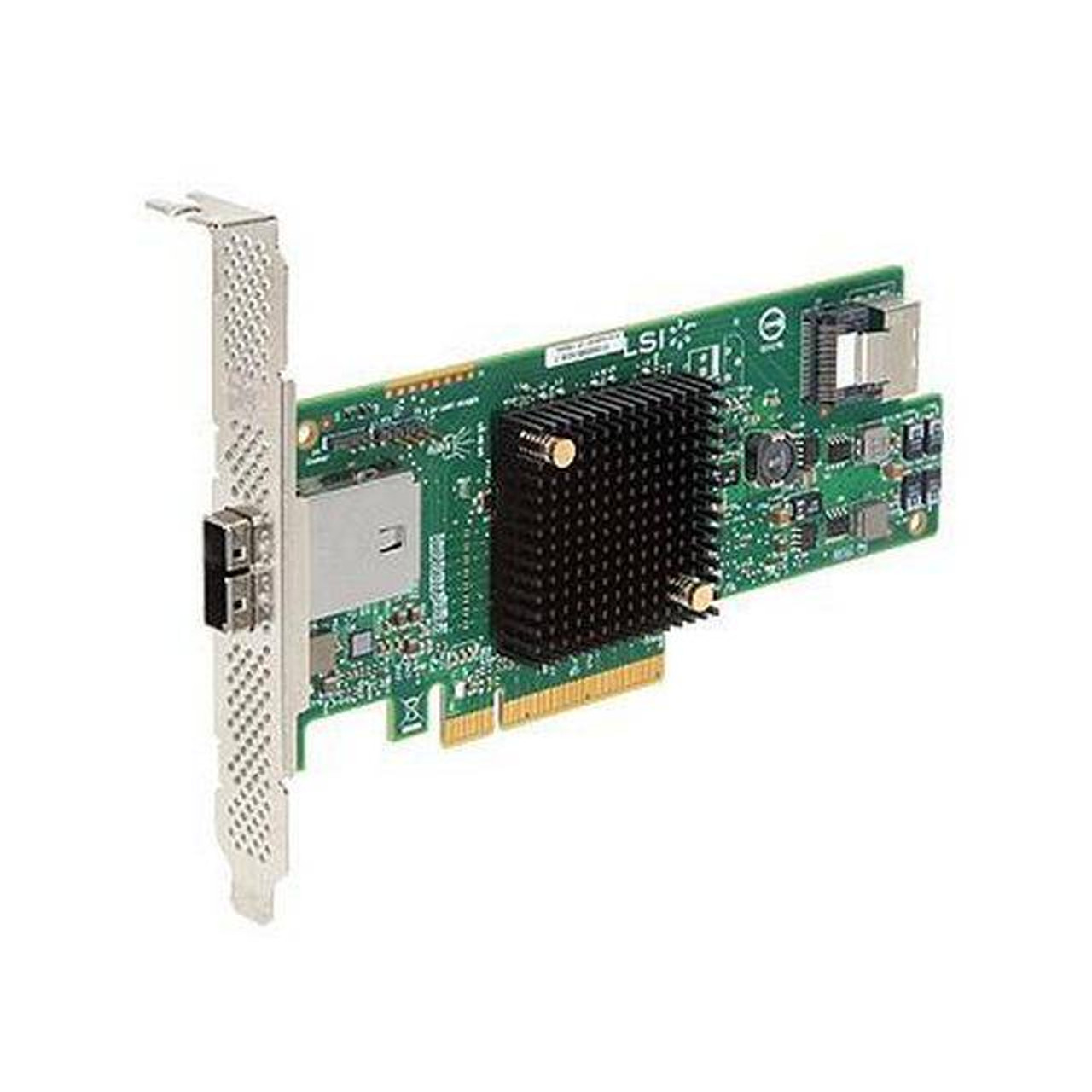

- Mfr Part Number: LSI00303 (9207-4I4E SGL)
- Features:
- 4 Internal and 4 external 6Gb/s SAS+SATA ports
- One x4 mini-SAS internal connector (SFF8087), One x4 mini-SAS external connector (SFF8088)
- LSISAS2308 6Gb/s SAS+SATA Controller
- Supports up to 256 SAS or SATA end devices
- Supports SSDs, HDDs and tape drives
- Provides state of the art connectivity for servers and appliances with internal storage and the ability to add external storage
- 8 lanes of PCI Express 3.0 provides fast signaling for high-bandwidth applicationss
- High performance with 6Gb/s data transfer rates
- Connectors: 1x Mini-SAS SFF8087 Internal Connector, 1x Mini-SAS SFF8088 External Connector
- Device Support: 256 SAS +Â SATA devices
- Host Bus Type: PCI-Express 3.0 x8
- PCI Data Burst Transfer Rates: Half Duplex X8, PCIe, 4000 MB/s
- Storage Connectivity/Data Transfer Rates: 8 ports; 6Gb/s SAS 2.1 Compliant
- SAS Bandwidth: Half Duplex; 600 MB/s per lane
- Port Configurations:Â 4 ea, x1 internal ports (individual drives); 4 ea, x1 external ports; 1ea, x4 external wide port
- I/O Controller: LSI SAS2308/ Fusion MPT 2.0
- Brackets: Full height and low profile
- Cable Support: Passive Copper
- PCI Card Type: 3.3 V Add-in Card
- Operating Voltage: +12V +/-8%; 3.3V +/-9%
- PCI Power (Nominal): 9.8W
- MTBF: > 2,000,000 HoursÂ
- OS Support: Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD
- Regulatory Certifications: EMC -Â Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Korea (N-B 2-0001-404); Safety -Â EN60950; RoHS 6 of 6; WEEE
- Dimensions: Low Profile, 2.6 x 6.6 inch
- Package Contents: Host Bus Adapter, Documentation CD
- RoHS Compliant
