Product Description
Main Specifications:

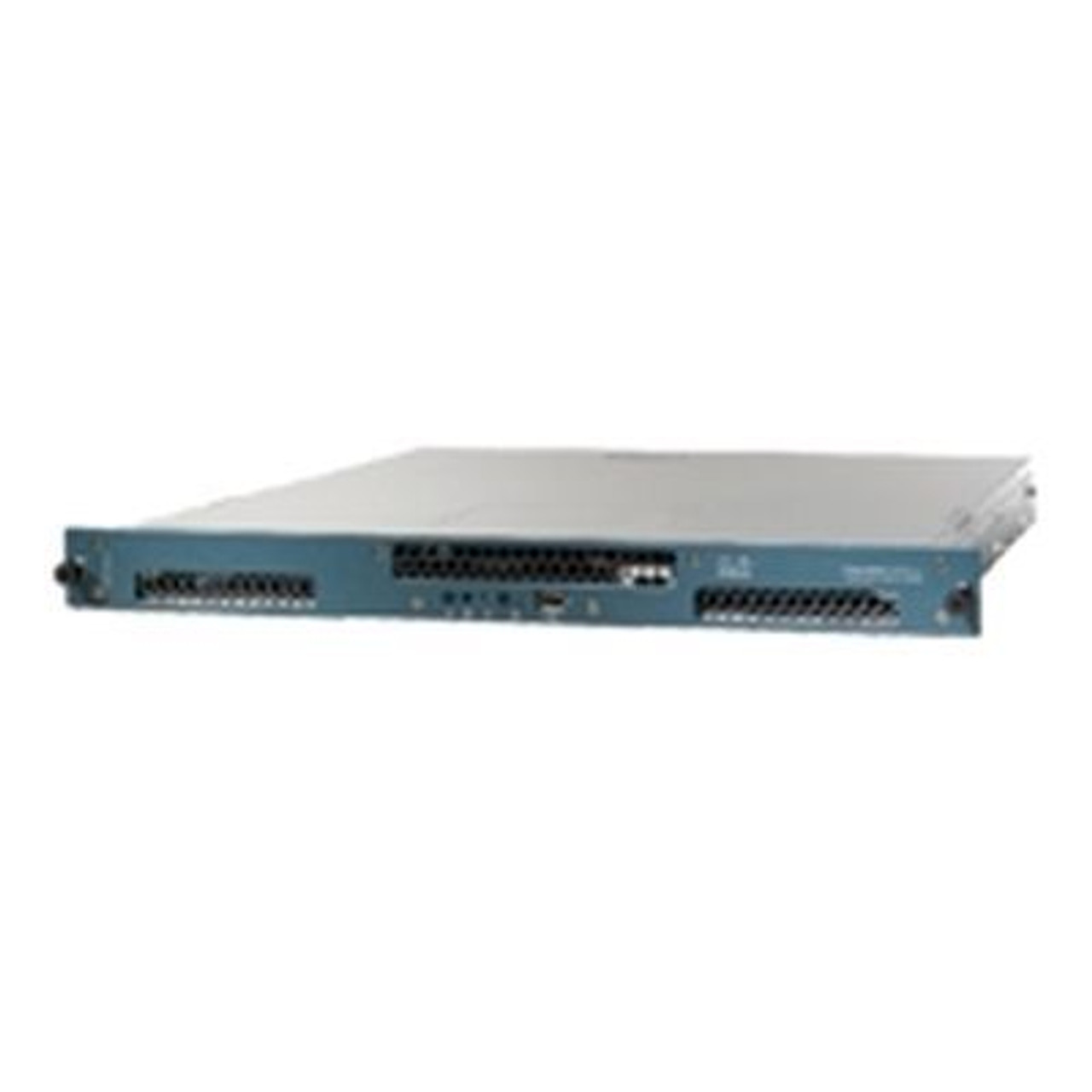

Device Type | Network management device |
Form Factor | Rack-mountable - 1U |
Ports Qty | 4 |
Data Link Protocol | Gigabit Ethernet |
Capacity | Manageable access points : 100 |
Dimensions (WxDxH) | 44.3 cm x 40 cm x 4.5 cm |

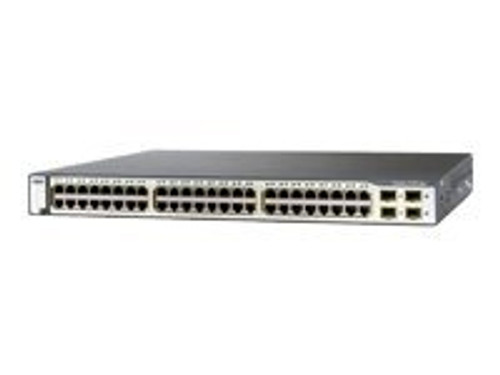

Bundled with | 3x Cisco Catalyst 3750-48PS |
General | |
Device Type | Network management device |
Height (Rack Units) | 1U |
Width | 44.3 cm |
Depth | 40 cm |
Height | 4.5 cm |
Bundled with | 3x Cisco Catalyst 3750-48PS |
Networking | |
Form Factor | Rack-mountable |
Ports Qty | 4 |
Data Link Protocol | Gigabit Ethernet |
Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP, IPSec |
Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS |
Capacity | Manageable access points : 100 |
Status Indicators | Link activity, power, link OK, status, alarm |
Features | DHCP support, BOOTP support, ARP support, VLAN support, Syslog support, Quality of Service (QoS) |
Encryption Algorithm | RSA, RC4, MD5, AES, 128-bit WEP, SSL, TLS 1.0, 104-bit WEP, TKIP, WPA, WPA2, PKI, AES-CCMP |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, X.509 |
Expansion / Connectivity | |
Expansion Slots | 2 (total) / 2 (free) x expansion slot 4 (total) / 4 (free) x |
Interfaces | 1 x management - DB-9 1 x 100Base-TX (management) |
Miscellaneous | |
Compliant Standards | VCCI, EN 60950, EN55022, ICES-003, EN55024, UL 60950-1 |
Power | |
Power Device | Internal power supply - hot-plug |
Installed Qty | 1 |
Max Supported Qty | 2 |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 95% |
