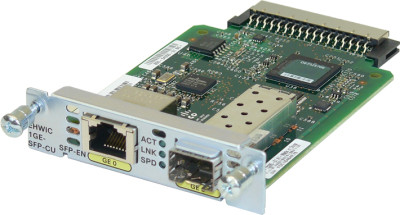

Product Description
| Ports & interfaces | |
|---|---|
| Fiber ports quantity | 1 |
| Internal | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | Ethernet/Fiber |
| Connectivity technology | Wired |
| Networking | |
| VLAN tagging | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Jumbo frames | 9576 |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000BaseT(X) |
| Networking standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.2,IEEE 802.3,IEEE 802.3ab,IEEE 802.3x,IEEE 802.3z |
| Jumbo frames support | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wireless LAN features | |
| Wi-Fi | No |
| Antenna | |
| Quality of Service (QoS) support | Yes |
| Technical details | |
| Compatible products | Cisco 3945E ISR, 3925E ISR, 3945 ISR, 3925 ISR, 2951 ISR, 2921 ISR, 2911 ISR, 2901 ISR, 1941W ISR, 1941 ISR, 1921 ISR |
| Quality of Service (QoS) support | Yes |
| Colour of product | Green, Stainless steel |
| Indication | |
| LED indicators | Yes |
| Design | |
| Colour of product | Green, Stainless steel |
| LED indicators | Yes |
| Performance | |
| Compatible products | Cisco 3945E ISR, 3925E ISR, 3945 ISR, 3925 ISR, 2951 ISR, 2921 ISR, 2911 ISR, 2901 ISR, 1941W ISR, 1941 ISR, 1921 ISR |
| Weight & dimensions | |
| Width | 3.11" (79 mm) |
| Depth | 4.8" (122 mm) |
| Height | 0.827" (21 mm) |
| Certificates | |
| Certification | FCC, ICES-003, EN55022, CISPR22, AS/NZS 3548, VCCI, EN 300386, EN61000-3-3, EN61000-3-2 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Number of products included | 1 pcs |
| Other features | |
| Supported protocols | HSRP, VRRP, GLBP, IGMP, GMP |
