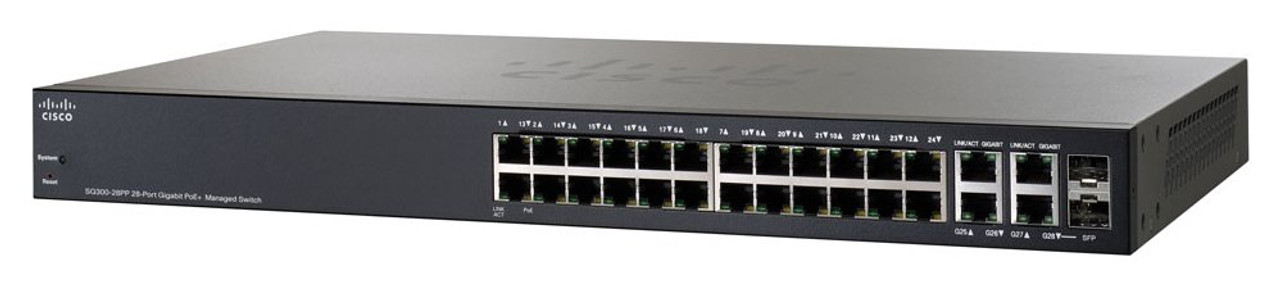

Product Description
| Management features | |
|---|---|
| Switch type | Managed network switch |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 26 |
| Networking | |
| Networking standards | IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| IGMP snooping | Yes |
| Flow control support | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| Broadcast storm control | Yes |
| Data transmission | |
| Throughput | 41.67 Mpps |
| Number of static routes | 512 |
| MAC address table | 16384 entries |
| Switching capacity | 56 Gbit/s |
| Number of VLANs | 4096 |
| Number of queues | 4 |
| Security | |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS,SSH,SSH-2,SSL/TLS |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Protocols | |
| Management protocols | LACP, IGMP v1, 2, SNMP 1, 2c, 3 |
| Switching protocols | GVRP, GARP, DHCP |
| Supported network protocols | TCP/IP, IPv4/v6, HTTP/HTTPS, UDP, SSH, BPDU, IPSG, SNTP, TFTP, Bonjour |
| Design | |
| Colour of product | Black |
| Ventilation fan(s) | 2 |
| LED indicators | Yes |
| Certification | CSA, CE, FCC |
| Performance | |
| Packet buffer memory | 8 MB |
| Noise level | 40.4 dB |
| Mean time between failures (MTBF) | 310755 h |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Power | |
| AC input voltage | 100-240 |
| AC input frequency | 50/60 |
| Power consumption (typical) | 222 W |
| Technical details | |
| Colour of product | Black |
| Ventilation fan(s) | 2 |
| Noise level | 40.4 dB |
| Mean time between failures (MTBF) | 310755 h |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 180 W |
| Power over Ethernet (PoE) | Yes |
| Certificates | |
| Certification | CSA, CE, FCC |
| Memory | |
| Packet buffer memory | 8 MB |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Indication | |
| LED indicators | Yes |
| Operational conditions | |
| Heat dissipation | 740 BTU/h |
| Weight & dimensions | |
| Width | 17.3" (440 mm) |
| Depth | 10.1" (257 mm) |
| Height | 1.75" (44.5 mm) |
| Weight | 8.71 lbs (3.95 kg) |
| Packaging data | |
| Quick start guide | Yes |
| Cables included | AC, Serial |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC, Serial |
