Product Description
General Specifications
| Manufacturer | HP |
| Manufacturer | J9265A |
| Manufacturer UPC # | 0884420076032 |

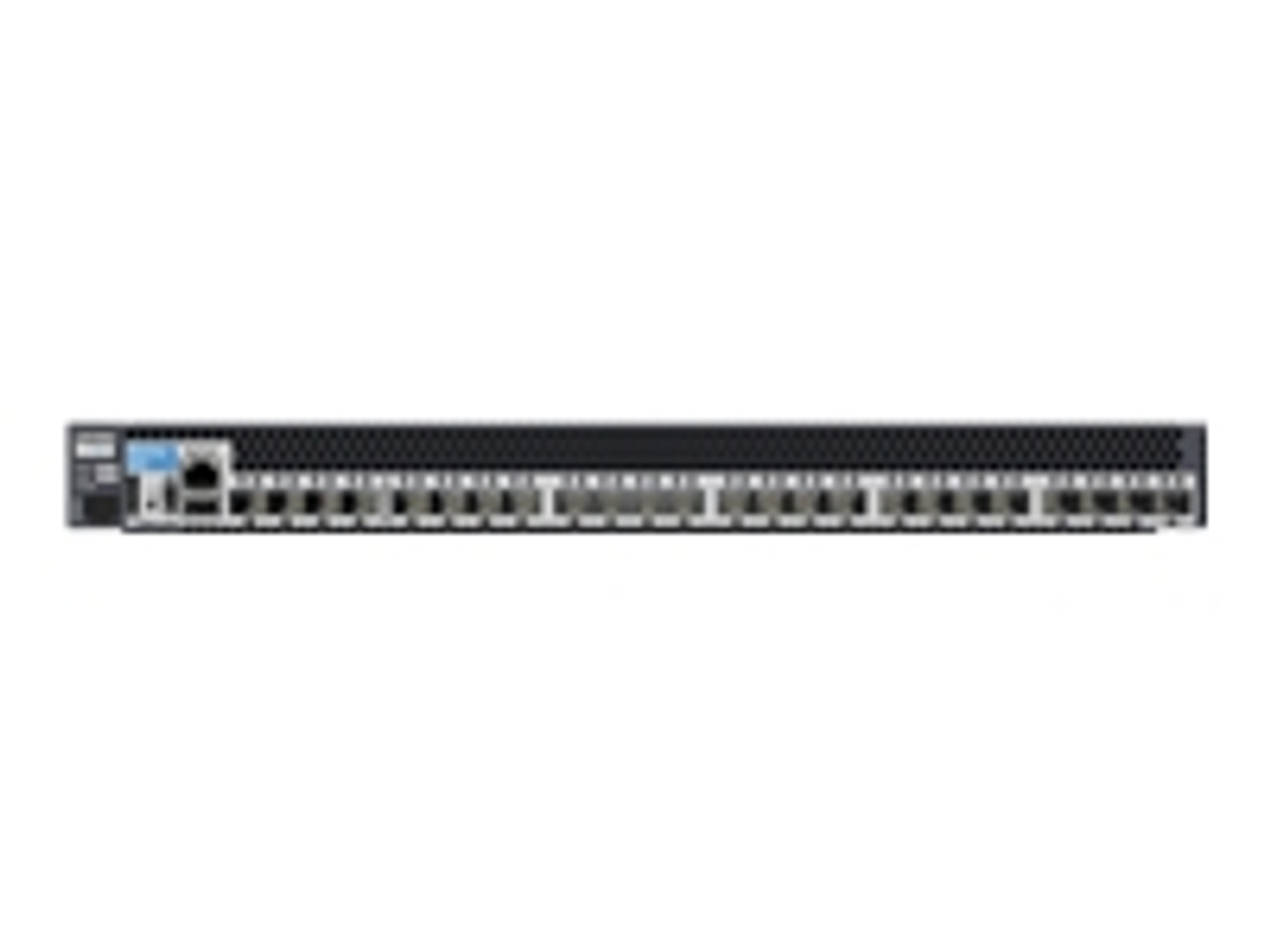

| Product Description | HP 6600-24XG Switch - Switch - managed - 24 x 10 Gigabit SFP+ - rack-mountable |
| Device Type | Switch - 24 ports - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 24 x 10 Gigabit SFP+ |
| Performance | Throughput : 240.2 Mpps Routing/switching capacity : $535 ($535 (322.8 Gbp))s Switching fabric bandwidth : $572 ($572 (345.6 Gbp))s |
| Capacity | Routing table entries : 10000 |
| MAC Address Table Size | 64K entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | RIP-1, RIP-2, static IP routing, MLDv2, MLD |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, SSH-2, CLI, XRMON |
| Features | Flow control, DHCP support, ARP support, VLAN support, IGMP snooping, traffic shaping, IPv6 support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, front to back airflow, STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, LLDP support, Port Security, dynamic ARP protection, DHCP protection, Class of Service (CoS), sFlow v5 |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1AX |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Power Redundancy | Optional |
| Approximate Dimensions (WxDxH) | 17.4 in x 25.3 in x 1.7 in |
| Approximate Weight | 19.7 lbs |
| Localization | English / United States |
/Ports Number of Ports: 24 Number of LAN Ports: 1 Number of Network (RJ-45) Ports: 2 Memory Standard Memory: 256 MB Memory Technology: DDR SDRAM Flash Memory: 1 GB I/O Expansions Expansion Slots:: 24 XFP Slots 24 Physical Characteristics Form Factor: 1U Rack-mountable Height: 1.7" Width: 25.3" Depth: 17.4"
