Product Description
| Ports & interfaces | |
|---|---|
| Supported storage drive interfaces | SAS, Serial ATA II, Serial ATA III |
| Host interface | PCI Express x8 |
| PCI Express slots version | 2.0 |
| PCI Card form factor | Half-height (low-profile) |
| Internal mini-SAS ports | 8 |
| Performance | |
| RAID ARK ID | 55793 |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Internal memory | 1024 MB |
| SSD support | Yes |
| Internal memory type | DDR3 |
| Memory clock speed | 800 MHz |
| Processor family | Dual-Core |
| Processor frequency | 800 MHz |
| S.M.A.R.T. support | Yes |
| Number of devices supported | 128 |
| Data transfer rate | 6 Gbit/s |
| Compatible battery backup options | AXXRSBBU9 |
| Compatible products | Workstation Board S5520SC, W2600CR2; Server Board S5520UR, S5520HC, S5500BC, S5500WB, S5500HCV, S5500HV, S3420GPLC, S5500WB12V, S3420GPLX, S3420GPV, S3420GPRX, S5520HCT, S1200BTL, S1200BTS, S2600GZ, S2600GL, S2600CP2, S2600CP4, S2600CO4, S2600IP4, S5520URT, S2400SC2, S2400EP2, S2400EP4, S2400GP2, S2400GP4, S1400FP2, S1400SP2, S1400SP4, S2600COE, S2600CP2IOC, S2600CP4IOC, S2600COEIOC, S1400FP4; Workstation System SC5650SCWS, P4304CR2LFKN, P4304CR2LFJN, P4304CR2LFGN; Server System SR1630BCR, SC5650BCDPR, SC5650HCBRPR, SR2625URLXR, SR2625URLXT, SR2625URBRPR, SR1600URR, SR1600URHSR, SR1625URR, SR1625URSASR, SR2600URBRPR, SR2600URLXR, SR2600URSATAR, SR1695WBAC, SR1695WBDC, SR1690WBR, R1304GZ4GC, R1208GZ4GC, R1208GL4DS, R1208GZ4GCSAS, R2208GZ4GC, R2216GZ4GC, R2308GZ4GC, R2208GL4GS, R2308GL4GS, R2312GL4GS, R2208GZ4GC10G, R2224GZ4GCSAS, R2312GZ4GCSAS, R2224IP4LHPC, R2216IP4LHPC, R2312IP4LHPC, P4308CP4MHEN, P4308CP4MHGC, P4208CP4MHGC, P4224IP4LHKC, P4216IP4LHKC, P4216IP4LHJC, P4208IP4LHGC, P4308IP4LHKC, P4308IP4LHJC, P4308IP4LHGC, P4304SC2SFEN, P4304SC2SHDR, R1304BB4DC, R1208BB4DC, R2208BB4GC, R2216BB4GC, R2308BB4GC, R2216GZ4GCLX, R2208GZ4IS, R2208IP4LHPC, R2308IP4LHPC, R2224BB4GCSAS, R2312BB4GCSAS, R2308SC2SHFN, R2308SC2SHDR, R2312SC2SHGR, P4308IP4LHJCL, R2224GZ4GC4, R2312GZ4GC4, R2312BB4GS9, R2208BB4GS9, R1304BB4GS9, R1208BB4GS9 |
| Design | |
| Form factor | LP MD2 |
| Power | |
| Voltage | +3.3 |
| Technical details | |
| Product type | 16 |
| Processor model | LSI2208 |
| Packaging content | Raid Controller, Quick Start User Guide, 1 standard & 1 Low Profile bracket. No SAS Cables are included. |
| Data transfer rate | 6144 Mbit/s |
| Status | Launched |
| RAID keying | PCIe x8 Connector |
| RAID connector orientation | Top |

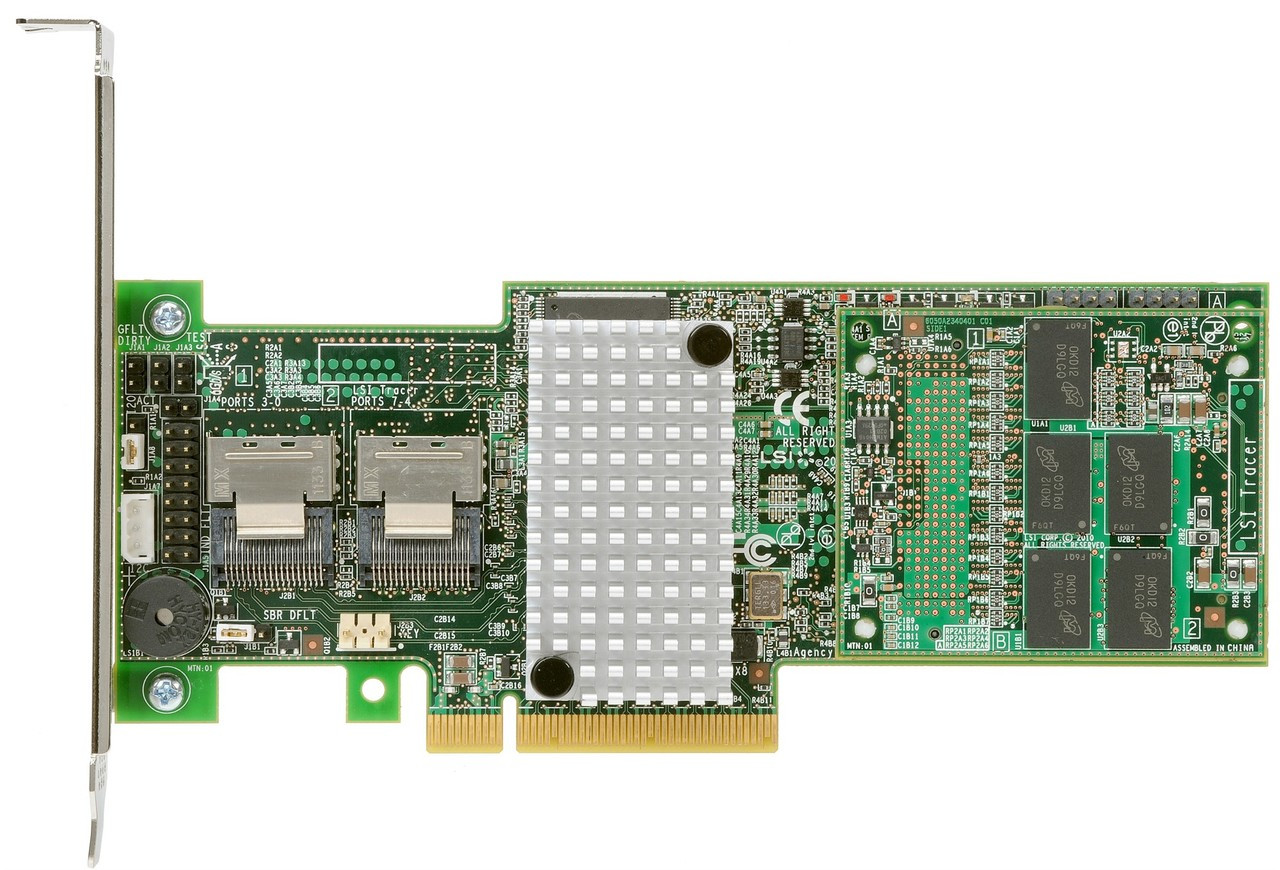

| Product name | Intel RAID Controller RS25DB080 |
| PCI Express host interface | PCIe x8 Gen3 |
| Market segment | SRV |
| Launch date | 2011-03-01T00:00:00 |
| Born on date | Q1'11 |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Weight & dimensions | |
| Width | 2.52" (64 mm) |
| Depth | 6.61" (168 mm) |
| Other features | |
| Number of products included | 1 pcs |
| Intel long life | No |
| Compatible operating systems | Windows, Linux, Solaris, VMware |
| Supported devices | SAS/SATA |
| Other features | Support for Premium Feature Options |
| Internal ports | 8 |
