Product Description
Specifications
Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 01CV830

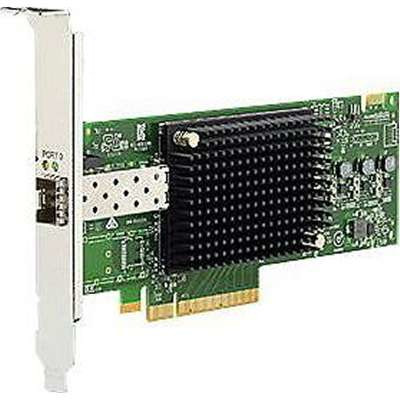

Product Name: Emulex 16Gb Gen6 FC Single-port HBA
Marketing Information:
Manufacturer Website Address: http://www.lenovo.com/us/en/
Brand Name: Lenovo
Product Type: Fibre Channel Host Bus Adapter
Technical Information
Total Number of Fibre Channel Ports: 1
Data Transfer Rate: 16 Gbit/s
Fiber Optic Cable Standard:
Fiber Mode Supported: Multi-mode
Host Interface: PCI Express 3.0 x8
I/O Expansions
Expansion Slot Type: SFP+
Physical Characteristics
Form Factor: Plug-in Card
Card Height: Low-profile
Height: 2.7"
Width: 6.6"
Miscellaneous
Compatibility:
Environmentally Friendly: Yes
Environmental Certification:
Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 01CV830
Product Name: Emulex 16Gb Gen6 FC Single-port HBA
Marketing Information:
The Emulex 16 Gb Generation 6 Fibre Channel (FC) host bus adapters (HBAs) are an ideal solution when requiring high-speed data transfer in storage connectivity for virtualized environments, data backup, and mission-critical applications.
This product guide describes the Emulex HBAs and provides essential pre-sales information to understand the products, their key features and specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, and IT architects who want to learn more about the adapters and consider their use in IT solutions.
Manufacturer Website Address: http://www.lenovo.com/us/en/
Brand Name: Lenovo
Product Type: Fibre Channel Host Bus Adapter
Technical Information
Total Number of Fibre Channel Ports: 1
Data Transfer Rate: 16 Gbit/s
Fiber Optic Cable Standard:
- 62.5/125 µm
- 50/125 µm
Fiber Mode Supported: Multi-mode
Host Interface: PCI Express 3.0 x8
I/O Expansions
Expansion Slot Type: SFP+
Physical Characteristics
Form Factor: Plug-in Card
Card Height: Low-profile
Height: 2.7"
Width: 6.6"
Miscellaneous
Compatibility:
Lenovo Storage Systems:
- x3500 M5 (5464)
- x3550 M5 (5463)
- x3650 M5 (5462)
- x3850 X6/x3950 X6 (6241, E7 v3)
- nx360 M5 (5465)
- ST550 (7X09/7X10)
- SR530 (7X07/7X08)
- SR550 (7X03/7X04)
- SR570 (7Y03/7Y04)
- SR590 (7X98/7X99)
- SR630 (7X01/7X02)
- SR650 (7X05/7X06)
- SR850 (7X18/7X19)
- SR860 (7X69/7X70)
- SR950 (7X11/12/13)
- SD530 (7X21)
- x3550 M5 (8869)
- x3650 M5 (8871)
- x3850 X6/x3950 X6 (6241, E7 v4)
- nx360 M5 (5465, E5-2600 v4)
- nx360 M5 (5465)
Environmentally Friendly: Yes
Environmental Certification:
- China RoHS
- RoHS
