Product Description

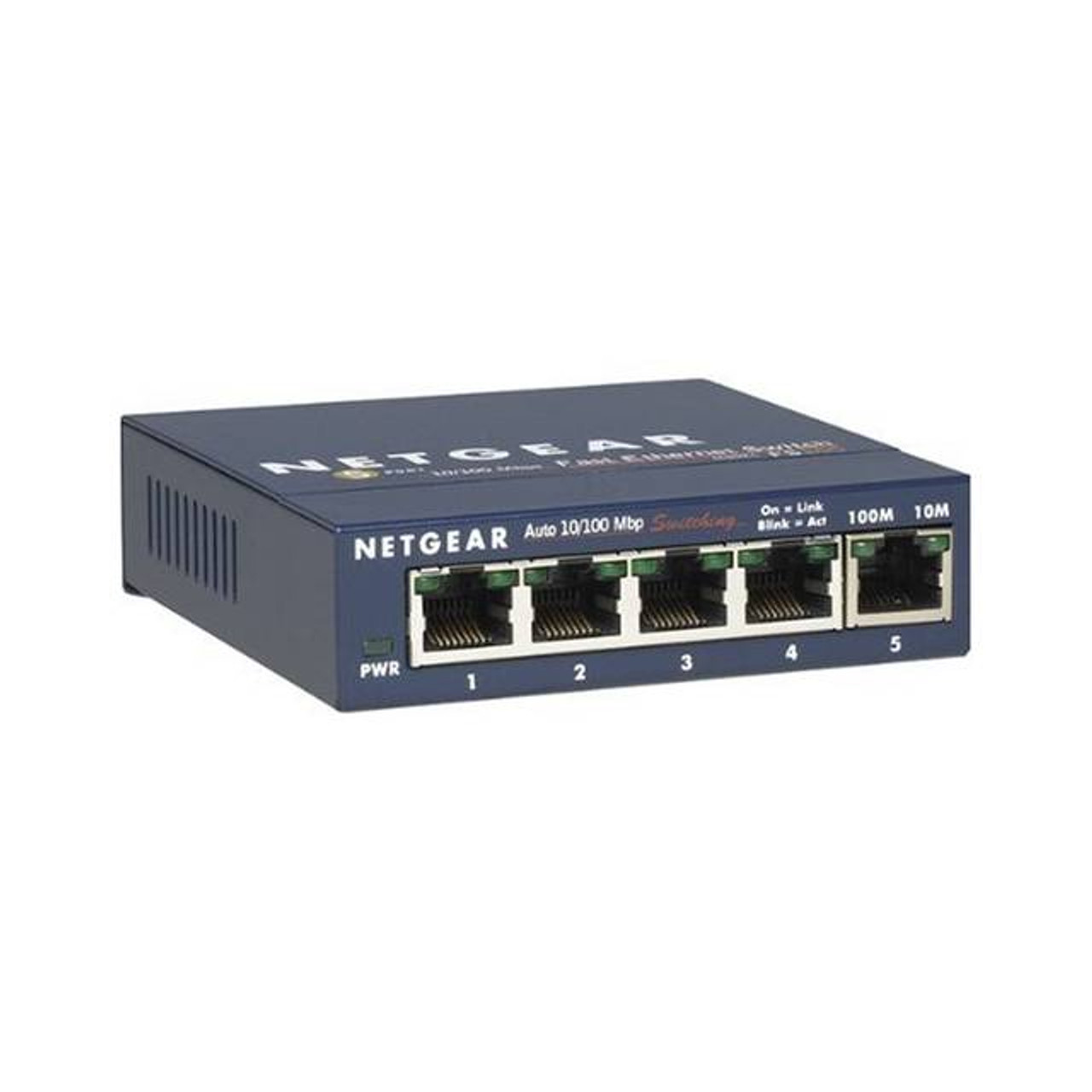

Specifications- Mfr Part Number: FS105NA
- Network Ports: 5 switched auto-speed-sensing UTP ports
- Standards Compliance:
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE 802.3x Full-duplex Flow Control
- Performance Specifications:
- Forwarding modes: Store-and-forward
- Network latency: Less than 20 s for 64-byte frames in store-and-forward mode for100 Mbps to 100 Mbps transmission
- Buffer memory: 64 KB
- Address database size: 1,000
- Addressing: 48-bit MAC address
- Mean Time Between Failure (MTBF): 390,000 hours (~40 years)
- Safety Agency Approvals: UL listed (UL 1950)/cUL; IEC950/EN60950
- Status LEDs: Power, Link, speed, and activity indicators built into each RJ-45 port
- Electromagnetic Emissions
- CE mark, commercial
- FCC part 15 Class A
- EN55 022 (CISPR22), Class A
- VCCI Class A
- C-Tick
- AC Power: 7.5W (7.5VDC, 1A)
- Dimensions: 3.7 x 4.1 x 1.1 in (94 x 103 x 27 mm)
- Weight: 0.62 lbs (0.28 kg)
- Metal Case
