Product Description
Manufacturer: Supermicro Computer, Inc
Manufacturer Part Number: SYS-5039MS-H8TRF
Manufacturer Website Address: http://www.supermicro.com
Brand Name: Supermicro
Product Line: SuperServer
Product Model: 5039MS-H8TRF

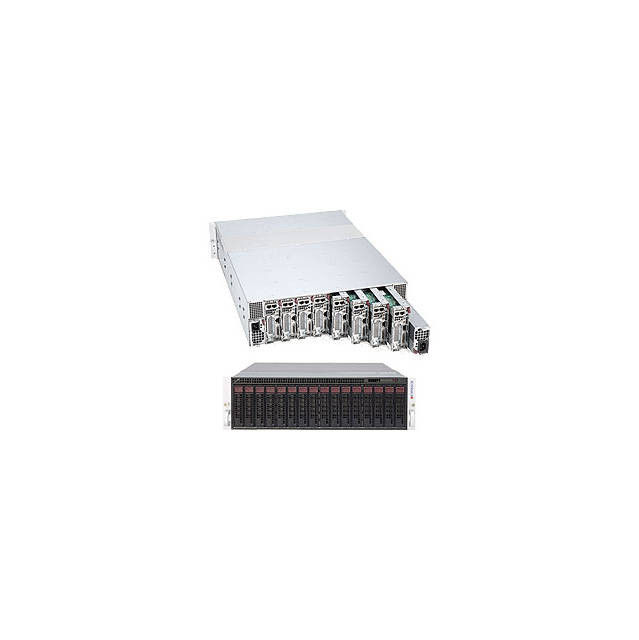

Product Name: SuperServer SYS-5039MS-H8TRF (Black)
Marketing Information:
The Supermicro MicroCloud modular server system provides the high density, performance, efficiency and cost savings required for today's demanding server deployments. The 12/8 modular server nodes are conveniently integrated into a compact 3U chassis that is only 29.5/23.2 inches deep, saving over 72% of rack space when compared to traditional 1U servers optimized for the best performance per rack. The cable-less, hot-pluggable server nodes operate independently. Each node provides up to 128GB of DDR3-1600/1333MHz of ECC LR/RDIMM memory, one PCI-E 3.0 x8 expansion slot for low-profile add-on card, and two 3.5" or four 2.5" SATA 3.0 (6Gbps) hard disk drives. The MicroCloud system utilizes redundant Platinum Level (94%) high-efficiency power supplies and sophisticated cooling zone controls for a Green energy profile. Each node is powered by processors from either the newest Intel® Xeon® E3-1200v2 & E3-1200 v3 families (5037MC and 5038ML models) or E5-2600 family up to 130W TDP; or the 8/4-Core AMD Opteron™ 3000 series
Product Type: Barebone System
Processor & Chipset
Number of Nodes: 8
Number of Processors Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Xeon
64-bit Processing: Yes
Chipset Manufacturer: Intel
Chipset Model: C236
Memory
Maximum Memory: 64 GB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-2133/PC4-17000
Number of Total Memory Slots: 4
Controllers
Controller Type: Serial ATA/600
Display & Graphics
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2400
Network & Communication
Ethernet Technology: Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 2
Number of 3.5" Bays: 2
Number of Total Expansion Slots: 2
Number of PCI Express x8 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 3
Number of USB 3.0 Ports: 1
Number of SATA Interfaces: 2
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 1600 W
Physical Characteristics
Color: Black
Form Factor: Rack-mountable
Rack Height: 3U
Height: 5.2"
Width: 17.3"
Depth: 23.2"
Weight (Approximate): 62.19 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
