Product Description
Specifications

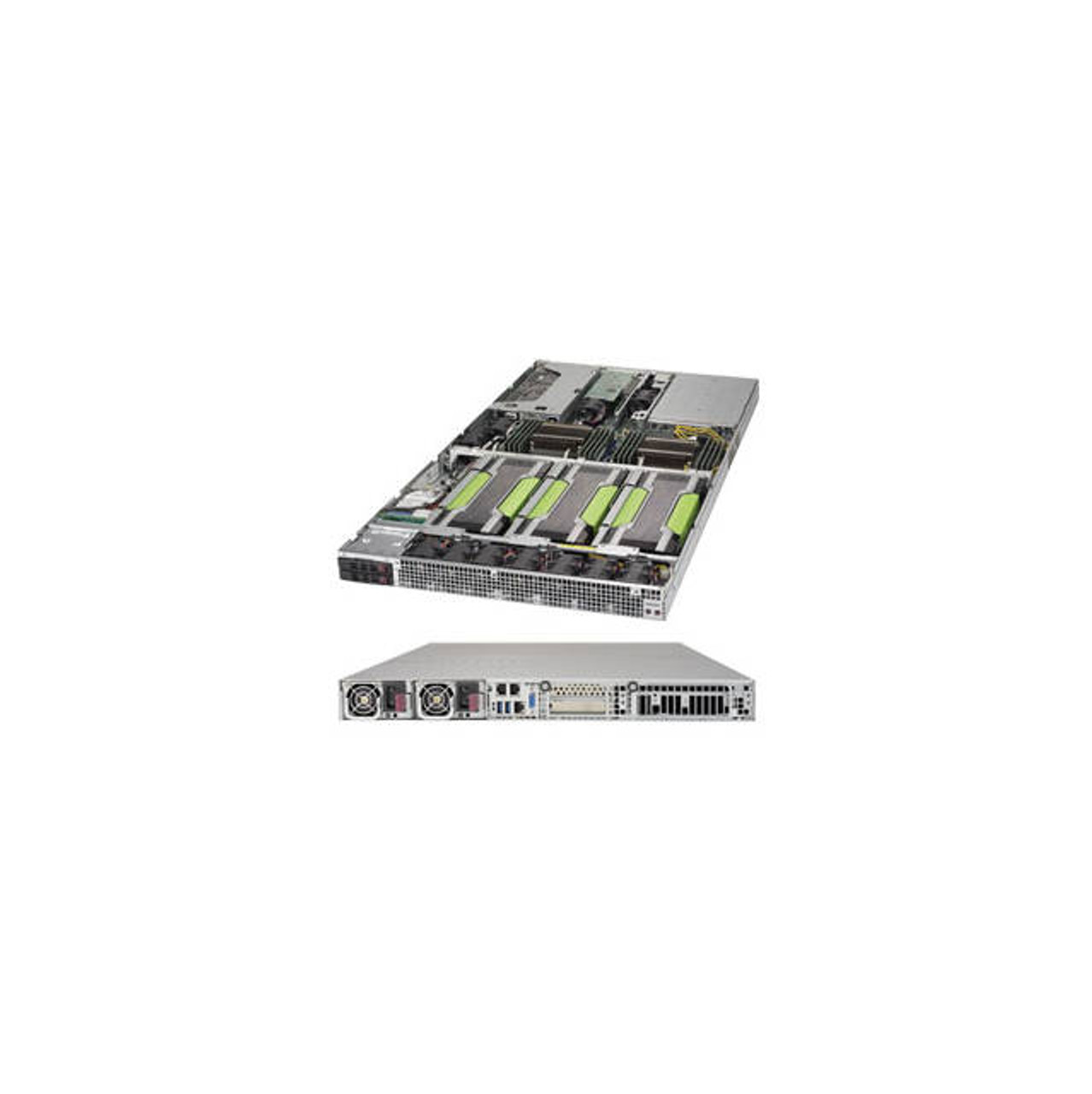

- Mfr Part Number: SYS-1028GQ-TRT
- Motherboard: Super X10DGQ
- Processor: Dual LGA2011
- Support Intel Xeon E5-2600 v3 Family Processors
- Support up to 18 Cores
- Cache up to 45MB
- QPI up to 9.6 GT/s
- Support up to 145W TDP
- Chipset: Intel C612 Express
- Memory: 16x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Supports up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG Memory
- Slots: 4x PCI-Express 3.0 x16 Slots (4x GPU/Xeon Phi cards optional), 2x PCI-Express 3.0 x16 Slot (Low-profile, runs at x8)
- SATA: 4x SATA3 Ports, Support RAID 0, 1, 5, 10
- Video: Aspeed AST2400 BMC Graphic
- LAN: Dual Port 10-Gigabit Ethernet Controller
- Drive Bays: 2x 2.5" Hot-swap Drive Bays, 2x 2.5" Fixed Internal Drive Bays
- Ports: 2x USB 3.0 Ports (via header), 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
- Form Factor: 1U Rackmount
- Power Supply: 2000W 80 PLUS Platinum Level 1U Redundant Power Supply
- System Cooling: 9x 4cm Heavy Duty Counter-rotating Fans w/ Air Shroud & Optimal Fan Speed Control
- Front Panel:
- Buttons: Power On/Off, System Reset
- LEDs: Power, HDD Activity, 2x Network Activity, System Overheat/ Fan fail/ UID
- Color: Black
- Dimensions (WxDxH): 17.2 x 35.2 x 1.7 inch / 437.0 x 894.0 x 43.0 mm
- Gross Weight: 45.0 lbs / 15.9 kg
- RoHS Compliant
