Product Description
Specifications

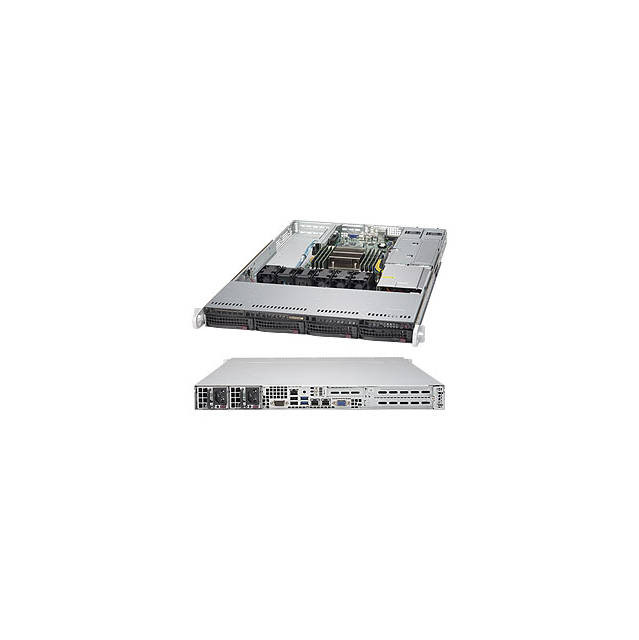

- Mfr Part Number: SYS-5018R-WR
- Motherboard: Super X10SRW-F
- Processors: LGA2011
- Supports Intel Xeon E5-2600/1600 v3 Family Processor
- Supports up to 18 Cores
- Cache up to 45MB
- Supports up to 145W TDP
- Chipset: Intel C612 Express
- Memory: 8x 288pin DDR4-2133/ 1866/ 1600/ 1333 DIMM Slots, Support up to 512GB ECC/Load Reduced Memory or up to 256GB ECC/REG Memory
- Slots: 2x PCI-E 3.0 x16 (Full-height, Full-length) Slots, 1x PCI-E 3.0 x8 (Low-profile, Half-length) Slot
- SATA: 4x SATA3 Ports, Support RAID 0, 1, 10; 5 supported under Windows
- Video: ASPEED AST2400 BMC Graphics
- LAN: Intel i350-AM2 Dual Port Gigabit Ethernet Controller
- Drive Bays: 4x 3.5" Hot-swap Drive Bays
- Backplane: SAS/SATA HDD Backplane
- Ports: 2x USB 3.0 Ports(2 rear), 2x USB 2.0 Ports (2 rear), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
- Form Factor: 1U Rackmount
- Power Supply: 500W 80 PLUS Titanium Certified high-efficiency (94%+) redundant power supplies w/ PMBus and I2C
- System Cooling: 4x 40x28mm 4-pin PWM Cooling Fans
- Front Panel:
- Buttons: Power On/Off, System Reset
- LEDs: Power, Hard Drive Activity, 2x Network Activity, System Overheat
- Color: Black
- Dimensions (WxDxH): 17.2 x 25.6 x 1.7 inch / 437.0 x 650.0 x 43.0 mm
- Weight: 23.5 lbs / 10.7 kg
- RoHS Compliant
