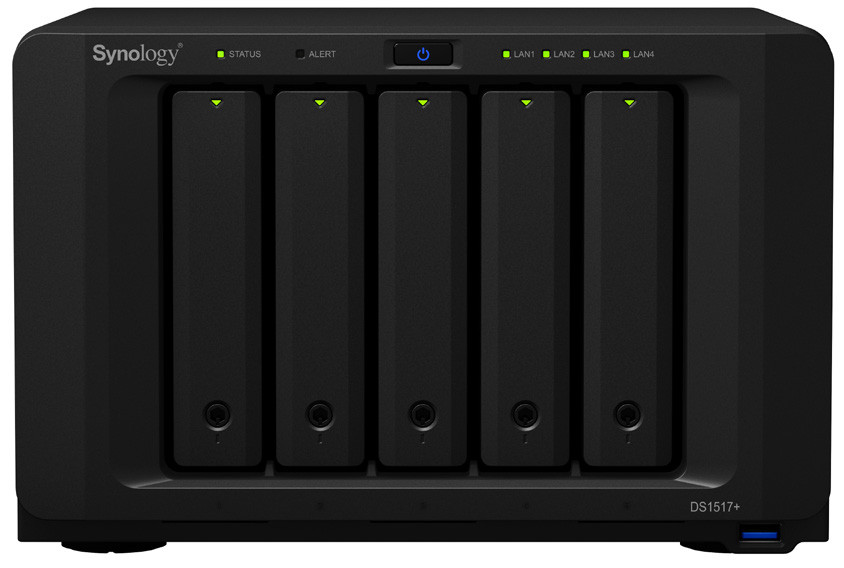

  • Synology DS1517+ NAS Desktop Ethernet LAN Black

    • Synology DS1517+ NAS Desktop Ethernet LAN Black

    US$1,259.97
    (You save US$315.00) US$1,574.97
    (No reviews yet) Write a Review
    Part Number #
    DS1517+ (8GB)
    Availability:
    In Stock
    Get Bulk Pricing
    Don't like the price? Make an offer!

    Product Description

    Storage
    Storage drives installedNo
    Installed storage drive typeNo
    Supported storage drive typesHDD, SSD
    Number of storage drives supported7
    Storage drive interfaceM.2, Serial ATA
    Storage drive size2.5/3.5"
    RAID supportYes
    Supported file systemsBTRFS,HFS+,NTFS,exFAT,ext3,ext4
    RAID levels0, 1, 5, 6, 10, JBOD
    Processor
    Thermal Design Power (TDP)15 W
    SteppingB0
    Processor threads4
    Processor socketBGA 1283
    Processor package size34
    Processor operating modes32-bit, 64-bit
    Processor lithography22 nm
    Processor codeSR1S9
    Processor cache typeL3
    Processor cache2 MB
    Physical Address Extension (PAE)36 bit
    PCI Express slots version2.0
    ECC supported by processorYes
    Maximum internal memory supported by processor64 GB
    Conflict Free processorNo
    Processor ARK ID77981
    Processor frequency2.4 GHz
    Processor familyIntel® Atom™
    Processor modelC2538
    Processor cores4
    Memory
    RAM capacity8 GB
    RAM typeDDR3
    Networking
    Ethernet LANYes
    Ethernet LAN data rates10,100,1000 Mbit/s
    Wi-FiNo
    Supported network protocolsCIFS, AFP, NFS, FTP, WebDAV, CalDAV, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP)
    iSCSI supportYes
    DHCP serverYes
    DHCP clientYes
    Ports & interfaces
    USB 3.0 (3.1 Gen 1) Type-A ports quantity4
    Ethernet LAN (RJ-45) ports4
    eSATA ports quantity2
    Hard drive
    RAID supportYes
    Supported file systemsBTRFS,HFS+,NTFS,exFAT,ext3,ext4
    RAID levels0, 1, 5, 6, 10, JBOD
    Software
    Operating system installedDiskStation Manager
    Design
    Cooling typeActive
    Fan diameter3.15" (8 cm)
    Colour of productBlack
    Number of fans2 fan(s)
    LED indicatorsYes
    Chassis typeDesktop
    Technical details
    TypeNAS
    Device classSmall & Medium Business
    Backup functionYes
    Colour of productBlack
    LED indicatorsYes
    Chassis typeDesktop
    Number of fans2 fan(s)
    Performance
    Mac compatibilityYes
    TypeNAS
    Device classSmall & Medium Business
    Backup functionYes
    Windows operating systems supportedWindows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
    Mac operating systems supportedMac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra
    Operating system installedDiskStation Manager
    Cooling
    Cooling typeActive
    Fan diameter3.15" (8 cm)
    Number of fans2 fan(s)
    Power
    Power supply locationBuilt-in
    AC input voltage100-240
    AC input frequency50/60
    Weight & dimensions
    Width9.84" (250 mm)
    Depth9.57" (243 mm)
    Height6.54" (166 mm)
    Processor special features
    UARTYes
    Physical Address Extension (PAE)Yes
    Maximum number of PCI Express lanes16
    Intel® Turbo Boost TechnologyNo
    Intel® Hyper Threading Technology (Intel® HT Technology)No
    Intel® AES New Instructions (Intel® AES-NI)Yes
    Intel VT-x with Extended Page Tables (EPT)Yes
    Intel Virtualization Technology (VT-x)Yes
    Intel QuickAssist TechnologyYes
    Intel 64Yes
    Graphics & IMC lithography22 nm
    Execute Disable BitNo
    Embedded options availableYes
    Memory channels supported by processorDual
    Memory types supported by processorDDR3-SDRAM,DDR3L-SDRAM
    System requirements
    Windows operating systems supportedWindows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
    Mac operating systems supportedMac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra
    Operational conditions
    Storage temperature (T-T)-20 - 60 °C
    Operating temperature (T-T)5 - 40 °C
    Operating relative humidity (H-H)5 - 95%
    Operating altitude0 - 120000" (0 - 3048 m)
