Product Description
Specifications

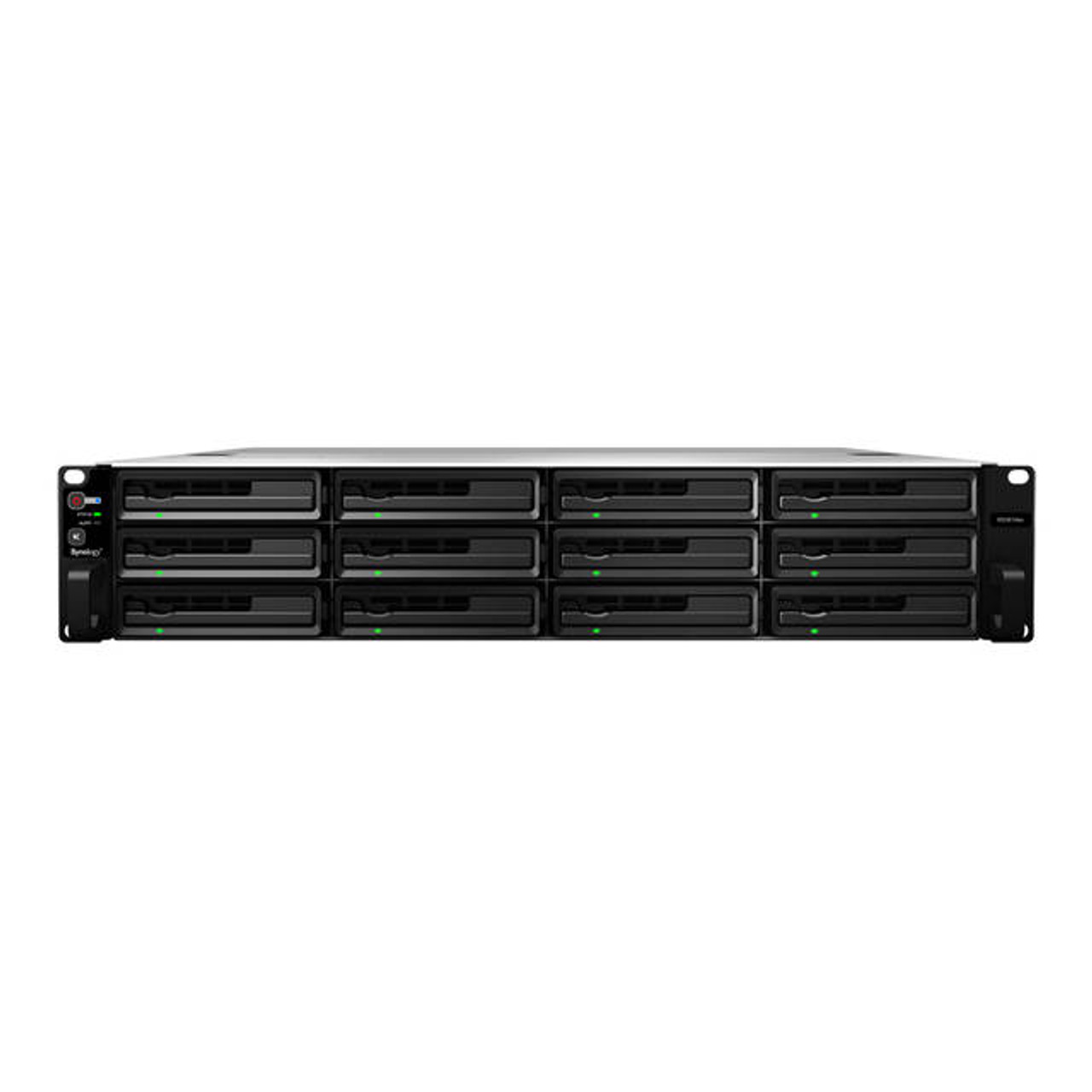

- Mfr Part Number: RS3614RPXS
- Hardware:
- CPU: Intel Core i3, Dual Core 3.4 GHz w/ Floating Point & Hardware Encryption Engine
- Memory: 4GB DDR3 ECC RAM (Expandable, up to 32GB)
- Internal HDD/SDD: 12x 3.5" or 2.5" SATA2/SATA3 HDD (Hard drive not included)
- Max Internal Capacity: 72TB (12x 6TB HDD) (Capacity may vary by RAID types)
- External HDD Interface: 2x USB 3.0 Ports, 2x USB 2.0 Ports, 2x Expansion Ports
- LAN: 4x Gigabit (Wireless Support - dongle)
- Wake on LAN/WAN
- Fan: 4x (80 x 80 mm) Fans
- Noise Level: 42.2 dB(A)
- Power Recovery
- Scheduled Power On/Off
- Power Supply Unit/Adapter: 2x 400W
- AC Input Power Voltage: 100 ~ 240 V AC
- Power Frequency: 50/60Hz, Single Phase
- Maximum Operating Altitude: 6,500 feet
- Networking Protocols: CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN)
- Security: FTP over SSL/TLS, IP Auto-Block, Firewall, Encrypted Network Backup over Rsync, HTTPS Connection
- File System:
- Internal: EXT4
- External: EXT4, EXT3, FAT, NTFS, HFS+
- File Sharing:
- Max User Accounts: 16000
- Max Groups: 512
- Max Shared Folder: 512
- Max Shared Folder Sync Tasks: 16
- Max Concurrent CIFS/ AFP/ Connections: 1024
- Windows Access Control List (ACL) Integration
- NFS Kerberos Authentication
- Utilities: Synology Assistant, Synology Data Replicator
- Applications:
- File Station: Virtual Drive, Remote Folder
- FTP Server: Bandwidth Control, Custom FTP Passive Port Range, Anonymous FTP, Transfer Log
- Mail Server: Supported Protocols - POP3, SMTP, IMAP
- Windows Phone Applications: DS audio, DS file, DS finder, DS photo+, DS vedio
- iOS/Android Applications: DS audio, DS cam, DS cloud, DS download, DS file, DS finder, DS photo+, DS video
- Web Station:
- Virtual Host (up to 30 websites)
- PHP / MySQL
- 3rd-Party Applications Support
- Printer Server:
- Max Printers: 2
- Printing Protocols: LPR, CIFS, IPP, iOS Printing, Google Cloud Print, Multi Functional Print, Server (MFP functions are for Windows PC only)
- Management:
- Auto DSM Upgrade
- Push Notification - MSN/Skype/Mobile Devices
- Email/SMS Notification
- Customized User Quota
- Customized Administrator/User Group
- Syslog Support
- DDNS Support
- IPv6 Support
- VLAN Support
- PPPoE
- Hotspot
- Resource Monitor
- Connection Manager
- UPS Management
- Scheduled Power On/Off
- Custom Management UI HTTP/HTTPS Ports
- Backup Solutions: Network Backup, Local Backup, Desktop Backup (Window - Synology Data Replicator; Mac - Apple Time Machine backup application), Shared Folder Sync (Max Task Number - 16), Configuration Backup
- Supported Clients: Windows XP or later, Mac OS X 10.5 or later, Ubuntu 9.04 or later
- Power Consumption: 158W (Access); 67.4W (HDD Hibernation)
- Certifications: FCC Class A, CE Class A, BSMI Class A
- Dimensions (WxDxH): 445.0 x 570.0 x 88.0 mm
- Weight: 15.4 kg
- Package Contents: Main Unit, Welcome Note, Accessory Pack, 2x AC Power Cords
- RoHS Compliant
