Product Description

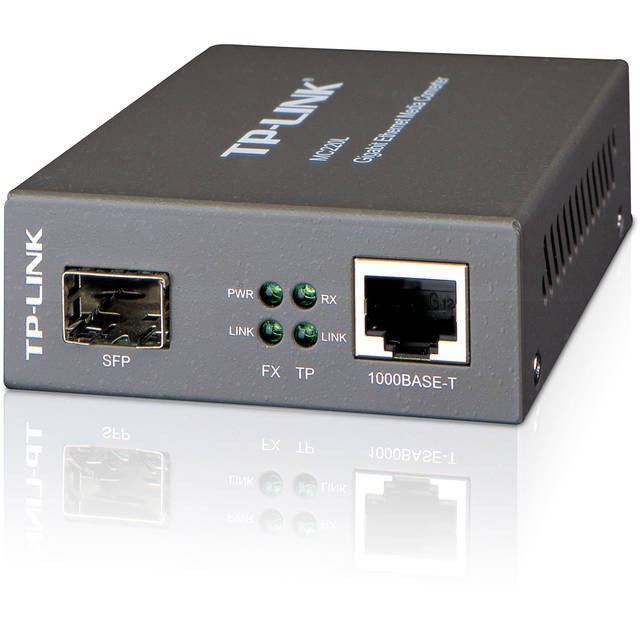

Specifications- Mfr Part Number: TL-MC220L
- Features:
- Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
- Supports auto MID/MID-X for TX port
- Provides switch configuration of Force /Auto transfer mode for FX port
- FX port support hot-swappable
- Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber
- Easy-to-view LED indicators provide status to monitor network activity easily
- External power supply
- Standards and Protocols: IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
- Ports: 1x Gigabit SFP Port; 1x 1000M RJ45 Port (Auto MDI/MDIX)
- Basic Function:
- Full Duplex Flow Control (IEEE 802.3x)
- Extends fiber distance up to 0.5km using 50/125um fiber
- Network Media:
- 1000BASE-T: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100ë© STP (maximum 100m)
- 1000BASE-FX: Multi-mode/Single-mode Fiber
- Power Supply: External Power Adapter
- LED Indicators: PWR, LINK, RX
- Safety & Emission: FCC, CE
- Dimensions (WxDxH): 3.7 x 2.9 x 1.1 inch / 94.5 x 73.0 x 27.0 mm
