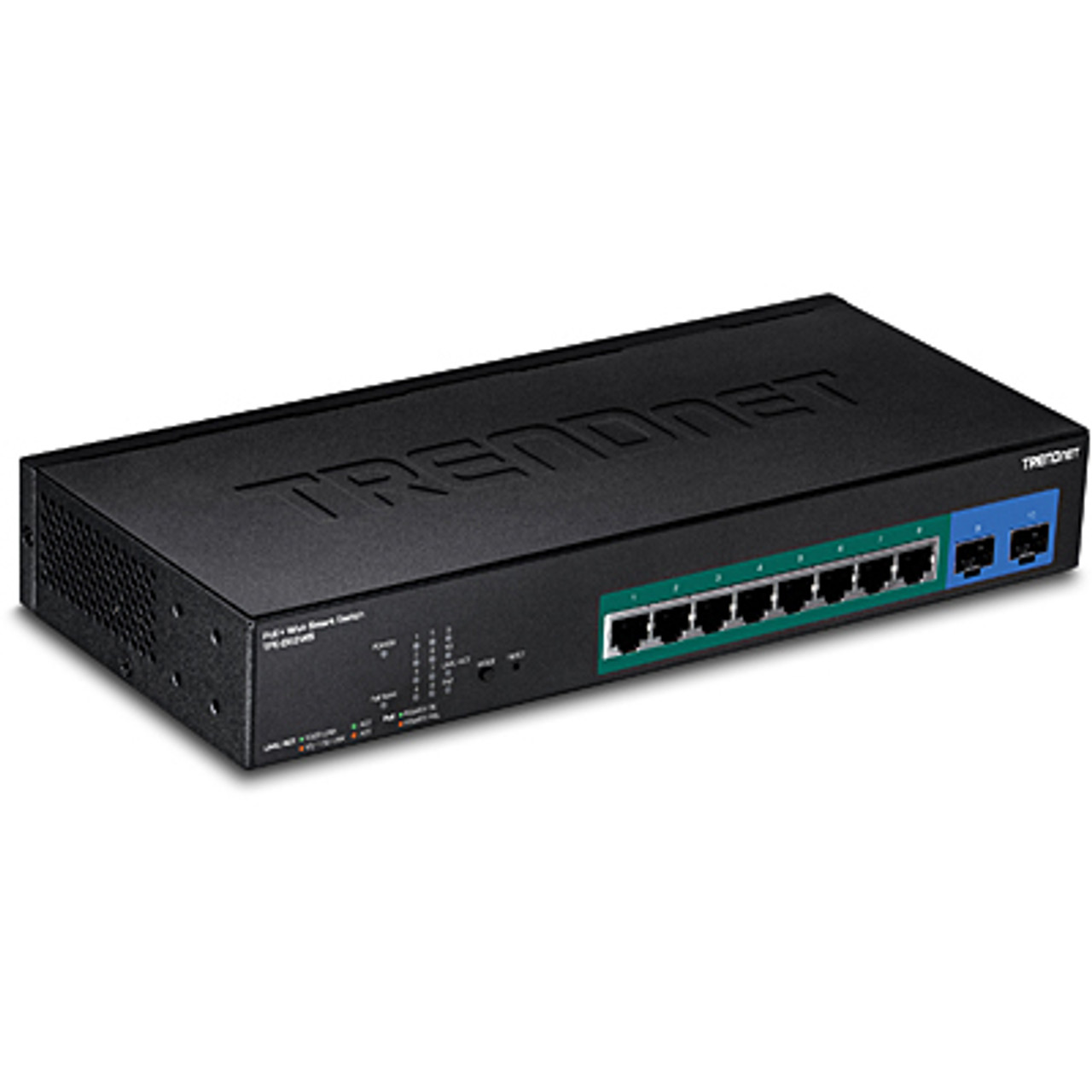

Trendnet TPE-082WS Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black network switch

Specifications
Manufacturer: TRENDnet
Manufacturer Part Number: TPE-082WS
Manufacturer Website Address: http://www.trendnet.com
Brand Name: TRENDnet
Product Model: TPE-082WS
Product Name: 10-Port Gigabit Web Smart PoE+ Switch
Marketing Information:

• 8 x Gigabit PoE+ ports
• 2 x SFP slots
• 75W PoE power budget
• Easy-to-use web-based management interface
• Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping
• Bandwidth control per port
• Private and Voice VLAN support
• 20Gbps switching capacity
• IEEE 802.1p QoS with queue scheduling support
• Fanless rack mountable metal housing

TRENDnet's 10 Port Gigabit Web Smart PoE+ Switch, model TPE-082WS, delivers advanced management features with a 20Gbps switching capacity. This fanless rack mountable IPv6 ready switch comes with an intuitive web-based interface. Advanced traffic management controls, troubleshooting, and SNMP monitoring support make this a powerful solution for SMB networks. The TPE-082WS provides eight gigabit PoE+ ports with a total power budget of 75W, and two dedicated SFP slots for fiber applications. The PoE+ standard supplies up to 30W of power per port for devices such as high power wireless access points, PTZ (Pan Tilt Zoom) Internet cameras, and VoIP telephony systems.

Web Smart Management
Provides an easy-to-use web-based GUI management for reduced switch configuration complexity and offers a combination of SMB management features for easy deployment.

Integration Flexibility
Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.

PoE Power
A 75W PoE power budget supplies up to eight Power over Ethernet devices. Hardware Design Provides eight gigabit PoE+ ports, two SFP slots, a 20Gbps switching capacity, a built-in power supply, and rackmount brackets.

Hardware Design
Provides eight gigabit PoE+ ports, two SFP slots, a 20Gbps switching capacity, a built-in power supply, and rackmount brackets.

PoE Power
Supplies up to 30W of PoE+ power per port with a 75W power budget

IPv6 Ready
This switch supports IPv6 configuration and IPv6 neighbor discovery.

Traffic Management
A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling.

Troubleshooting
A convenient cable diagnostic test and traffic statistics aid in network troubleshooting

Access Control
Features such as ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS are compatible with layered access controls

Monitoring
RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions

Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 10
Uplink Port: No
Modular: Yes
Stack Port: No
Port/Expansion Slot Details:

• 8 x Gigabit Ethernet Network
• 2 x Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Ethernet Technology: Gigabit Ethernet
Network Technology:

• 1000Base-T
• 1000Base-X

I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP
Shared SFP Slot: No
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: No
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7"
Width: 23.3 ft
Length: 11"
Weight (Approximate): 2.03 lb
