Product Description
Manufacturer: Tripp Lite
Manufacturer Part Number: B020-U08-19-IP
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Line: NetDirector
Product Model: B020-U08-19-IP

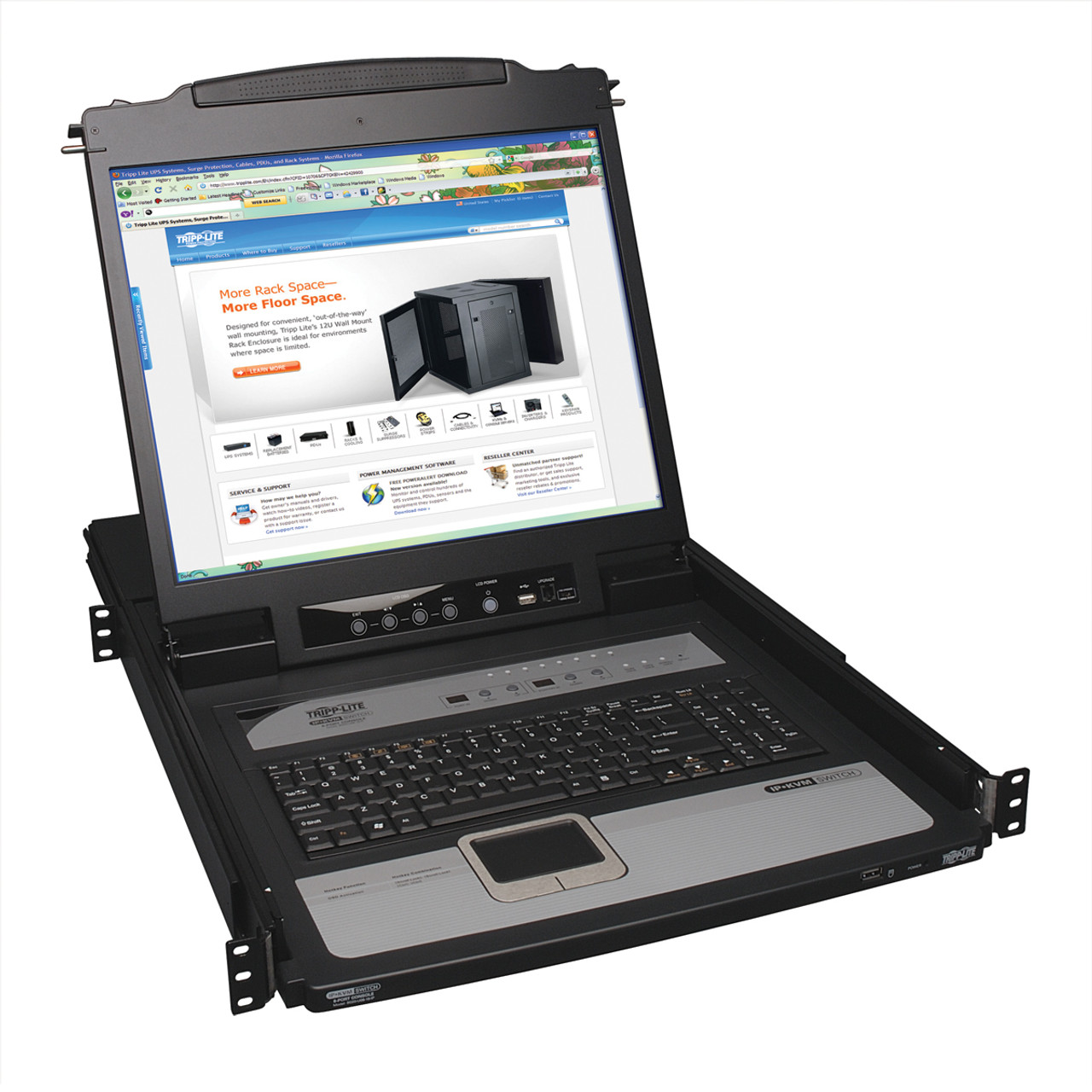

Product Name: 8-Port NetDirector 1U Rackmount Console IP KVM Switch w/19" LCD
Marketing Information: Tripp Lite's B020-U08-19-IP KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. From across the room, down the street or halfway around the globe, the B020-U08-19-IP can be accessed from any computer on the LAN, WAN or Internet. Easy to install and use, it's the optimal solution for controlling up to 8 computers/servers. Increase the number of connected computers up to 256 by daisy-chaining up to 31 B022-U08 KVM switches.
The B020-U08-19-IP has a built-in 19" LCD screen that supports video resolutions up to 1280 x 1024 @ 75Hz, with remote monitor resolutions up to 1600 x 1200 @ 60Hz. You can switch easily between the 8 ports using on-console push buttons, an on-screen display (OSD) or keyboard hot key commands. Up to 64 users can be authorized with any combination of admins and users. Multi-level security enhances protection of data and equipment.
This switch controls PS/2 or USB computers/servers using a P778-Series Combo KVM Cable Kit (two cable kits are included). A USB port on the front of the keyboard lets you connect an external mouse, plus an external USB 1.1 port means you can add a peripheral that can be shared across all connected servers. When not in use, the B020-U08-19-IP stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use.
Product Type: LCD Rack Console
Technical Information
KVM Switch: Yes
KVM Technology: Digital
Number of Computers Supported: 8
Device Type: LCD Rack Console
Display & Graphics
Screen Size: 19"
Display Screen Type: LCD
Screen Mode: SXGA
Screen Resolution: 1280 x 1024
Input Devices
Keyboard: Yes
Pointing Device Type: TouchPad
Interfaces/Ports
USB: Yes
Number of USB Ports: 2
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Physical Characteristics
Color: Black
Material: Steel
Rack Height: 1U
Height: 1.7"
Width: 18.9"
Depth: 27"
Weight (Approximate): 31 lb
Miscellaneous
Platform Supported:
- PC
- Mac
Environmentally Friendly: Yes
Environmental Certification:
- RoHS
- WEEE
