Product Description

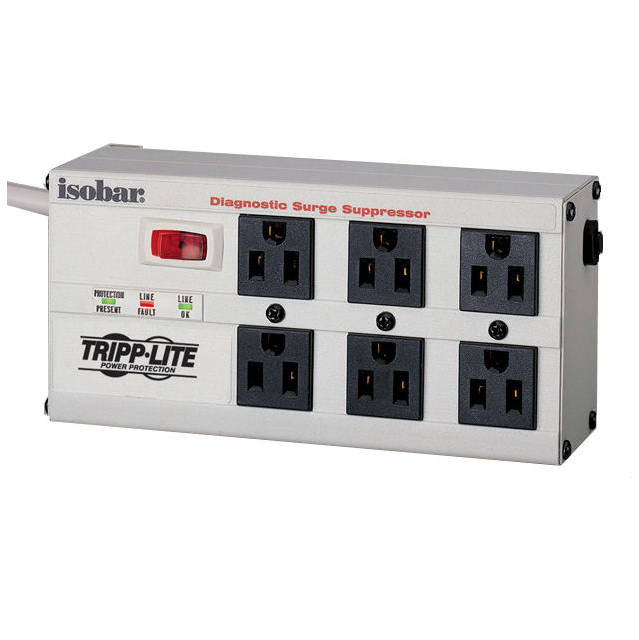

Specifications- Mfr Part Number: ISOBAR6 ULTRA
- Voltage compatibility: 120 VAC
- Frequency compatibility: 50/60 Hz
- Output:
- Output volt amp capacity: 12 A
- Output watt capacity: 1440 W
- Outlet quantity / type: 6x NEMA 5-15R
- Transformer accomodation: Supports upto 4 large transformer plug accessories without covering remaining outlets
- Input:
- Input connection type: NEMA 5-15P input plug
- Input cord length: 6 ft. / 1.8m
- Recommended electrical service: 120V (110~125V)
- LEDS Alarms & Switches:
- Diagnostic LEDs: PROTECTION PRESENT (green), LINE FAULT (red) and LINE OK (green)
- Switches: Two position red illuminated on/off power switch
- Ac Surge / Noise Suppression:
- Protection modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
- AC suppression joule rating: 3330 joules
- Clamping voltage (RMS): 140 V
- AC suppression response time: NM = 0 ns. CM = <1 ns
- AC suppression surge current rating: 97,000 amps (36,000 NM / 61,000 CM)
- AC suppression components used: Metal oxide varistors, toroidal balanced chokes, ferrite rod-core inductors and VHF capacitors
- Safe thermal fusing: Prevents unsafe conditions during extreme extended overvoltages and catastrophic occurences
- UL1499 let through rating: 330V - UL Verified
- IEEE587 Cat. A ringwave let through: Less than 35 volts
- EMI / RFI filtering: 40~80 dB
- Isolated filter banks: Unique isolated filter bank design offers additional filtering between each duplex pair of outlets on the strip to prevent electrical noise interference between connected loads. Includes 2 filter banks
- Immunity: Conforms to IEE 587 / ANSI C62.41
- Certifications:
- UL1449 1998 Rev. (AC Suppression): UL1449
- UL1283 (EMI Filter): UL1283
- UL1363 (Power Tap): UL1363
- cUL / CSA (Canada): cUL
- Approvals: Exceeds IEEE 587 category A&B specifications
- Appearance: Rugged all-metal corded strip format with high quality duplex receptacles
- Material of construction: Metal
- Integrated keyhole mounting tabs: Metal end caps are fitted with keyhole mounting tabs for wallmount installation
- Housing color: Gray
- Receptacle color: Black
- AC line cord color: Gray
- Dimensions (WxDxH): 9 x 3.5 x 2.5 inch
- Weight: 2.18lbs
