Product Description
Specifications

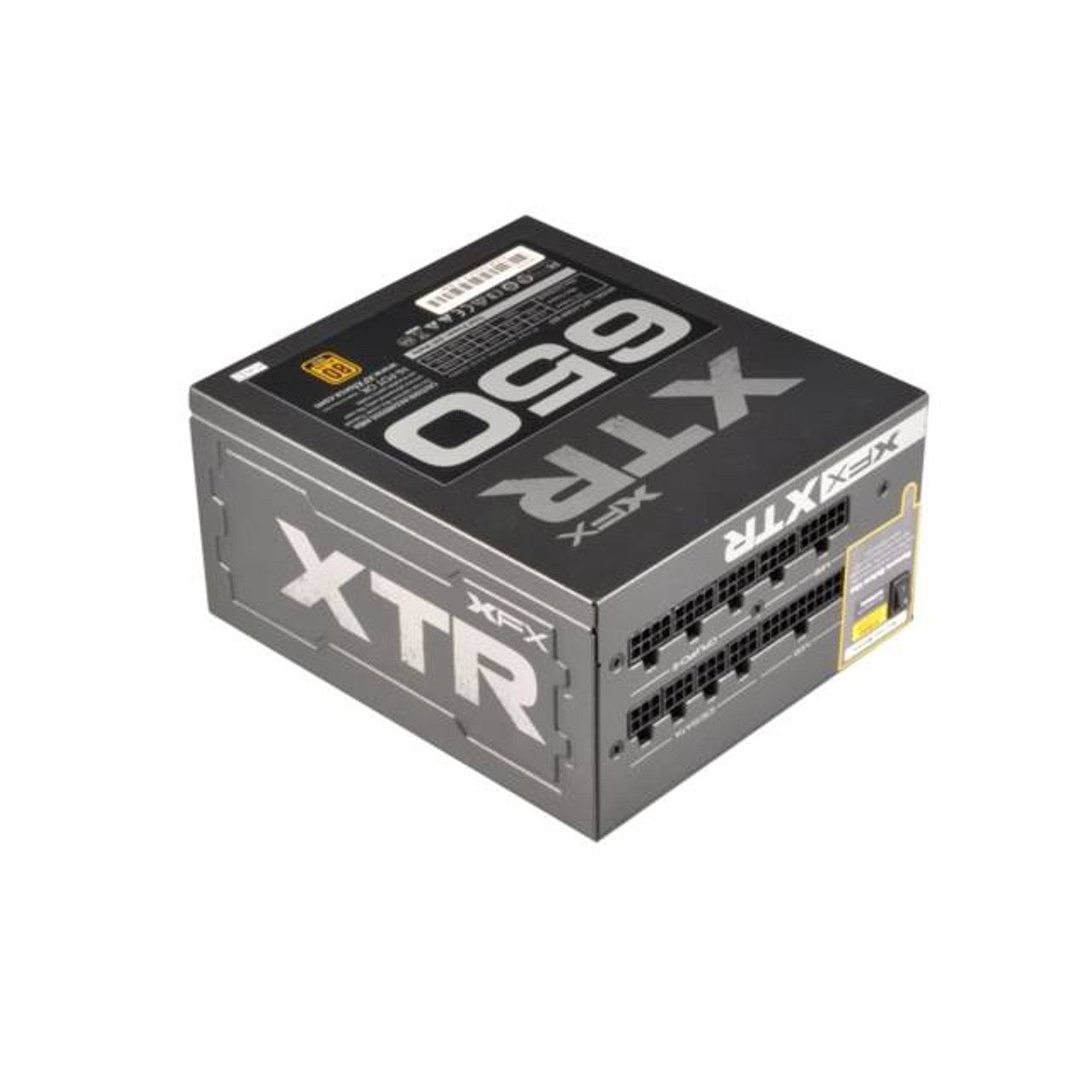

- Mfr Part Number: P1650BBEFX
- Features:
- EasyRail Plus Technology allowing plenty of wattage headroom to handle your devices
- Hybrid Fan Control allowing the power supply to operate silenty until it reaches 20% load or 25°C
- Ultra Quiet Fan Design
- Ultra Voltage Regulation Design
- Haswell Ready
- AMD Radeon CrossFire Ready
- NVIDIA GeForce SLI Ready
- Multiple PCI-E 6-Pin and 6+2Pin connectors
- True Wattage guarantee
- 80 Plus Gold certifying 90% power efficiency
- Extreme heat tested capacitors
- Type: ATX12V & EPS12V
- Maximum Power: 650W
- Input:
- Voltage: 100 - 240 V AC
- Current: 4.5A - 9.5 A
- Frequency Range: 50 - 60 Hz
- Output: +3.3V @ 20A, +5V @ 20A, +5VSB @ 2.5A, +12V @ 54A, -12V @ 0.3A
- Connectors: 1x 20+4pin Motherboard Connector, 1x 4+4pin ATX12V/EPS12V Connector, 1x 8pin EPS12V GPU Connector, 4x 6+2pin PCI-Express Connectors, 10x SATA Connectors, 6x Peripheral Connectors, 1x Floppy connectors
- Cooling: 135mm Fluid dynamic Fan
- Active PFC: Yes
- Efficiency: Up to 90%
- Energy-Efficiency: 80 PLUS Gold Certified
- Protection: Over Current, Over Power, Over Temperature, Over Voltage, Short Circuit, Under Voltage
- Dimensions(WxDxH): 12.55 x 6.42 x 8.26 inch / 31.9 x 16.3 x 21.0 cm
- Weight: 7.05 lb / 3.2 kg
