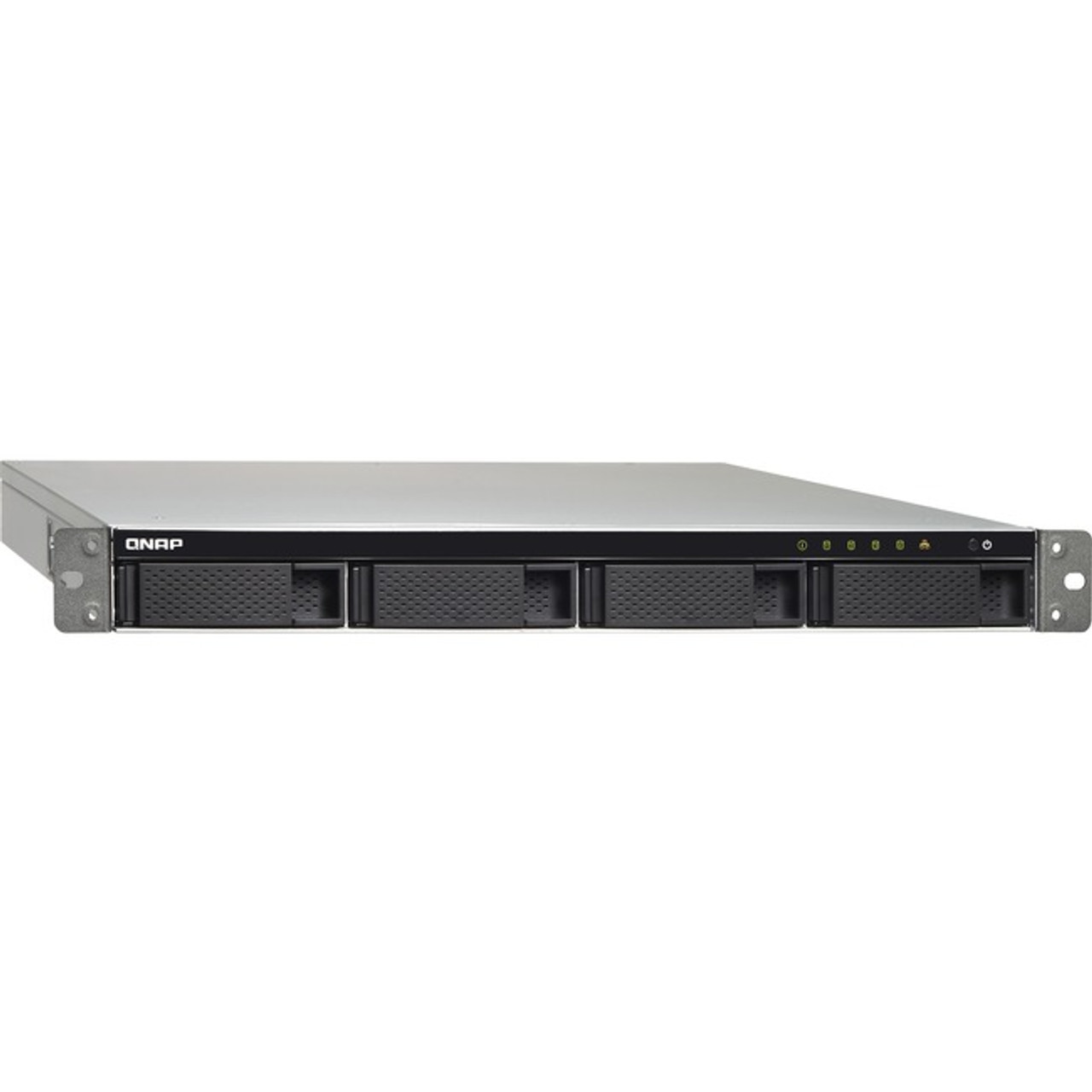

QNAP Turbo NAS TS-453BU SAN/NAS Storage System - TS-453BU-4G-US

Specifications
Manufacturer: QNAP Systems
Manufacturer Part Number: TS-453BU-4G-US
Manufacturer Website Address: http://www.qnap.com
Brand Name: QNAP
Product Line: Turbo NAS
Product Series: TS-x53BU
Product Model: TS-453BU
Product Name: Turbo NAS TS-453BU SAN/NAS Storage System
Marketing Information:

The TS-453BU is a 1U rackmount NAS that easily fits into a standard 19-inch rack, providing an ideal storage solution in the server room for small and medium businesses. The TS-453BU comes with a PCIe slot for boosting potential applications: the QNAP QM2 expansion card can be installed to add an M.2 SSD cache/10GbE connectivity, a compatible wireless card can be installed to use the TS-453BU as a wireless access point, and a USB 3.1 10Gbps card can be added for easier backup to/from multiple external storage. The TS-453BU also provides a wide range of value-added features: 4K video playback and real-time transcoding; deployment of virtual environments through Virtualization Station and Container Station; centralized management of remote Windows®, Linux® and IPMI-compatible devices with QRM+; and web automation services with IFTTT Agent.

• PCIe slot supports installing a QNAP QM2 dual-port M.2 SSD/10GbE card, a compatible wireless adapter, or a USB 3.1 10Gbps card.
• Supports dual-channel 4K H.265/H.265 hardware decoding and on-the-fly or offline transcoding
• Qfiling automates file organization and Qsirch provides full-text search for easier file management
• QRM+ enables centralized management of remote Windows®, Linux® and IPMI-compatible devices.
• A hybrid approach to virtualization in one NAS: Virtualization Station and Container Station
• Scalable storage space with VJBOD and UX-1200U-RP/UX-800U-RP expansion enclosures

Intel® Celeron® J3455 quad-core 1.5GHz CPU with AES-NI Encryption

Powered by the latest 14 nm Intel® Celeron® J3455 quad-core 1.5GHz processor (burst up to 2.3 GHz), up to 8GB DDR3L RAM, four Gigabit LAN ports, and SATA 6Gb/s, the TS-453BU runs tasks smoothly and quickly with up to 369 MB/s read/ write speeds. The TS-453BU features Intel® AES-NI accelerated encryption to drive transfer speeds of up to 336 MB/s with AES 256-bit encryption for both full NAS volumes and shared folders, boosting system performance while ensuring the confidentiality of sensitive business data stored in the NAS.

Extend NAS functionality with PCIe expansion

The TS-453BU has a PCIe expansion slot, providing flexibility in extending NAS functionality and potential applications. Install a QNAP QM2 card to provide M.2 SSD caching/10GbE connectivity, or use the TS-453BU as a wireless access point by installing a compatible wireless network card, or boost the USB connectivity of the TS-453BU by installing a USB 3.1 10Gbps card.

QM2 expansion card redefines NAS function

QNAP's QM2 is a PCIe expansion card that features dual M.2 SSD slots and 10GbE connectivity* (individual cards may vary in functionality). This allows users to easily set up SSD caching or to enable Qtier auto-tiering technology to optimize NAS performance. 10GbE-compatible models can also future proof the TS-453BU for use with 10GbE networks. Equipped with a dedicated cooling module, the QM2 can maintain its high performance even when tasked with the highest workloads.

SSD cache acceleration

The TS-453BU supports SSD caching. Users can install an SSD in drive bay 1 and bay 2 to boost IOPS performance of storage volumes. It is perfect for improving the overall workflow of IOPS-demanding applications and allows the best of both cost and performance by combining SSDs with HDDs. Coupled with Qtier™ auto-tiering technology (which now supports "On Demand Allocation Priority"), users can customize storage allocation to best suit their system environment and application demands.

Product Type: SAN/NAS Storage System
Storage
Number of Hard Drives Supported: 4
Number of Solid State Drive Supported: 4
Flash Memory Capacity: 4 GB
Processor & Chipset
Processor Manufacturer: Intel
Processor Type: Celeron
Processor Model: J3455
Processor Core: Quad-core (4 Core)
Processor Speed: 1.50 GHz
Memory
Standard Memory: 4 GB
Memory Technology: DDR3L SDRAM
Network & Communication
Ethernet Technology: Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 4
Number of Total Expansion Slots: 1
Expansion Slot Type: PCI Express
Controllers
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, Hot Spare, JBOD
Interfaces/Ports
HDMI: Yes
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 4
Network (RJ-45): Yes
Software
Operating System: QTS 4.3
Management & Protocols
Protocols:

• DNS
• Telnet
• DLNA
• IPv6
• FTPS
• WEBDAV
• SSL/TLS
• AFP
• CIFS
• HTTPS
• FTP
• DHCP
• SSH
• SMB
• SMTP
• FXP
• LDAP
• iSCSI
• IPv4
• UPnP
• TCP/IP
• PPTP
• HTTP
• CIFS/SMB
• DDNS
• SNMP
• RSync

Power Description
Maximum Power Supply Wattage: 350 W
Physical Characteristics
Height: 1.7"
Width: 17.3"
Depth: 19.6"
Form Factor: Rack-mountable
Rack Height: 1U
Weight (Approximate): 16.82 lb
Miscellaneous
Country of Origin: Taiwan
